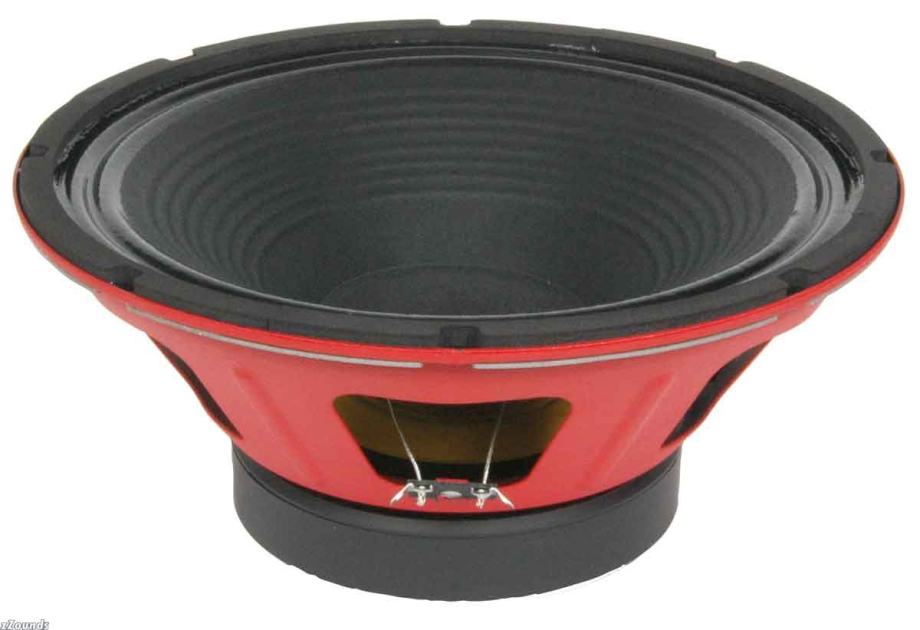

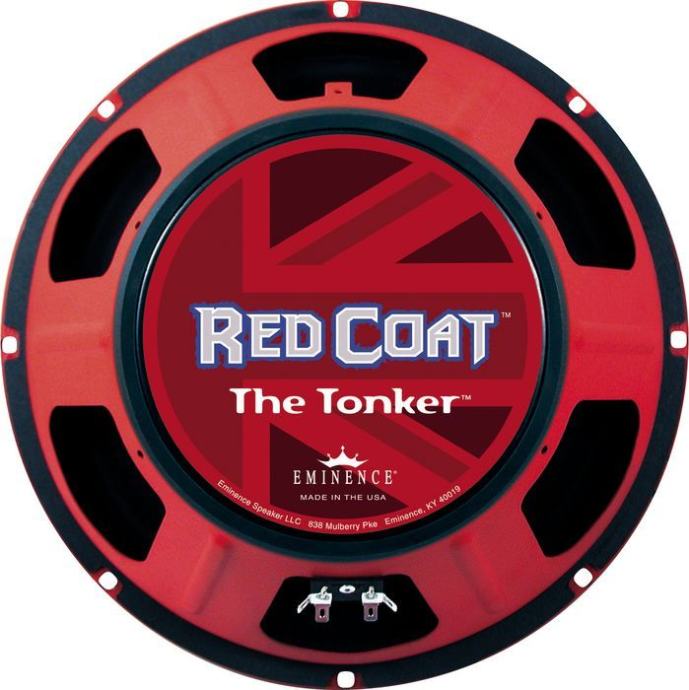

Zamjenski driver zvučnika Eminence THE TONKER

SPECIFICATION Nominal Basket Diameter 12", 304.8mm Nominal Impedence* 8 ohms Power Rating** Watts 150W Music Program N/A Resonance 89Hz Usable Frequency Range 70Hz - 5.5kHz Sensitivity*** 102dB Magnet Weight 59 oz. Gap Height 70Hz - 5.5kHz Voice Coil Diameter 0.31", 7.92mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 89Hz DC Resistance (Re) 7.36 Coil Inductance (Le) 0.47mH Mechanical Q (Qms) 10.02 Electromagnetic Q (Qes) 0.49 Total Q (Qts) 0.47 Compliance Equivalent Volume (Vas) 34.1 liters / 1.2 cu.ft. Peak Diaphragm Displacement Volume (Vd) 42cc Mechanical Compliance of Suspension (Cms) 0.09mm/N BL Product (BL) 17.4 T-M Diaphragm Mass Inc. Airload (MMs) 36 grams Efficiency Bandwidth Product (EBP) 181 Maximum Linear Excursion (Xmax) 0.8mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume Sealed Acceptable Vented Acceptable Driver Volume Displaced 137.3 cu.in. / 2.25 liters Overall Diameter 12.02", 305.3mm Baffle Hole Diameter 10.97", 278.6mm Front Sealing Gasket Fitted as standard Rear Sealing Gasket Fitted as standard Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.63", 295.4mm Depth 5.2", 132mm Net Weight 11.1 lbs, 5 kg Shipping Weight 13.2 lbs, 6 kgs MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

Cijena za gotovinsko plaćanje: 999,00 HRK

Ukoliko živite u blizini grada Zagreba, pozivamo Vas da navratite u naš dućan koji se nalazi iza Mcdonaldsa na Krugama, adresa Cvijete Zuzorić 7, te da sami isprobate naše proizvode!

Za ostale informacije javite nam se, ili posjetite našu web stranicu player.hr
