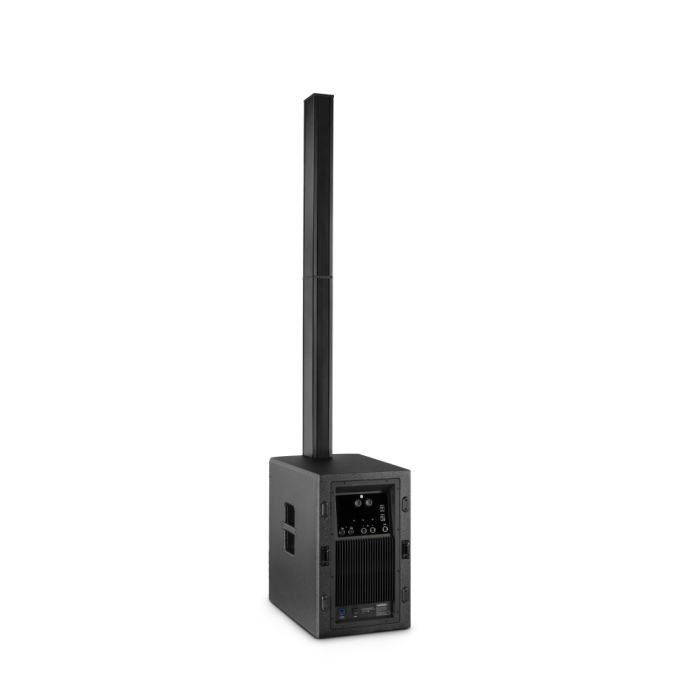

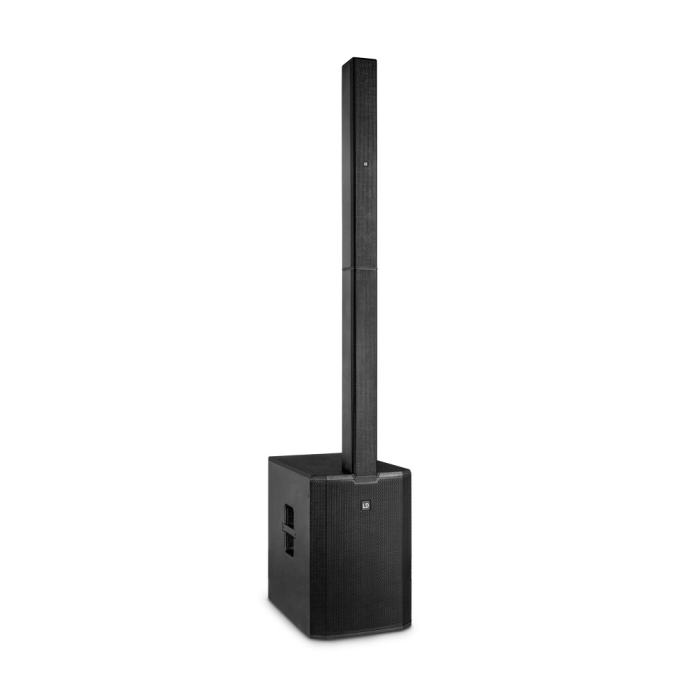

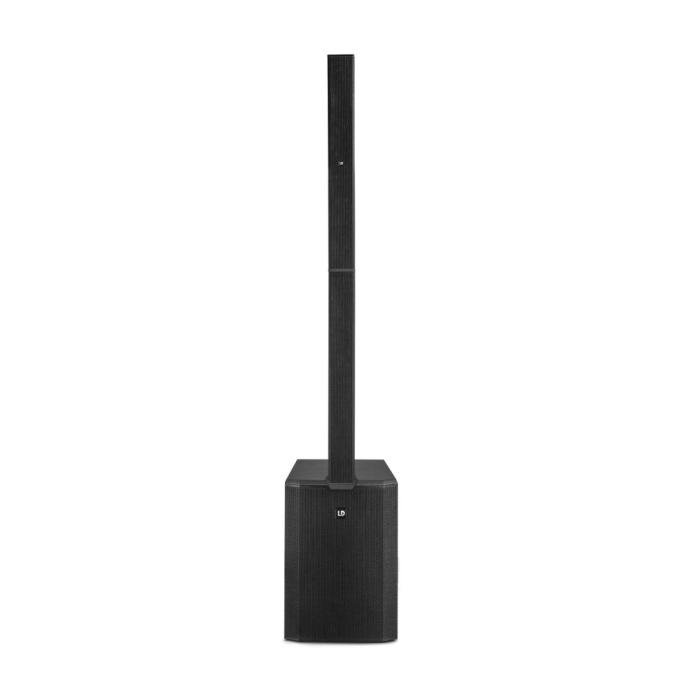

LD Systems MAUI® 44 G2

LD Systems MAUI® 44 G2 - Professional column PA system with 1500 W RMS and 132 dB max. SPL

CIJENA NA UPIT

Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)

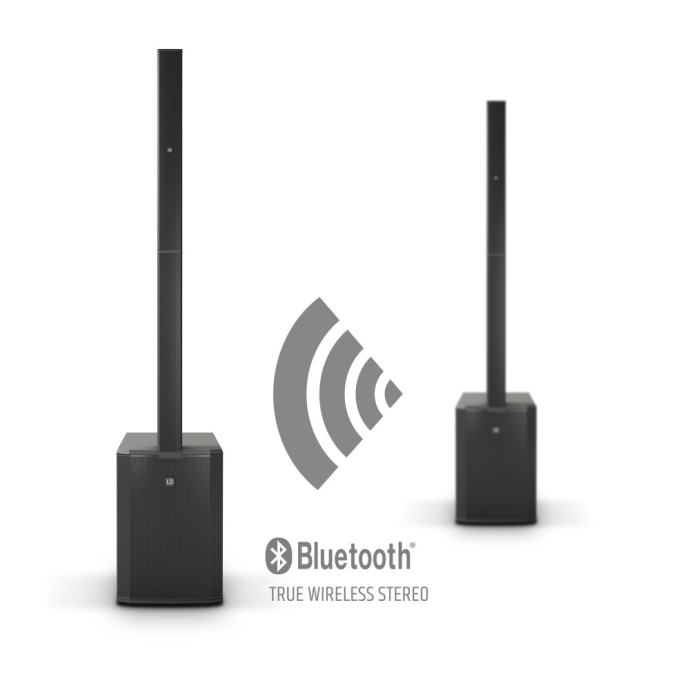

TrueWireless™ stereo technology for wireless stereo pairing of two column systems
aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
DynX® DSP technology for distortion-free sound at maximum volume
Automatic setup detection

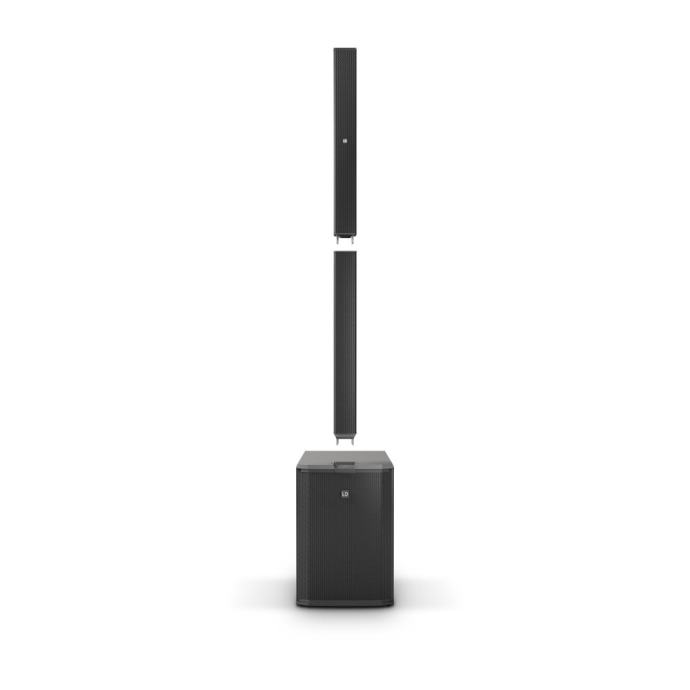

Fast and simple assembly without stands or cables

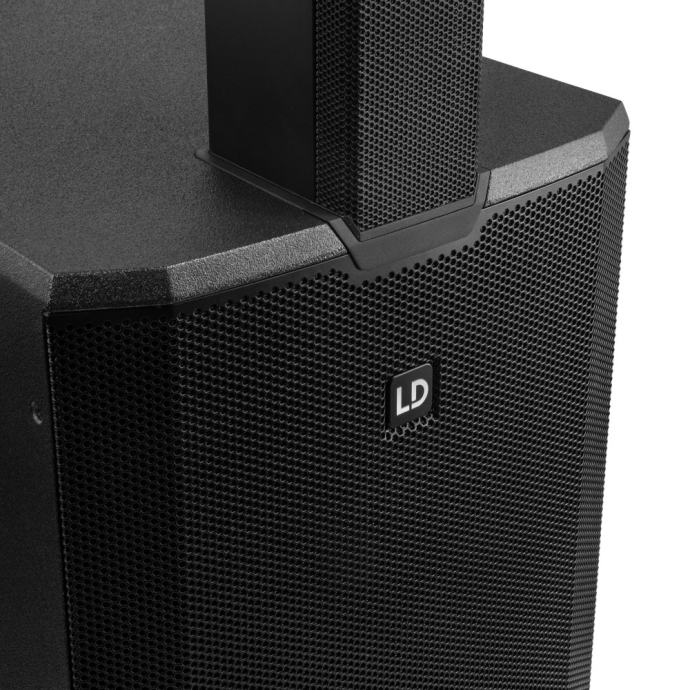

Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column


Specifications:

General:
Product type: PA Complete Systems
Type: Powered
Color: Black
Max. SPL (peak): 132 dB
Frequency response: 37 - 20000 Hz
Dispersion (H x V): 120 x 25 °
Total Height: 2256 mm
Weight: 47,6 kg
Features: Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

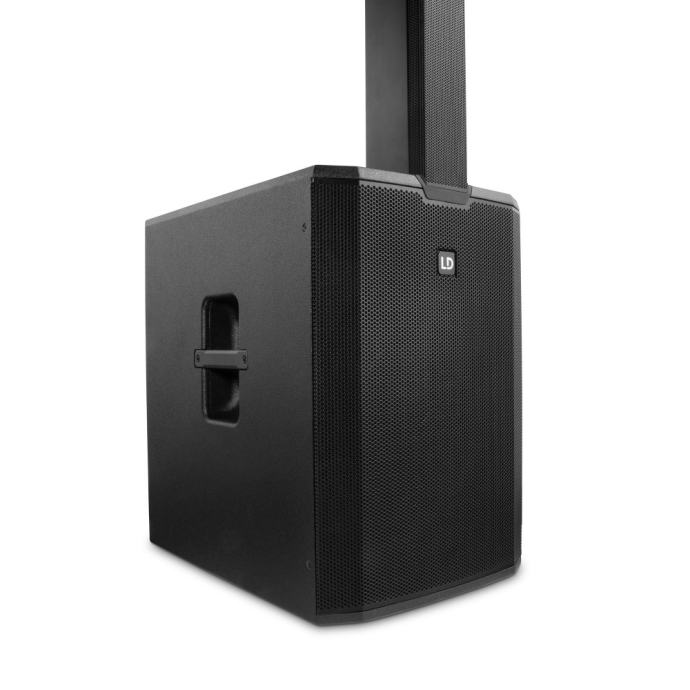

Subwoofer:
Woofer dimensions: 15 "
Woofer size: 381 mm
Woofer magnet: Neodymium
Woofer brand: Custom-made
Woofer voice coil: 4 "
Woofer voice coil (mm): 101 mm
Cabinet construction: Bass Reflex
Housing material: 15 mm Birch Plywood, 18 mm Birch Plywood
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 434 x 634 x 637 mm
Subwoofer weight: 36.4 kg

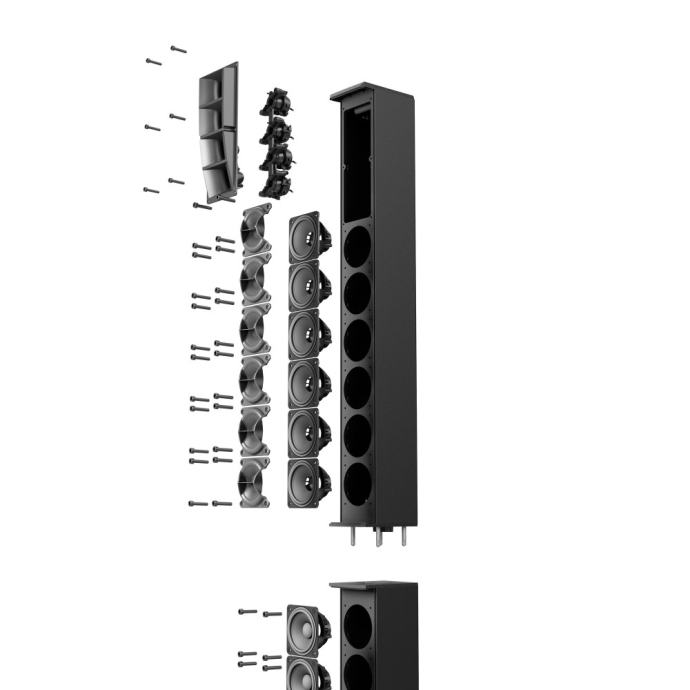

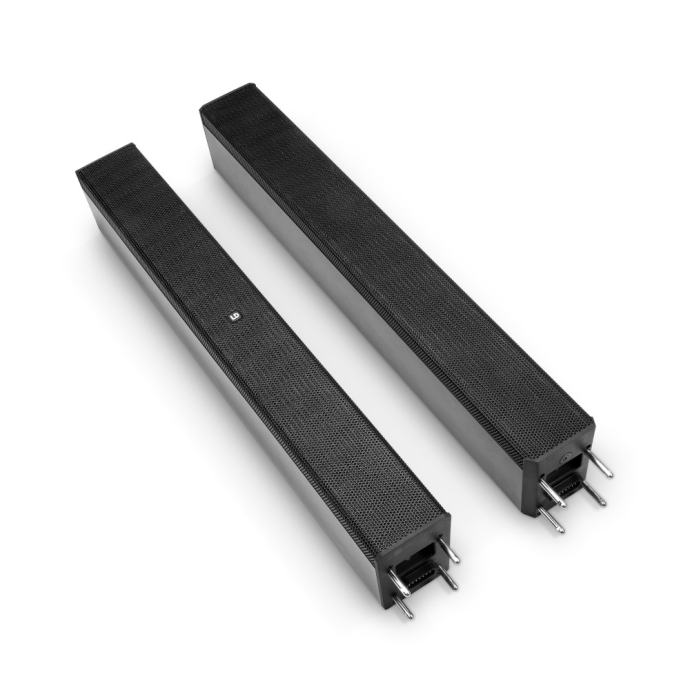

Mid/Hi System:
Midrange size: 12 x 3,5 "
Midrange size: 12 x 89 mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1 "
Midrange voice coil: 25.4 mm
Tweeter dimensions: 4 x 0.5 "
Tweeter dimensions (mm): 12.7 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Wave Guide: CD Waveguide
Loudspeaker inputs: 1

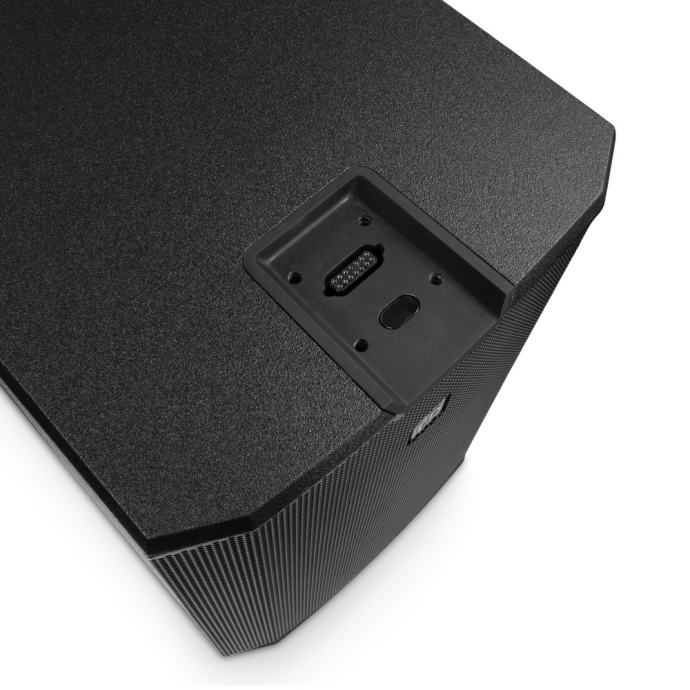

Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: Aluminium
Mid/Hi system cabinet surface: HD coated aluminum, multi layer mesh (cloth)
Mid/Hi system width: 103 mm
Mid/Hi system height: 1621 mm
Mid/Hi system depth: 135 mm
Mid/Hi system weight: 11.2 kg

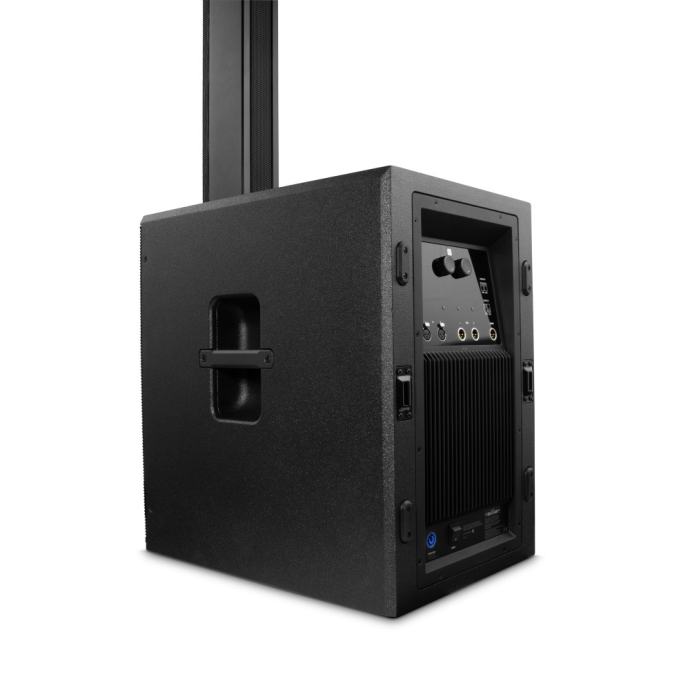

Amplifier module (integrated in subwoofer):
Amplifier: Class D
System output (RMS): 1500 W
Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
Cooling: Convection

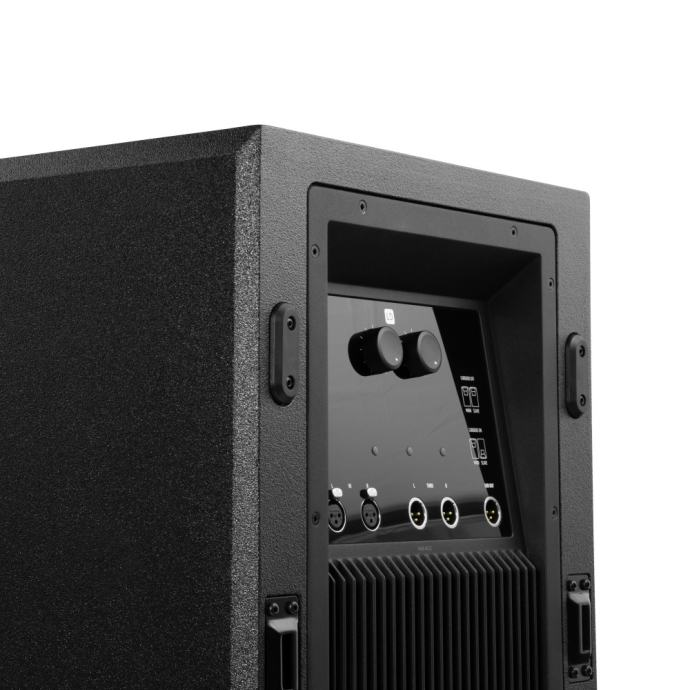

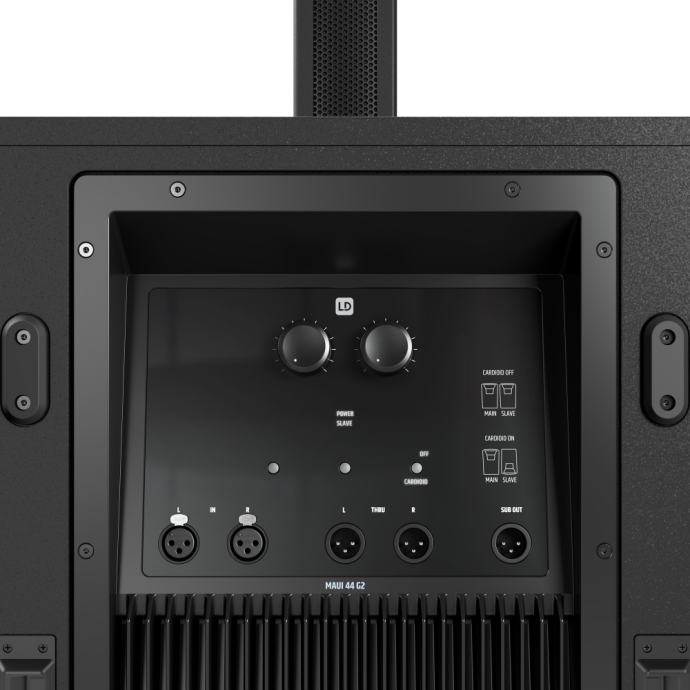

Controls: Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Indicators: Bluetooth, Bluetooth STEREO LINK, Cardioid On/Off, Limit, Power, Protect (protection circuit engaged), Signal, slave mode, Subwoofer Mode

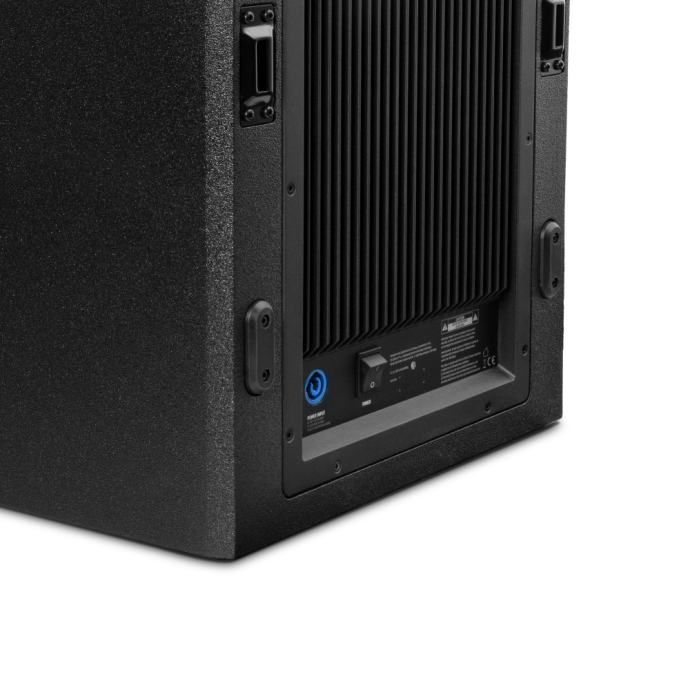

Mains connector: Neutrik PowerCon
Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Ambient temperature (operating): 0 - 40 °C
Relative Humidity: < 80% (non-condensing)
Line Inputs: 2
Line Input Connectors: XLR female
Line Outputs: 2
Line Output Connectors: XLR male
Number of speaker outputs: 1
Loudspeaker Output Connectors: Custom-made multipin
Bluetooth Standard: A2DP
Bluetooth Audio Decoder: AAC, aptX, SBC

DSP characteristics:
Bit depth AD/DA converter: 24 bit
Sampling frequency: 48 kHz
Signal-to-noise ratio: 106 dB
