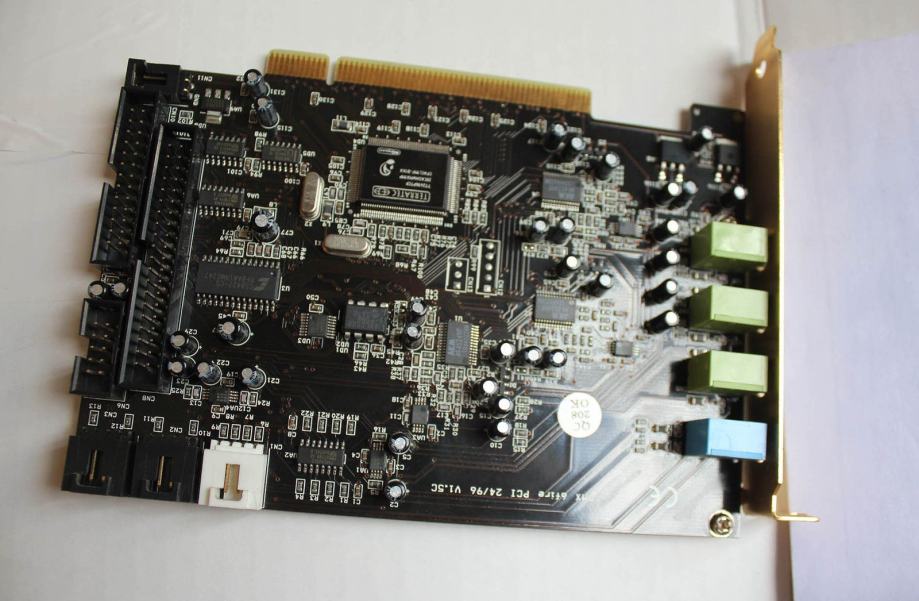

Terratec Dmx 6fire 24/96 Profesionalna zvučna kartica

Home studio owners will particularly appreciate four analog inputs and six analog outputs, designed for the standard cinch, not to mention I/O (optical and coaxial). With a signal-to-noise ratio of 114 dB, crystal-clear sound is a matter of course. The microphone jack (an XLR combo jack), with switched 48 V phantom power, a -20 dB pad switch and separate gain control, provides professional, top-quality recording. Instruments such as guitars and basses also have their own separately adjustable inputs. A MIDI port and headphone output complete the selection of connections.

DJ´s simply connect the turntables to the phono jack (with preamp). The monitor level control makes it possible to pre-listen to the tracks. Convenient: The plugs for the microphone (plug or XLR, with adapter for miniplug) and the headphone are side-by-side. This allows you to plug in a headset with ease.

Also the gamer will find this feature useful, along with the 5.1 surround sound, of course. And when the game has lost its lustre, the DMX 6Fire USB can also convert stereo signals into a sound similar to a 5.1 signal.

Whether in die studio, die night-club or in front of a gamer´s computer: the new DMX 6Fire USB is a perfect companion everywhere.

Features
• USB 2.0 audio system
• 1 microphone input with gain control (combo XLR / 6,3 mm jack)
• 48V phantom power
• 20 dB pad switch
• 1 instrument input with gain control (6,3 mm jack)
• 4 analog inputs (cinch)
• 1 phono input (RCA cinch) with a RIAA equalizer and gain control
• 6 analog outputs (cinch)
• Stereo to 5.1 surround-expander
• 1 headphone jack (6,3 mm) with separate volume controller
• 1 optical digital input/output (TOS link)
• 1 coaxial digital input/output (cinch)
• 1 MIDI interface In/Out (5-pin DIN)
• 24 bit / 192 kHz A/D converter with 114 dB (A) SNR* (input 1/2)
• 24 bit / 192 kHz A/D converter with 105 dB (A) SNR* (input 3/4)
• 24 bit / 192 kHz A/D converter with 114 dB (A) SNR* (input 1-6)
* dependent on the converter used

Software
• WDM driver for Windows
• Control panel for Windows
• ASIO 2.0 support
• Driver for MAC OS X (32 Bit)
• Control panel for MAC OS X (32 Bit)
• Algorithmix Sound Rescue

System requirements
• 2,0 GHz Intel or AMD CPU (Windows) / MAC computer with Intel processor
• 1 GB RAM
• 1 free USB 2.0 port
• Windows XP SP3 (32 Bit) / Windows Vista SP2 (32/64 Bit) / Windows 7 SP1 (32/64 Bit)
Windows 8 (32/64 Bit) / MAC OS X 10.6.x / 10.7.x / 10.8.x / 10.9.x / 10.10.x
• Internet connection for driver and software download

Scope of delivery
• Power supply
• USB cable
• 1 Adaptor (6,3 mm -> 3,5 mm mono)
• 1 Adaptor (6,3 mm -> 3,5 mm stereo)
• Quick setup guide
• Service card
