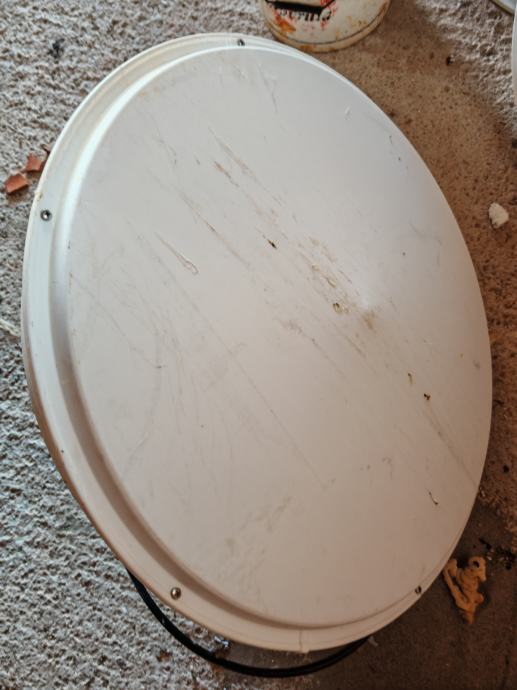

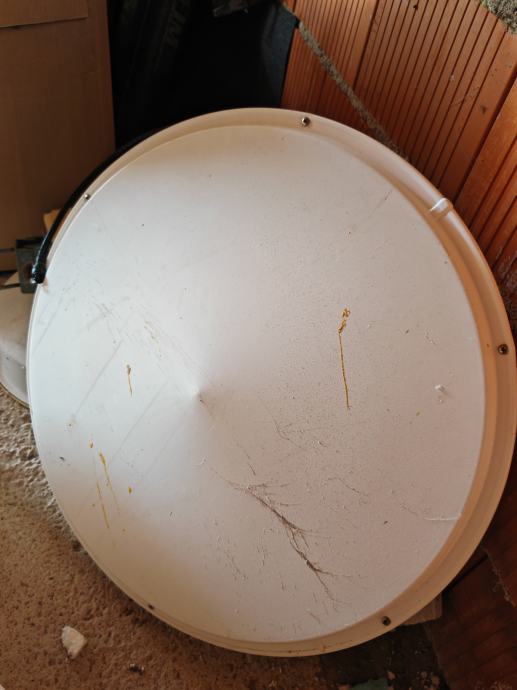

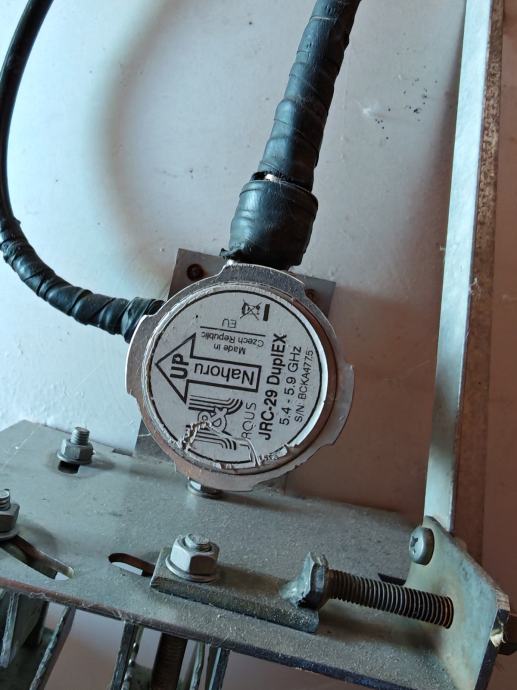

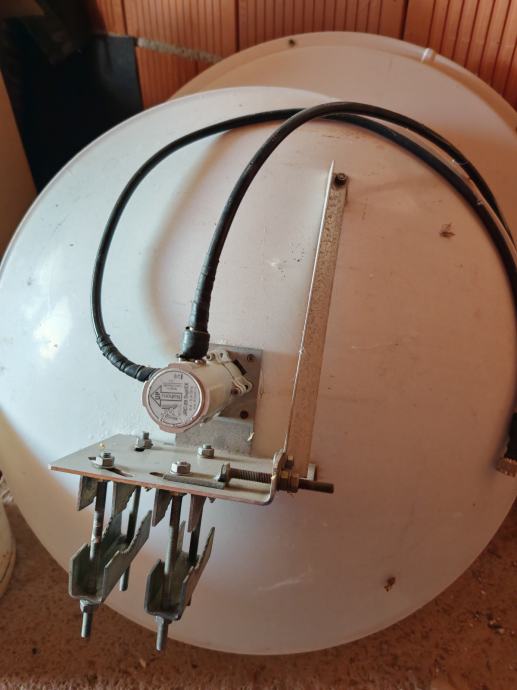

Parabolic antena Jirous JRC-29 MIMO
- Cijena
- 100 €
+ zaštita kupca 4,00 €
+ dostava od 0,00 €
Kupi uz besplatnu BOX NOW dostavu
Jednostavno i sigurno kupi uz Google i Apple Pay
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 45503866
Osnovne informacije
- Lokacija
- Istarska, Barban, Draguzeti
- Stanje
- rabljeno
Opis oglasa
Specification:
dual-polarized antenna, horizontal and vertical polarization
easy to use with GentleBOX JR-200
keenly priced
only 1 antenna instead 2 save money for mast!
high front to back ratio
direction links for long and medium distance, also short in difficult conditions
cleint antenna for large distances and difficult conditions
setting elevation (of gradient) and azimuth has independent adjustment
you can count attainable distance from section of calculation
radom (plastic parabola cover) for each antenna free!
Technical parameters
Frequency range 5,4 - 5,9 GHz
Gain 28,6 ±0,6dBi
VSWR ≤ 1,5
Front to back ratio ≥ 42 dB
Beamwidth-3 dB 5,8°
Polarization linear, horizontal and vertical
Isolation between connectors 28dB
Connector N - Female - JRC-29 MIMO
R-SMA - JRC-29 MIMO-SMA
Parabola ø 65 cm
aluminium alloy with baking colour
Cover UV steady plastic ABS
Instalation for mast ø 27 - 74 mm
https://en.jirous.com/antenna-5ghz-parabolic/jrc-29_mimo
dual-polarized antenna, horizontal and vertical polarization
easy to use with GentleBOX JR-200
keenly priced
only 1 antenna instead 2 save money for mast!
high front to back ratio
direction links for long and medium distance, also short in difficult conditions
cleint antenna for large distances and difficult conditions
setting elevation (of gradient) and azimuth has independent adjustment
you can count attainable distance from section of calculation
radom (plastic parabola cover) for each antenna free!
Technical parameters
Frequency range 5,4 - 5,9 GHz
Gain 28,6 ±0,6dBi
VSWR ≤ 1,5
Front to back ratio ≥ 42 dB
Beamwidth-3 dB 5,8°
Polarization linear, horizontal and vertical
Isolation between connectors 28dB
Connector N - Female - JRC-29 MIMO
R-SMA - JRC-29 MIMO-SMA
Parabola ø 65 cm
aluminium alloy with baking colour
Cover UV steady plastic ABS
Instalation for mast ø 27 - 74 mm
https://en.jirous.com/antenna-5ghz-parabolic/jrc-29_mimo
