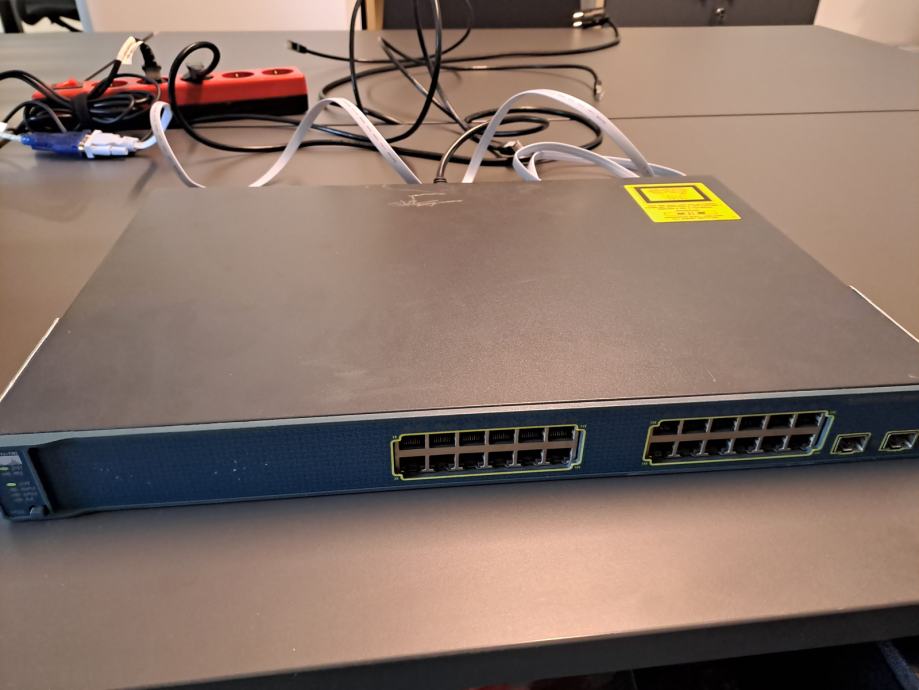

Cisco Switch WS-C3560-24PS-S - 24 Port PoE

Prodajem Cisco Catalyst 3560 24 port POE switch.
Potpuno ispravno. Malo korišteno, unutar labosa.
Bez oštećenja.

Performance

32 Gbps forwarding bandwidth
Forwarding rate based on 64-byte packets:
6.5 Mpps (Cisco Catalyst 3560-24PS)
128 MB DRAM
16 MB Flash memory
Configurable up to 12,000 MAC addresses
Configurable up to 11,000 unicast routes
Configurable up to 1000 IGMP groups and multicast routes
Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports
Connectors and Cabling

10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
10BASE-T PoE ports: RJ-45 connectors, two-pair Category 3, 4, or 5 UTP cabling power pins 1,2 (negative) and 3,6 (positive)
100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling
100BASE-TX PoE ports: RJ-45 connectors, two-pair Category 5 UTP cabling, power on pins 1,2 (negative) and 3,6 (positive)
1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, four-pair Category 5 UTP cabling
1000BASE-SX, -LX/LH, -ZX, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber)
Cisco Catalyst 3560 SFP Interconnect Cable: two-pair shielded cabling, 50 cm
Management console port: RJ-45-to-DB-9 cable for PC connections; for terminal connections, use RJ-45-to-DB-25 female data-terminal-equipment (DTE) adaptor (can be ordered separately from Cisco; part number ACS-DSBUASYN=)

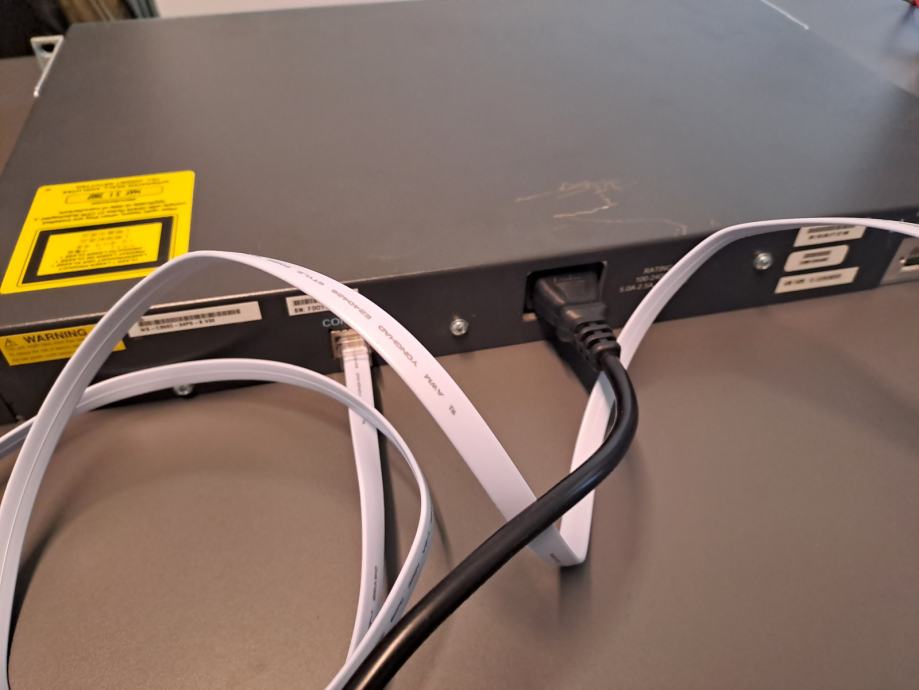

Power Connectors

Customers can provide power to a switch by using either the internal power supply or the Cisco RPS 2300. The connectors are located at the back of the switch.
Note: The Cisco Catalyst 3560-8PC and Catalyst 3560-12PC do not have an RPS port.
Internal-Power-Supply Connector
The internal power supply is an autoranging unit.
The internal power supply supports input voltages between 100 and 240 VAC.
Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Cisco RPS Connector
The connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
The connector supports up to six external network devices and provides power to two failed devices at a time.
The connector automatically senses when the internal power supply of a connected device fails and provides power to the failed device, preventing loss of network traffic.
Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundantpower-supply receptacle.
Indicators

Per-port status LEDs: Link integrity, disabled, activity, speed, full-duplex indications, PoE applied, PoE error, and PoE disabled indications
System-status LEDs: System, RPS, link status, link duplex, link speed, and PoE indications
Dimensions (H x W x D)

Cisco Catalyst 3560-24PS: 1.73 x 17.5 x 11.8 in. (4.4 x 44.5 x 30 cm)
Weight

Cisco Catalyst 3560-24PS: 11.3 lb (5.1 kg)
