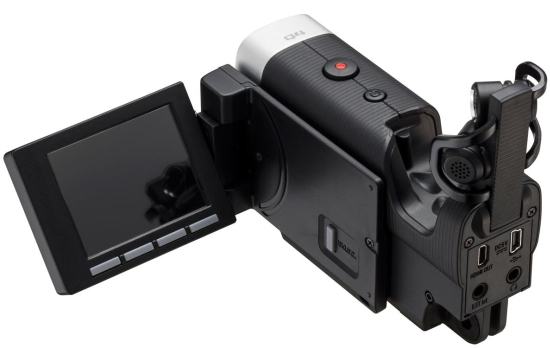

ZOOM Q4

novo..

prodaja@provox.hr

Definitive Sound. Singular Vision.

The Zoom Q4 is all about bringing a new dimension to your music.
It combines high-definition video with high-resolution audio,
providing everything you need to shoot amazing videos with incredible sound.
That means you'll never have to compromise on creativity.

The Sound Behind The Scenes

Without sound, our creations would fall flat. The Q4 delivers audio nuance and quality that far surpass that of any other video camera. Its built-in X/Y microphone allows you to create stunning stereo recordings that cover a wide area while still capturing sound sources in the center with clarity and definition.

High-Resolution Audio meets

Zoom products have long set the gold standard for portable audio. The all-new Q4 redefines the state of the art in portable video.

Professional videographers understand that the sound is as important as the scene. It’s not enough to capture the sound of the ocean; you have to be able to feel the water bubbling beneath your feet. The Q4 delivers exactly that kind of experience. Its unique blend of high-resolution 24-bit/96k audio with high-definition 1080p video means never having to compromise on quality.


X/Y Stereo Recording

The Q4's wide angle X/Y microphone incorporates two matched unidirectional elements—mics that are especially sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides. The convenient placement of the mic enables the supplied windscreen to be easily attached, allowing you to use the Q4 even on difficult outdoor shoots. In addition, a built-in low-cut filter can be used to reduce low-frequency noise, allowing you to capture great sound both indoors and outdoors.


High-Resolution Perspective

The Q4’s versatile and flexible design challenges video creators to push themselves to the limit. Compact yet compatible with standard tripod and three prong action camera mounts, the Q4 can go anywhere. Its wide-angle lens and choice of video formats and frame rates allow the Q4 to record sharp, detailed images in any situation, and its full-color rotating LCD—which can be detached during shooting for portability and extended battery life—provides a clear preview of each moment you capture.

Recording Media SD/SDHC/SDXC card (up to 128GB)
Imaging Device 1/3-inch 3-megapixels CMOS sensor
Optics Lens Fixed Focus (55cm to infinity), F2.8,
Focal distance about 22 mm (35 mm equivalent)
Video Format MPEG-4 AVC / H.264（MOV）
Video Resolution HD1080p 30fps, HD720p 60fps, HD720p 30fps, WVGA 60fps, WVGA 30fps
Audio Format WAV (Quantization: 16/24bit, Sampling Frequency: 44.1/48/96kHz)
AAC (Bit Rate: 64 to 320kbps, Sampling Frequency: 48kHz)
Audio Functions Lo-cut filter, Auto Gain (Concert / Solo / Meeting)
Image Functions Angle of view adjustment, Scene selection (Auto / Concert Lighting / Night)
Display 2.0" full-color LCD (detachable)
Built-in mic X/Y stereo format (120°)
Maximum sound pressure input: 130dB SPL
Input gain: +7dB to +47dB
Input connector Combined line/mic stereo mini jack （can supply plug-in power）
Input gain: +0dB to +26dB
Output connector Combined line/headphones stereo mini jack
Type D microHDMI
Built-in speaker 400mW 8Ω, monaural speaker
USB Mini B type （USB2.0 High Speed）, USB-VIDEO, USB-AUDIO functions
Power Lithium-ion battery: DC 4.2V maximum voltage, DC 3.7V nominal voltage, 1050mAh capacity
AC adapter (ZOOM AD-17, sold separately): DC 5V/1A
USB bus power
Battery recharging times USB: About 3 hours
AC adapter: About 2 hours 15 minutes
Battery Life 3 hours (when recording 720p/30fps video with LCD unit detached)
Dimensions Recorder: 106.4 (W) x 57.8 (H) x 30.4 (D) mm (with X/Y mic stored)
LCD unit: 73.6（W） x 48.4（H） x 40.1（D） mm
Weight Recorder: 167g (without battery)
LCD unit: 51g
Included accessories Removable LCD unit, USB cable, Rechargable lithium ion (Li-Ion) battery (BT-02), Hairy windscreen, Hairy windscreen attachment screw, User guide
Optional accessory Rechargable lithium ion (Li-Ion) battery (BT-02)
