RME 9632 HDSP

RME karta, novija serija. Dolazi sa standardnim/fabrickim kablovima.
RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.
The HDSP 9632 provides unique features:

Balanced stereo analog in- and output, 24-Bit/192kHz, > 110 dB SNR
Optional analog expansion boards with 4 balanced in- or outputs
All analog I/Os capable of 192 kHz, constant number of available channels
1 ADAT digital I/O, supporting 96 kHz S/MUX operation
1 SPDIF digital I/O, 192 kHz-capable
1 Breakout cable for coaxial SPDIF*
Up to 16 I/Os can be used simultaneously!
1 Stereo headphone output, parallel to the analog out, additional level settings
1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
DIGICheck, RMEs unique metering- and analysing tool
HDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware
TotalMix: 512 channel Mixer with 40 Bit internal resolution

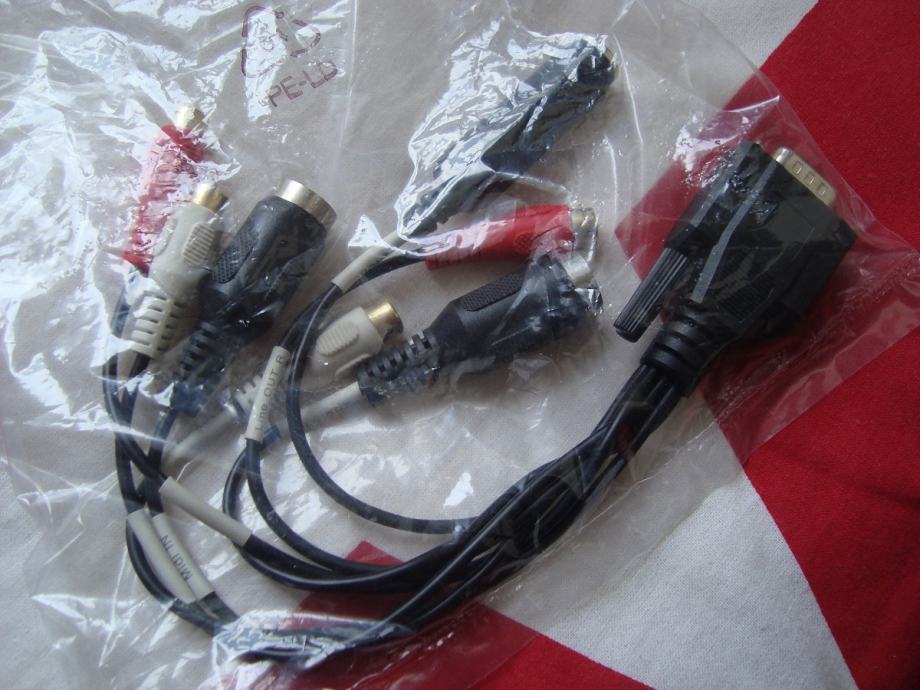

* The HDSP 9632 ships in a basic version including two RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os and the SPDIF I/O are unbalanced. XLR breakout cables are available as an option (headphone: Neutrik TRS locking jack), turning analog and AES/EBU into balanced mode.

HDSP 9632 debuts SteadyClock (TM), a newly developed clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.

Compared to the well-known DIGI96/8 series, the HDSP 9632 not only offers a further improved analog interface, but also all the features of the award-winning Hammerfall DSP series: All inputs and outputs simultaneously available, MIDI I/O and TotalMix, the DSP-based real-time mixer/router. Hardware updates through software and driver updates are risk-free thanks to the Secure BIOS Technology.

In short: The HDSP 9632 is the ultimate audio interface for PC or Mac, digital or analog.
Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz

8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms

All settings changeable in real-time

Automatic and intelligent master/slave clock control

Enhanced Mixed mode: All inputs and outputs simultaneously operational

TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode

Unique status windows for record and playback, showing mode and sample rate

DIGICheck, RMEs unique metering and analysing tool

Digital inputs and outputs ground-free transformer coupled

3-stage hardware level control for analog inputs and outputs

Balanced analog input and output, DC-coupled signal path

192 kHz / 24-Bit converters. SNR 110 dB RMS unweighted, 113 dBA

Maximum input and output level (0 dBFS @ HiGain): +19 dBu

Low impedance headphone output (75 ohm), stepless output level through software faders

Headphone Speaker Protection minimizes noise during power on/off

All inputs and outputs simultaneously operational

Super low jitter design: < 1 ns in all clock modes
