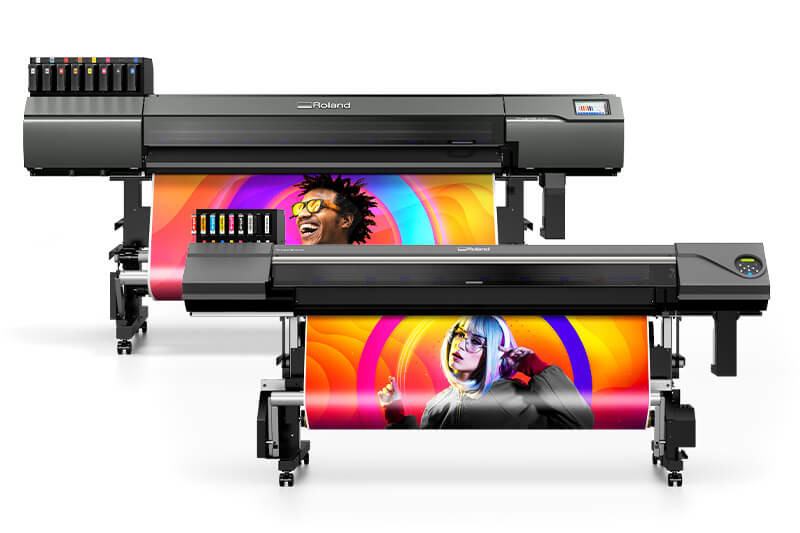

Roland-TrueVIS – MG-300 i MG 640 UV-printer- Leasing

Roland-TrueVIS – MG-300 i MG 640 UV-printer

Roland-TrueVIS – MG-300 UV-printer: 15.600,00€ + PDV
Roland-TrueVIS – MG 640 UV-printer: 18.500,00€ + PDV
*U cijenu nisu uračunate boje.
*Cijene su bez PDV-a

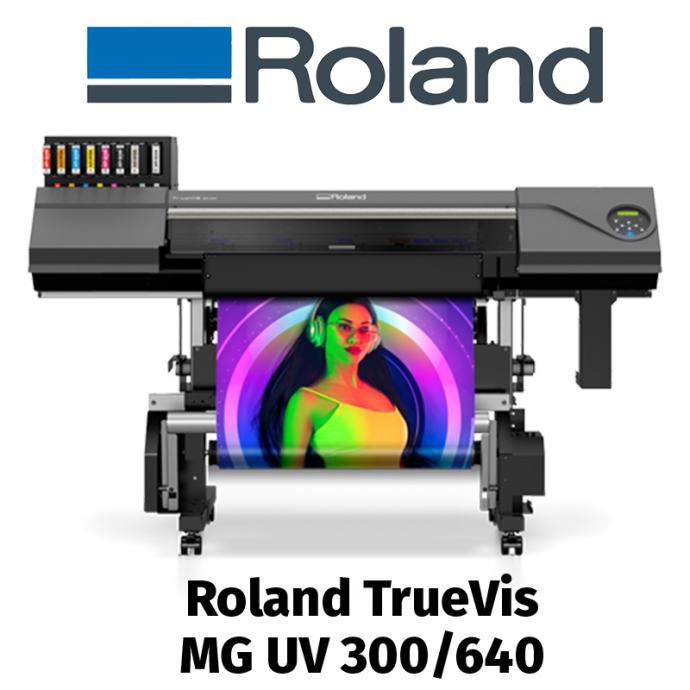

Roland TrueVis MG UV printer. S novim uređajima Roland TrueVIS MG UV-300/640 prelazite na drugu razinu poslovanja. Radi se o neusporedivoj UV kvaliteti ispisa, preciznoj reprodukciji boja, uz integrirano precizno rezanje i opsežnu kompatibilnost medija. Rolandovi pisači stvoreni su za proizvodnju unikatnih aplikacija. Roland TrueVIS MG UV serija pisača/rezača su na jednom novom nivou kvalitete i brzine ispisa. S obzirom da se radi o strojevima “sve u jednom” (tisak, rezanje, lakiranje), dizajnirani su za proizvodnju premium grafika koje će privući svako oko. Sa specijalnim efektima možete istaknuti detalje te osjetiti teksture. Uz pomoć integriranog rezanja možete izraditi prototipove u jednoj operaciji te precizno izrezati komplicirane naljepnice.

Stvorite realistične makete ambalaže, vrhunske naljepnice, WOW natpise, izvrsne zaslone na prodajnim mjestima, posebne grafike i još mnogo toga. S ovim pisačima možete postići ispise vrhunske kvalitete jer koriste nove ECO-UV EUV5 boje. Osim toga, koriste i najnovije ispisne glave i snažne LED žarulje koje se kombiniraju za optimizaciju kvalitete ispisa do najsitnijih detalja.

S Roland TrueVIS MG UV-300/640 pisačima dobivate cjelovito rješenje, od ispisa, rezanja, perforiranja pa do lakiranja na zahtjev.

Uštedjet ćete na vremenu radi brzine samih pisača, s ispisima koji su odmah nakon tiska spremni za daljnju doradu i instalaciju.

Zadovoljite i najzahtjevnije klijente te oživite svoju viziju kroz probne otiske, makete, ambalažu…

Roland-TrueVIS – MG-300 i MG 640 UV-printer u dvije opcije širine
Sa serijom Roland TrueVIS MG UV možete birati između dvije širine, 762 mm (30 “) i 1625 mm (64”), te između tri konfiguracije duljine.

Nudi visinu ispisa od 230 mm i težinu materijala od 100 kg / m2.
Dostupna je nova EUV5 tinta s temeljnim premazom za tisak.
Dostupno u dvostrukom CMYK ili u CMYK s bijelim, sjajnim i temeljnim premazom.
SVOJSTVA
Vrhunska kvaliteta: Preciznost, napredna tehnologija glave i nove opcije tinte, narančaste i crvene ECO-UV (EUV5) boje pružaju najkvalitetniju sliku s ultra živopisnim bojama i preciznim usklađivanjem.
Posebni efekti: Istaknite detalje, osjetite teksture i stvorite vidljive i opipljive efekte.

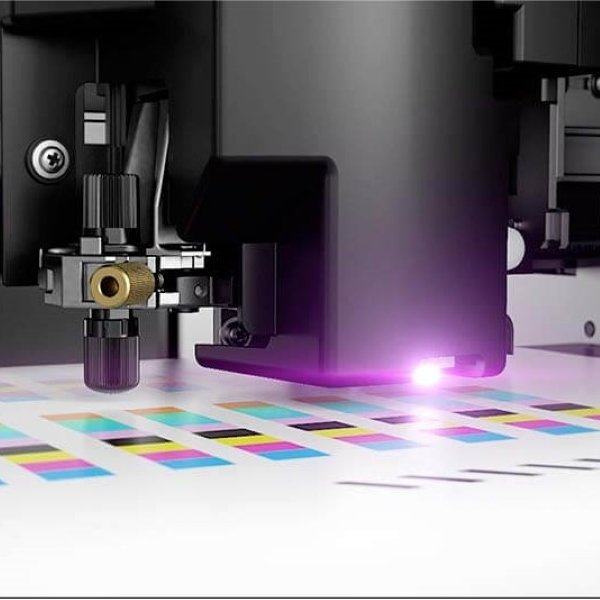

Integrirano rezanje: Stvorite makete u jednom potezu i precizno izrežite naljepnice.
Model MG-640 MG-300
Printing method Piezo ink-jet method
Media Width 8.3 to 64 in. (210 to 1625 mm) 7.2 to 30 in. (182 to 762 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner, for printing
Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter Max. 8.2 in. (210 mm)
Roll weight Max. 88 lb. (40 kg) Max. 55 lb. (25 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing / cutting width 1 Max. 62.9 in. (1600 mm) Max. 28.9 in. (736 mm)
Ink Type ECO-UV (EUV5) 220 ml cartridge (white)
ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white)
ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
Colors Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss)
Seven colors (cyan, magenta, yellow, black, red, orange, white)
Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer
Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss)
Four colors(cyan, magenta, yellow, black)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Print Speeds MG-640: 150 sqft/hr at 720 × 720 dpi
MG-300: 120 sqft/hr at 720 × 720 dpi
Cutting speed 0.39 to 11.8 in./s (10 to 300 mm/s)
Blade force 2 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0 to 59 mil (0 to 1.500 mm)
Software resolution (when cutting) 0.98 mil/step (0.025 mm/step)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-240 Va.c. 50/60Hz 2.8 A 100-240 Va.c. 50/60Hz 2.7 A
Power consumption During operation Approx. 250 W Approx. 240 W
Sleep mode 40 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions (with stand) 111 [W] x 31 [D] x 52 [H] in. (2819 (W) x 781 (D) x 1316 (H) mm) 77 [W] x 31 [D] x 52 [H] in. (1945 (W) x 781 (D) x 1316 (H) mm
Weight (with stand) 360 lb. (163 kg) 276 lb. (125 kg)
Environment During operation 3 Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation)
Not operating Temperature : 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Specifications, designs and dimensions listed may be subject to change without notice
1The length of printing or cutting is subject to the limitations of the program.
2500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3Operating environment (Use in an operating environment within this range.)
