Mini CNC glodalica / gravirka CNC1610 Engraving machine

Prodajem
Description:

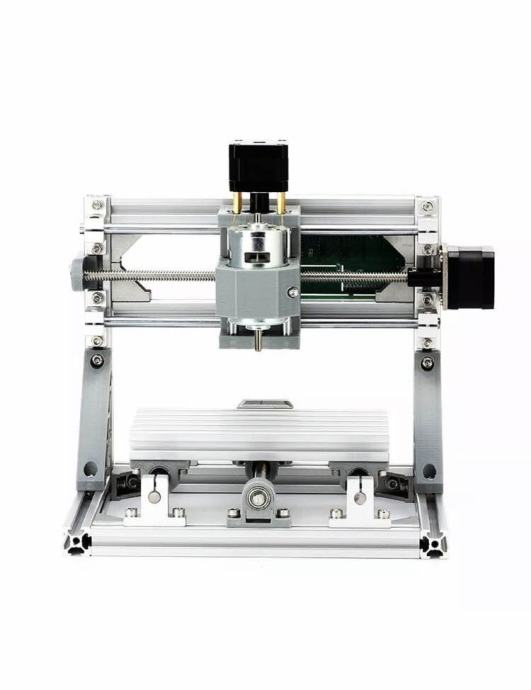

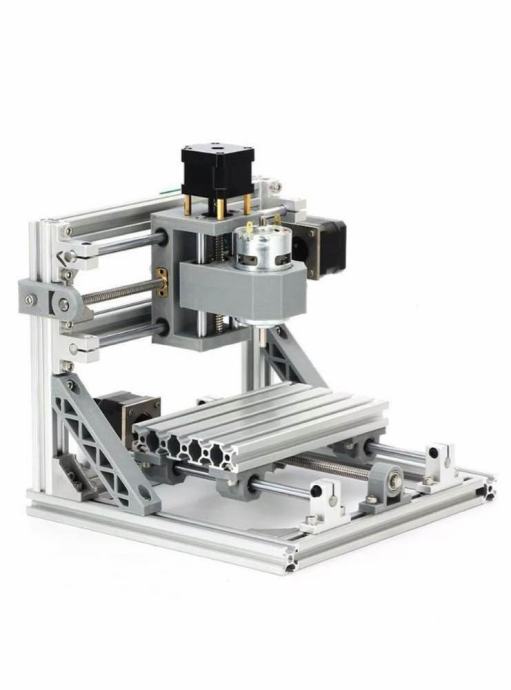

Mini CNC1610 Standard Configuration CNC Engraving Machine

Item Specifics:
Profile Dimensions: 260x240x220mm (excluding motor protrusions)
Travel (engraving range): 160x100x45mm
Screw: Professional T8 screw, lead 4mm, double copper nuts eliminate the poor back

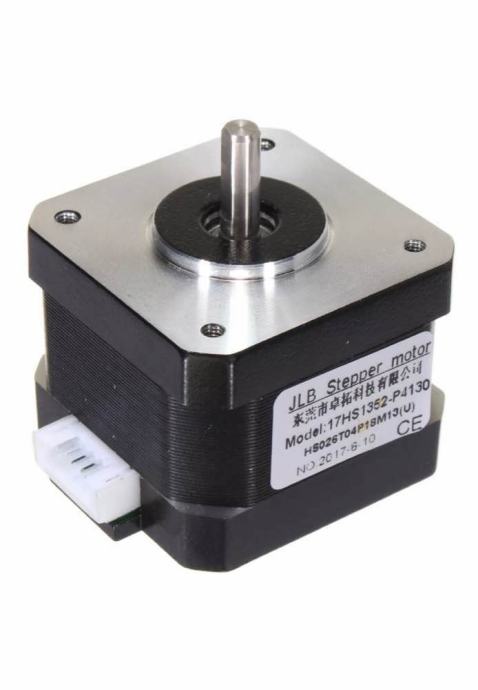

Stepping Motor: The new 42 stepper motor, reliable quality
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m

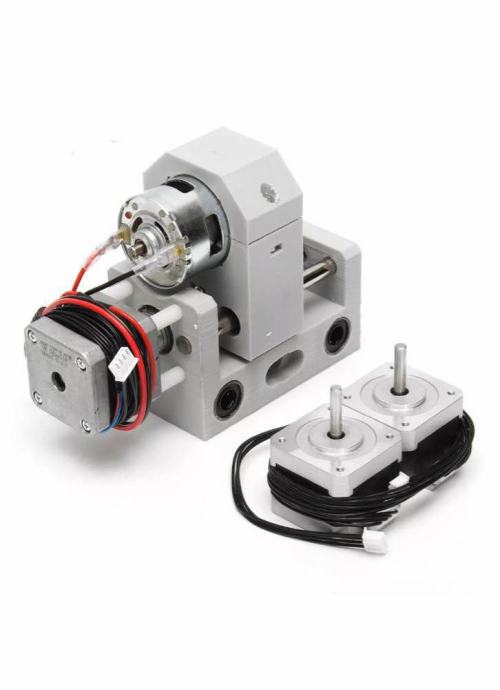

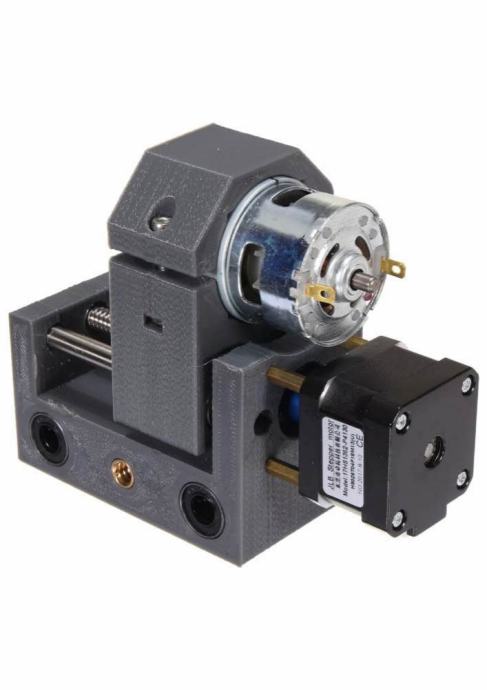

Spindle: 775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min
Power: 24V 5A power adapter (input voltage 110-240V), simple and convenient
Countertops: 20100 aluminum (table size: 180x100mm)
Rack: 2020 profiles
Gray Part Material: Plastic
Control software: Grbl Control
Design software: All CAM (computer aided manufacturing) software can be
System requirements: windows XP SP3, win7, win8, win10. (32/64 can be). Linux
Interface: USB

Features:
-Body with aluminum and plastic, small size, light weight, USB interface, GRBL control system, learning, entry to use the preferred. Can use carving knife,
-Can be carved plastic, wood, acrylic, pvc, pcb, on behalf of the wood and the like material.
-Some components and core components have been assembled, the customer only need to assemble the rack according to the installation instructions can be used, the control board wiring is basically a connector, do not need professional knowledge.

Note:
1.Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
2.The colors may have different as the difference display, please understand.
3.CNC1610 standard (excluding laser tube)

Mini cnc glodalica gravirka obradni centar cnc milling machine
