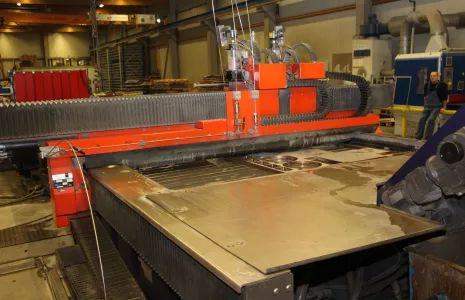

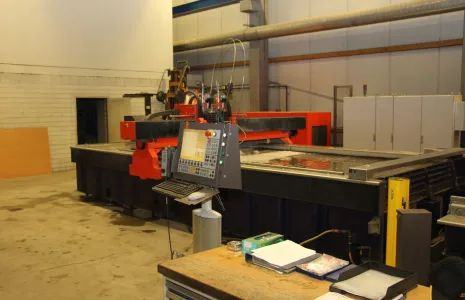

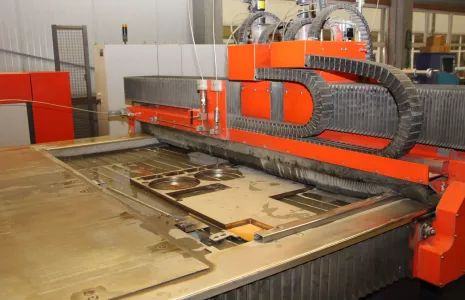

Waterjet. Stroj za rezanje vodom Bystronic Byjet 4022

Stroj za vodeno rezanje metala i nemetala. Svicarske proizvodnje. Dvije rezne glave. Tlak 3800 bara.
Izmjenjivi stolovi 4x2.2m dva stola.
Rotaciona os za rezanje cijevi i profila.
Produkcijski stroj u odlicnom stanju, odrzavan redovno od proizvodjaca. Od prvog vlasnika. U radu u zagrebu, moguca proba. Dogovor oko instalacije moguc. Kupnja kreditom ili leasingom.



Tehnicki opis:

BYSTRONIC BYJET 4022 WT Water Jet Cutting System
- Machine no.: W255
- operating hours approx.: 28845
- cutting hours approx.: 27418

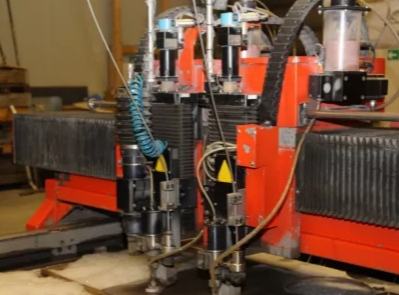

- two cutting heads
- max. cutting carriage clearance: 1150 mm
- max. positioning speed axially parallel X/Y: 60 m/min
- max. positioning speed simultaneous: 84 m/min
- min. traverse speed: 0,001 m/min
- machine tolerance according to VDI/DGQ 3441: +- 0,1 mm/Axis
- positioning- and repeating accuracy: +- 0,05 mm
- cutting range: 4000 x 2000 mm

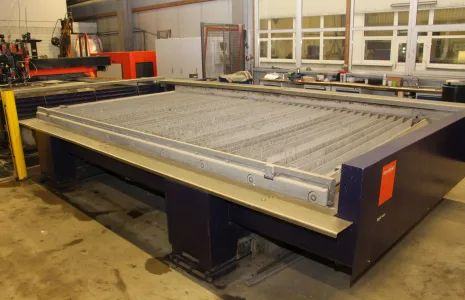

- shuttle table dimensions: 4000 x 2250 mm
- max. workpiece height: 100 mm
- max. cycle time: 4 min
- max. loading capacity of frame: 7000 kg
- loading capacity of each grate bar: 110 kg
- max. number of grate bars: 70
- max. workpiece weight flat part: 6900 kg
- max. working range for round part processing: diameter: 440 mm, length: 3700 mm
- max. workpiece weight of round part: 500 kg
- max. difference in level with automatic water level reduction: 100 mm

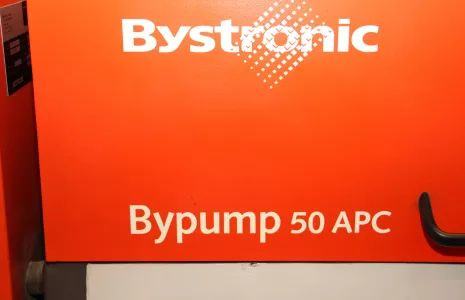

pump BYPUMP 50 APC
- delivery volume: 0 up to 5 l/min
- max. nozzle size at single head operation, diameter: 0,4 mm
- max. nozzle size at double-head operation, diameter: 0,3 mm
- recommended nozzle size at double-head operation, diameter: 0,28 mm
