Winch KEROS Italwinch

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

ELECTRIC MOTOR 1000W 1000W 1500W 1500W
MOTOR SUPPLY VOLTAGE 12V 24V 12V 24V
MAXIMUM PULL 1020 Kg 1060 Kg 1250 Kg 1290 Kg
LIFT WORKING LOAD 130 Kg 140 Kg 150 Kg 160 Kg
LINE SPEED 25 mt/min 25 mt/min 26 mt /min 26 mt/min
CURRENT ABSORBTION 115 A 60 A 130 A 70 A
WEIGHT (WITH DRUM) 18,4 Kg 18,4 Kg 18,5 Kg 18,5 Kg
WEIGHT (WITHOUT DRUM) 19,0 Kg 19,0 Kg 19,1 Kg 19,1 Kg
CHAIN 6mm ISO - 8mm ISO - 10 mm ISO- 10 mm DIN766

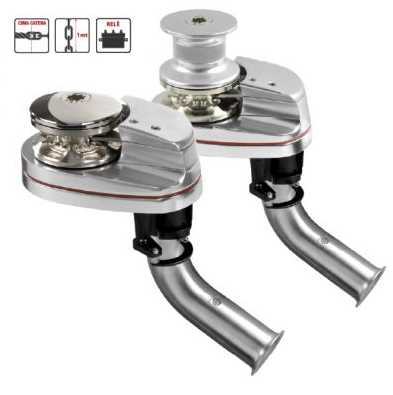

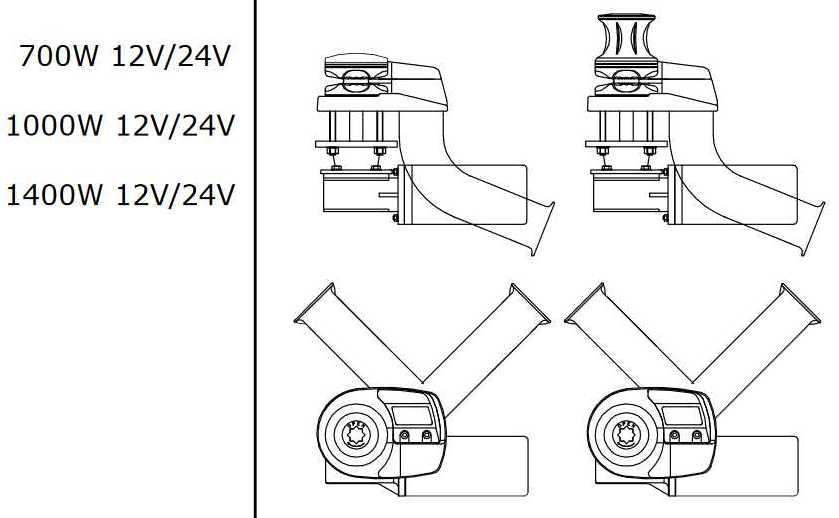

Anodyzed aluminium alloy windlass. Available in high or low profile, with different drives and recommended for boats up to 16 m. KEROS has a unique chain distribution system (ECS) integrated into its mechanism. This innovative system prevents stacking of the chain in the forepeak, and is completely mechanical and has a very small footprint. The windlass can use the 6 mm, 8 mm or 10 mm chains and is equipped with rope tensioner. Comes with built-in chain counter sensor.

MZ Electronic starts working with ORVEA in 2008, creating the brand Italwinch and starting producing the first range of anchor windlasses for boats up to 16 meters. The collaboration becomes closer with market demand to have products for bigger boats; in 2011 MZ Electronic decided to acquire the ORVEA company, including drawings, stock, moulds, know-how and starting the Italwinch by ORVEA project. Now the range Italwinch by ORVEA has more than 30 categories of mechanical products for docking, a complete range of electronic accessories and the possibility of creating custom solutions on request, both in electronic and mechanical sector

INFO & PRICE ON REQUEST
