Satelitski receiver EVO NOVA HD Linux Enigma2

Receiver je u odličnom stanju.
Klon ovog receivera je zgemma h.2.h ( koristi isti image )

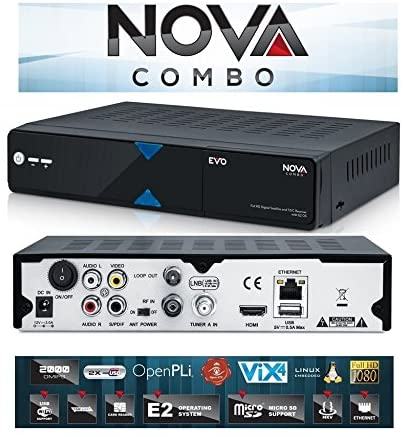

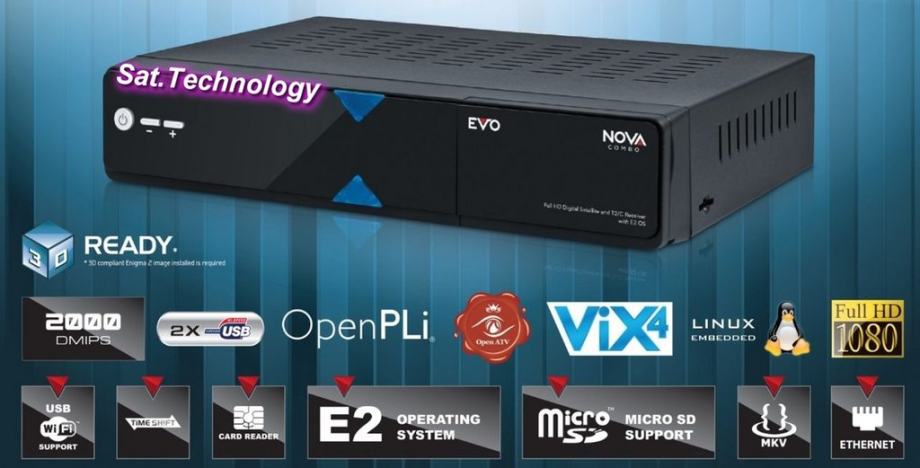

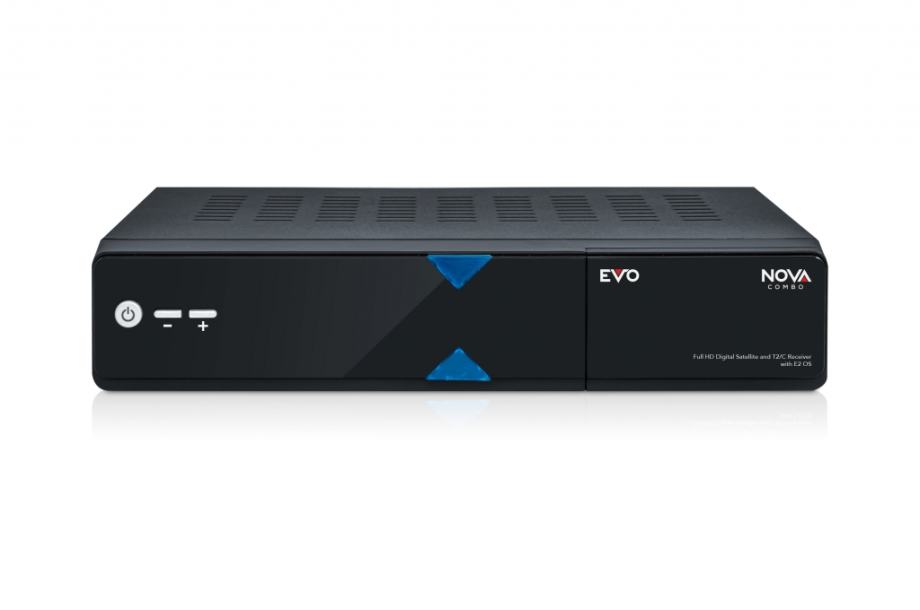

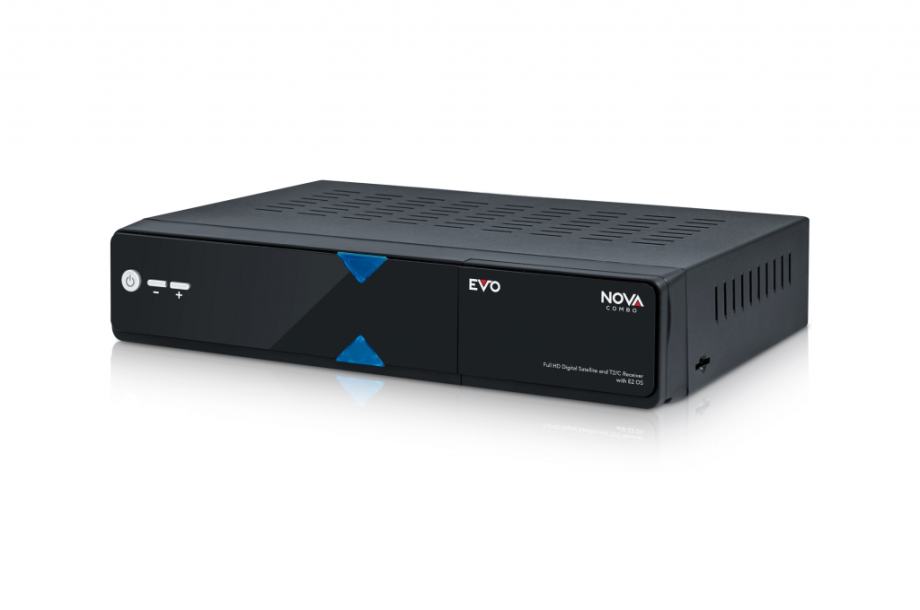

EVO NOVA COMBO HD Linux Enigma2 DVB-S/S2 + DVB-T/T2/C Combo Receiver
Ne podržava HEVC 265

The Evo Nova Combo from Evo gives you unparalleld features for an unbeatable price.We have taken enigma 2 Receiver and created an incredible priced machine without comprimise to Quality.
A Stunning array of truly advanced features,using a revoltionary cutting edge chipset,gives you power and performance unheard of in this price range for a twin Tuner.Feature rich and stylish in piano black and suttle Blue light on the front sits beutifully in the center of your digital Home.You Will Experiance fast action with its Processor - 742 Mhz (2000 DMIPS) Broadcom chipset & Memory Flash-ROM: 256MByte & SDRAM: 512MByte (DDR3)

Main Features

Full HD Digital Satellite and T2/C receiver
E2 Operating System - Linux Embedded
With S2 Satellite and T2/C Hybrid Tuner
Processor - 742 Mhz (2000 DMIPS)
Fast and Easy Installation with the Installation Wizard
One card reader slot
MicroSD card slot
3D Ready (3D compliant Enigma 2 image installed is required)
Two High Speed USB2.0 connections
Multimedia Playback (MKV, AVI, MPG, MP4, TS, WMA, MP3 and more...)
TimeShifting - Stop live television (Hard drive required)
YouTube videos, Internet Radios and much more...*
Internet Streaming TV and Radio support*
Ethernet Connection and WiFi / 3G dongle support*
Easily expandable with addons and plugins
Live Streaming through network*
Remote Management through HTTP* / Telnet / SSH / FTP...
Media Playback and Recording via local network*
External USB DVD drive support*
Electronic Program Guide (EPG)
Multi-Satellite Controlled with DiSEqC1.0, 1.1, 1.2 and USALS
Automatic DiSEqC detection
High Resolution Graphic User Interface (GUI)
Customizable apperiance with Skins
(10/100M) Ethernet connetion
Multi-Language - Audio / Teletext / Subtitle - support
Easy Software Upgrades through the Internet / USB
Full HD HDMI 1.4 Connection
Dolby Digital Bit-Stream out via Coaxial S/PDIF and HDMI
DC 12V Power Supply

Technical Specifications
Tuner & Channel Decoder (Satellite)
Input Connector: F-type, IEC 169-24, Female
Frequency Range: 950MHz ~ 2150MHz
Input Impedance: 75Ω, unbalanced
Signal Level: -65 to -25dBm
LNB Power: 13/18VDC, max.400mA
22KHz Tone: (22±2)KHz, (0.7±0.2)V
DISEqC Control: V1.0/1.2/USALS Compatible
Demodulation: QPSK / 8PSK
Input Symbol Rate: 1 ~ 45 MSym/s
FEC Decoder: 1/2,3/5,2/3,3/4,4/5,5/6,7/8,8/9,9/10 (QPSK)

Tuner & Channel Decoder (DVB-T2/C hybrid emedded)
MPEG Transport Stream A/V Decoding: 3/5,2/3,3/4,4/5,5/6,8/9,9/10(8PSK)
Transport Stream: AVC/H.264(MPEG-4 part 10), MPEG-4 part2 (ISO/IEC 14496) MPEG-2 (ISO/IEC 13818-2)
Profile Level: AVC/H.264 MP and HP @L3.1(60fps) AVC/H.264 HP @L4.2(30fps) MPEG-2 MP @ ML and HL
Input Rate: Max. 80Mbit/s
Video Formats: 4:3 Letter Box, 4:3 PanScan, 16 : 9
Video Resolution: 720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p 1280 x 720p, 1920 x 1080i, 1920 x 1080p
Audio Decoding: AAC LC, AAC LC+SBR Level 2, AAC+ Level 4, WMA pro, Dolby Digital, MPEG-1 Layer 1,2
Audio Mode: Streo/Mono, Dolby digital, MPEG and AAC audio
Sampling Rate: 16KHz, 32KHz, 44.1KHz and 48KHz(According to input)

Main System
Main Processor: Broadcom chipset
Memory Flash-ROM: 256MByte
SDRAM: 512MByte (DDR3)

Audio / Video & Data IN/OUT
RCA: CVBS Video Output, Audio L, R Output
HDMI: Video & Audio Output
Coaxial: AC3 Dolby Digital (SPDIF)
RS-232C: 9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB: 2 USB 2.0 Host Support
Ethernet: RJ45 connector, 10/100 Base

Front / Rear Panel
Slot: 1 Smart Card slot
Display: 7-Segment - 4 Digits
Indicatiors: 1LED (Standby, Power & Remote : Dual Color)

Power Supply
Input Voltage: AC 100 ~ 250V, 50/60Hz
Type: DC ADAPTOR (12V, 2A)
Power Consumption: Max. 24W
Standby Power: Max. 0.5W
Protection: Separate Internal Fuse & Lighting protection

Physical Specification
Size (W x H x D): 210mm X 40mm X 145mm
Weight (Net): 0.6Kg
Operating Temp.: 0°C ~ +45°C
Storage Temp.: 10°C ~ +70°C
