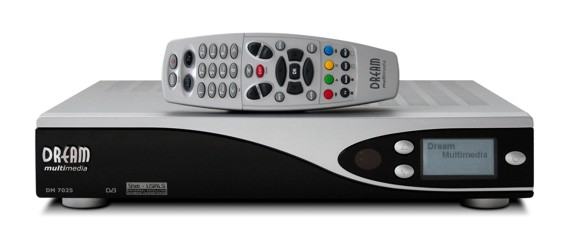

Dreambox 7025 ENIGMA 2 twin tuner

Prodajem originalni satelitski prijemnik Dreambox 7025 s dva dvb-s tunera, dva utora za karticu, CI utorom, slotom za dodavanje flash memorije i hard-diskom od 80 GB. Prijemnik odlično radi, očuvan je i idealan za CS za koji je sve podešeno. Prijemnik omogućava istovremeno gledanje jednog programa i snimanje drugog programa.
Idealno za one koji se žele učiti radu na Dreambox prijemnicima ili trebaju Enigma2 prijemnik za formiranje servera!
Moguća dostava na području cijele RH putem Tiska.

DreamBox 7025 Features:
• 300 MHz Processor
•Linux open source (most parts under the terms of GPL)
•Supports Linux Standard API
•1 x DVB Common-Interface Slot
•2 x Smartcard-Reader
•Integrated Compact Flash Interface Slot
•MPEG2 Hardware decoding (fully DVB compliant)
•TWIN Tuner, mixable, Plug&Play
•Tunervarianten DVB-S, DVB-C und DVB-T, pluggable
•10/100 MBit compatible Ethernet Interface
•USB Port
•12V switch cinch
•V.24/RS232 Interface
•Big-size LC-Display
•32 MByte Flash
•128 MByte DDR-RAM
•integrated IDE UDMA66 Interface
•Support for internal HDD in any capacity
•unlimited channel lists for TV/Radio
•channel-change time < 1 second
•full automatic service scan
•supports directly bouquet-lists
•supports EPG (electronic program guide)'
•supports multiple LNB-Switching control (supports DiSEqC)
•fully adaptable OSD in many languages and skin-support
•S/PDIF Interface for digital bit stream out (AC-3)
•2 x Scart-interfaces
•RF modulator
•Audio/Video cinch out
•MINI-DIN connector for extern IR (send)

DreamBox 7025 technical data

DBS-Tuner:
Frequency Range 950 . 2150 MHz
Signal Level - 65 dBm . - 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation
Roll-off Factor 35 %
Demultiplexing according ISO 13818-1

Common-Interface:
Common-Interface Power Consumption max. 0,3A/5V

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/ 25 Hz, NTSC
Video Formats 4:3 / 16:9
Footage 16:9, automatic assimilation for 16:9 TV-Device (over Scart)
Letterbox precolating for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard>

TV-Scart:
Output: FBAS,RGB,S-VHS over OSD selectable

VCR-Scart:
FBAS

Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function Update of Firmware, Connect to PC

USB:
USB 1.1 connector

Mini DIN:
I2C for stearing of external devices
IR funktion

Pins:
1 5V
2 SDA (I2C-Kanal 2)
3 SCL
4 3,3V
7 GND
8 IR-Output
9 GND

UDMA66 IDE Interface:
Intern for connect HDD max. 500mA
Compact Flash - Reader

LNB power and polarisation:
LNB Current 500mA max. ; short-circuit-proof
LNB Voltage vertical < 14V without load, > 11,5V at 400mA
LNB Voltage horizontal < 20V without load, > 17,3V at 400mA


Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Power consumption:
< 30W (in operation, horizontal polarization / 400mA LNB current)
< 25W (in operation, without LNB)
< 2W (Deep-Standby-Mode)

Input voltage:
230V / 50 Hz alternating acurrent +/- 15%
110V / 60 Hz alternating acurrent +/- 15%

Physical specification:
Ambient Temperature +15¡ãC...+35¡ãC
Humidity < 80%
Size (W x D x H): 374 mm x 230 mm x 75 mm
Weight: 1,8 kg without HDD

Cijena bez daljinskog je 200 kn, a s daljinskim 250 kn.

Akcija: Dreambox 7025 i Dreambox 7000 zajedno oba modela idu za 300 kn!
