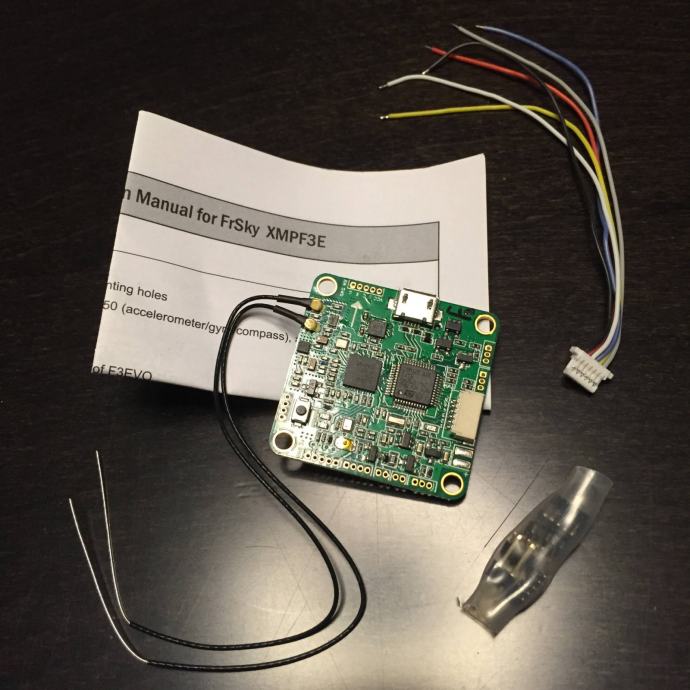

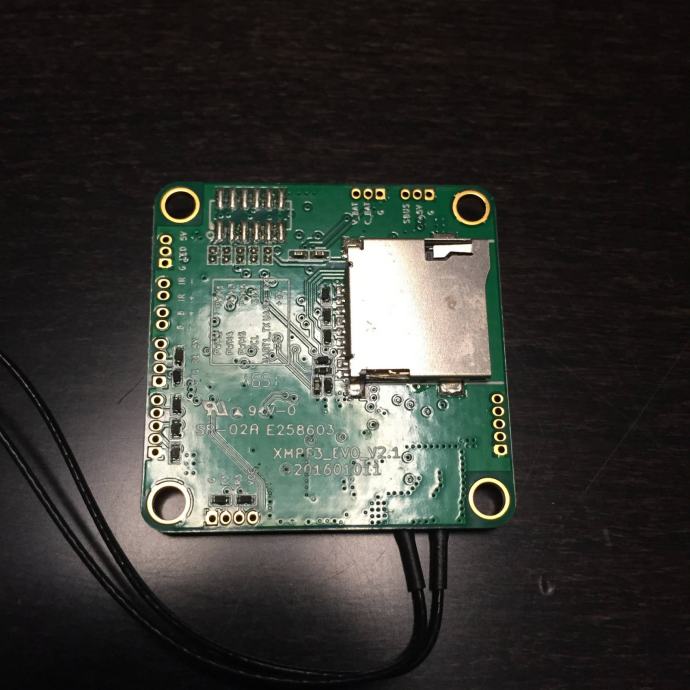

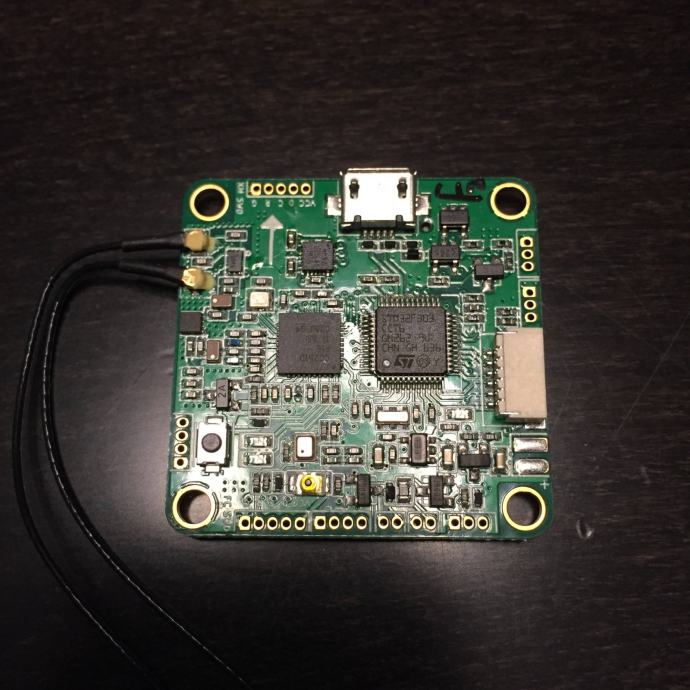

XMPF3E - F3 EVO Flight Control Board s ugrađenim FrSky XM+ prijamnikom

Stanje: NOVO - 250kn
Frsky XMPF3E Flight Control Board Built-in F3 EVO and XM+ Receiver


Specification:
Brand Name: Frsky
Item Name: Flight Control Board Built-in F3EVO and XM+ Receiver
Model name: XMPF3E
Dimension: 36×36×6mm (L × W × H) with 30.5mm mounting holes
Hardware: STM32F303 CPU (72Mhz inc FPU), MPU9250 (accelerometer/gyro/compass), and BMP280 barometer
for F3EVO, CC2510 CPU for XM+ receiver
Channels: 16CH (8CH is RSSI) by SBUS to UART2 Rx of F3EVO
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Compatibility: FrSky Taranis X9D/X9E/ Horus X12S/XJT in D16 mode

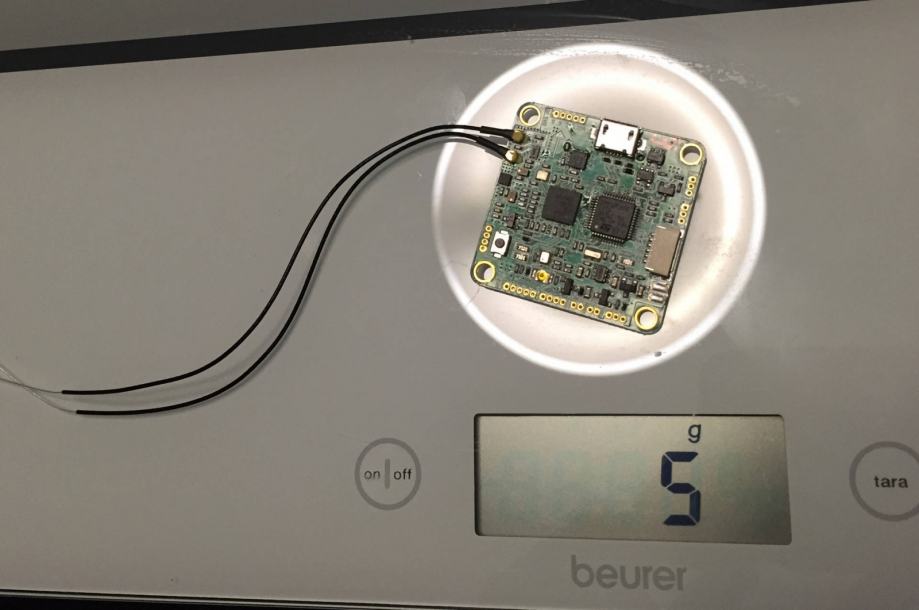

Weight: 5g


Features:
-Built-in F3EVO and XM+ receiver module
- the latest Accelerometer, Gyro and Compass and Baro sensor
-XM+ receiver is a one-way receiver (no telemetry), it will receive the commands of Remote Control and send to
-F3EVO by SBUS (8CH is RSSI) to UART2 Rx of F3EVO
-6 PWM output signal lines for ESCs and Servos. Arranged for easy wiring on standard pin headers

Configuration of F3EVO:
Because the XM+ receiver receive the commands of Remote Control and send to F3EVO by SBUS(16CH, 8CH is
RSSI) to UART2 Rx of F3EVO, we need set the appropriate settings on the Configurator tool.
1. In the ports, set the UART2 to be Serial RX.
2. In the Configuration, set the Receiver Mode to be RX_SERIAL and Serial Receiver Provider to be SBUS, and
disable the RSSI_ADC Analog RSSI input.
3. In the Receiver, set the RSSI Channel to be 8.
For other configurations, please refer to the Cleanflight/Betaflight.


Na FC je BetaFlight SPRACINGF3EVO FW

https://goo.gl/4T5QHF
