Servo motor BLUE BIRD BMD-620 MG
- Cijena
- 14 €
+ zaštita kupca 1,69 €
+ dostava od 0,00 €
Kupi uz dostavu od 0,00 €
Putem BOX NOW paketomata
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 39863868
Osnovne informacije
- Lokacija
- Požeško-slavonska, Požega, Glavica
- Stanje
- novo
Opis oglasa

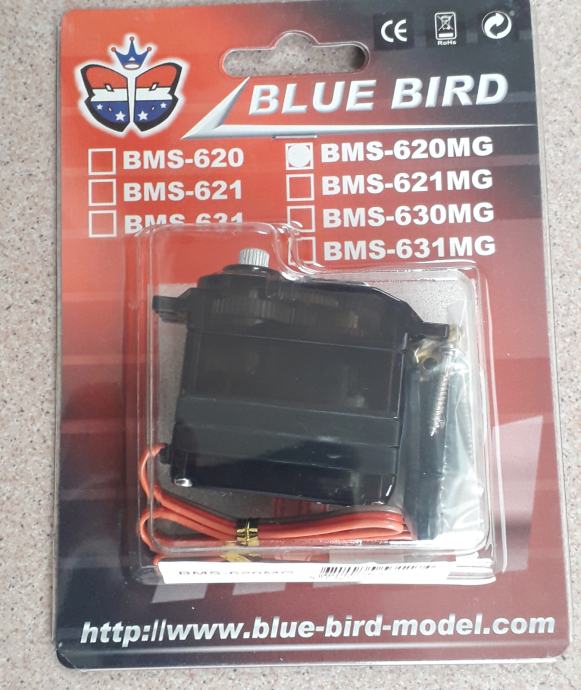

rc motori bluebird novi zapakirani
https://m.conrad.hr/bluebird-standardni-servo-bms-620mg-analogni-servo-materijal-prigona%3a-metal-sustav-uticnica%3a-jr
RC servo motor BMS-620MG
BMS-620MG
Weight: 50 grams / 1.78 oz
Size: 40.5 x 20 x 42 mm / 1.60 x 0.78 x 1.62 in.
Torque At 4.8V: 9.1kg-cm , 126 oz-in
Torque At 6.0V: 10.6kg-cm , 144 oz-in
Speed At 4.8V: 0.15 sec / 60 deg at no load
Speed At 6.0V: 0.13 sec / 60 deg at no load
Ball Bearing: Dual / M9x7
Metal Gears: YES, 3 gears of aluminum, 2 gear of copper, 1 nylon gear
Motor Type: Double magnetic motor
Operating Voltage Range 4.8V to 6.0V
Operating Temperature Range -20oC to +60oC
Idle Current 5mA at Stopped
Running Current 740mA
Stall Current 1800mA
Dead Bend Width 8 usec
Direction Re-clock wise / pulse traveling 1200 to 1600 usec
Horn Gear Spline 25 Segments / (Same as Futaba)
ConnectorWire Length 300mm (11.81in)
Connector Horsing Universal connector
Wire Info Brown Wire = Battery Negative
Red Wire = Battery Positive
Orange Wire = Signal
https://m.conrad.hr/bluebird-standardni-servo-bms-620mg-analogni-servo-materijal-prigona%3a-metal-sustav-uticnica%3a-jr
RC servo motor BMS-620MG
BMS-620MG
Weight: 50 grams / 1.78 oz
Size: 40.5 x 20 x 42 mm / 1.60 x 0.78 x 1.62 in.
Torque At 4.8V: 9.1kg-cm , 126 oz-in
Torque At 6.0V: 10.6kg-cm , 144 oz-in
Speed At 4.8V: 0.15 sec / 60 deg at no load
Speed At 6.0V: 0.13 sec / 60 deg at no load
Ball Bearing: Dual / M9x7
Metal Gears: YES, 3 gears of aluminum, 2 gear of copper, 1 nylon gear
Motor Type: Double magnetic motor
Operating Voltage Range 4.8V to 6.0V
Operating Temperature Range -20oC to +60oC
Idle Current 5mA at Stopped
Running Current 740mA
Stall Current 1800mA
Dead Bend Width 8 usec
Direction Re-clock wise / pulse traveling 1200 to 1600 usec
Horn Gear Spline 25 Segments / (Same as Futaba)
ConnectorWire Length 300mm (11.81in)
Connector Horsing Universal connector
Wire Info Brown Wire = Battery Negative
Red Wire = Battery Positive
Orange Wire = Signal
