FPV kit: LCD Monitor, Transmitter & Receiver

Transmitter specification:

Brand name:Eachine
Item name:TS840 FPV AV Transmitter Module
Frequency:5.8G 600mw
Channel:40CH
Output impedance :50 ohm
Output power:27-28dBm
Input Voltage:7-26V
Output voltage:7-26V
Operating Voltage:7-16V
Supply current:220mA
Video Format: NTSC / PAL Auto
Operating temperture:-10℃-+85℃
Video Band Width:0-8.0MHz
Audio carrier frequency:6.5MHz
Video input Level:0.8-1.2Vp-p
Video input Impedance:75Ohm
Audio input Level:0.5-2.0Vp-p
Audio input impedance:10K Ohm
Antenna connector:RP-SMA connector
Dimensions:(LxWxH):54x32x10mm
Weigh:22g
Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

Package Included:
1 x TS840 AV Transmitter Module
1 x Cable
1 x Antenna
1 x User Manual

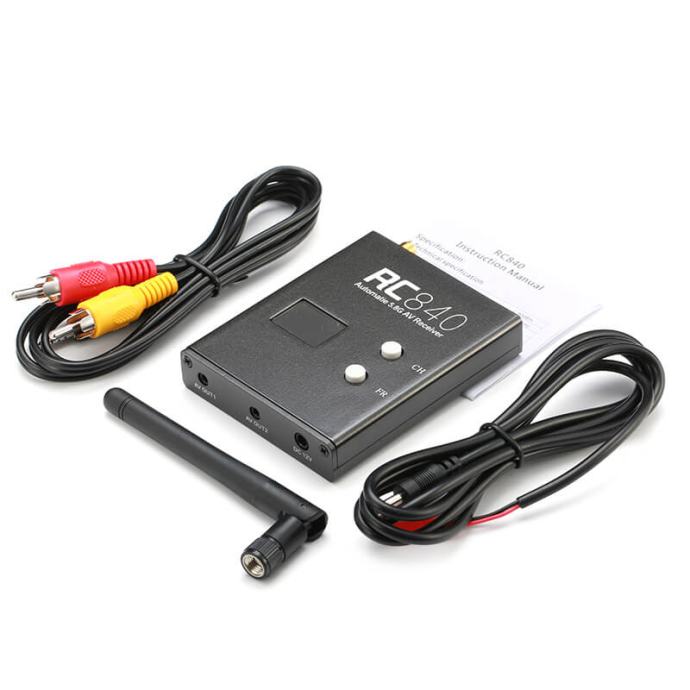

Receiver specification:

Brand name: Eachine
Item name: RC840 FPV Receiver Module
Channel: 40CH Raceband
Power supply: DC 12V
Sensitiviry: ≤ -90dBm
Consumption Current: 200mA, Max.
Antenna Connector: RP-SMA
Antenna Gain: 2dBi
Video Output Level: 1.0Vp-p Typ 75Ω
Audio Output Level: 1.0Vp-p Typ 10KΩ
Audio Carrier: 6.5MHz
Type Standard: NTSC/PAL
Dimension(LxWxH): 80x65x15mm
Weight: 85g

Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

Feature:
-40 channels: Cover A, B, E bands and F band(Airwave band), 4 bands and all frequencies
-Two switching buttons:CH button for frequencies channels switching; FR button for frequencies bands switching
-Two digital display: one for CH and the other for FR, real-time positioning which frequency band and which channel received
-Power off memory: Replay the very last frequency band and channel
-Independent video and audio signal outputs

Package Included:
1 X RC840 Receiver Module
1 X Antenna
2 X Cable
1 X User Manual

7 inch TFT LCD 1024x600 HD Monitor

Designed specially for FPV and outdoor operation purpose. The monitor has very bright image(adjustable) and very wide power supply range(7-12V).The monitor also has a very important feature for FPV users, it doesn't have "blue screen" problem when the signal gets weak. This feature makes you able to fly much further and never lose image. When VTX is not connected ,it just show static, never turn blue or black.
Supported video format: NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

Features:
•Ultra Bright 500 CD/M² High-Definition Display
•Supports Composite Video RCA Input
•Display Resolution up to 1024*600 Pixels
•16:9 or 4:3 Adjustable Display Ratio
Designed for FPV Application
Application to FPV or Wireless Composite Video Camera in making Movies.

Specifications:
Panel Size: 7" widescreen
Brightness: 500 CD/M²
LCD Type: TFT LCD
Resolution: 1024 x 600
Aspect Ratio: 16:9 & 4:3
Contrast Ratio: 500:1
Light Source: LED Backlight
Surface Treatment: Anti-Glare
Viewing Angle: 70°/70°,50°/70° (L/R,U/D)
Inputs: Compostie 2 Video RCA Input
Input Voltage: DC 7.4~35V (suggest 3S battery)
Input Current: DC 0.5A-1.5A
Power Consumption: ≤8W Watts
Mount: "1/4"-20 Thread and VESA mounting socket(75mm)
Storage Temperature: -20°C to 70°C
Operating Temperature: -10°C to 60°C
Size: 185.5mm x 122mm x 32mm
Weight: 450g

Package Included:
1 x No blue 7 inch FPV monitor
1 x T plug Power cable
1 x monitor holder
1 x sunhood
