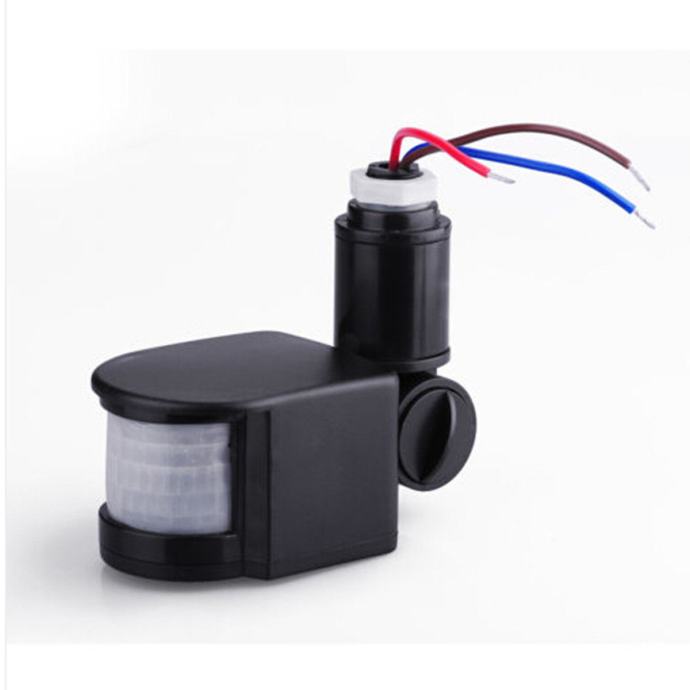

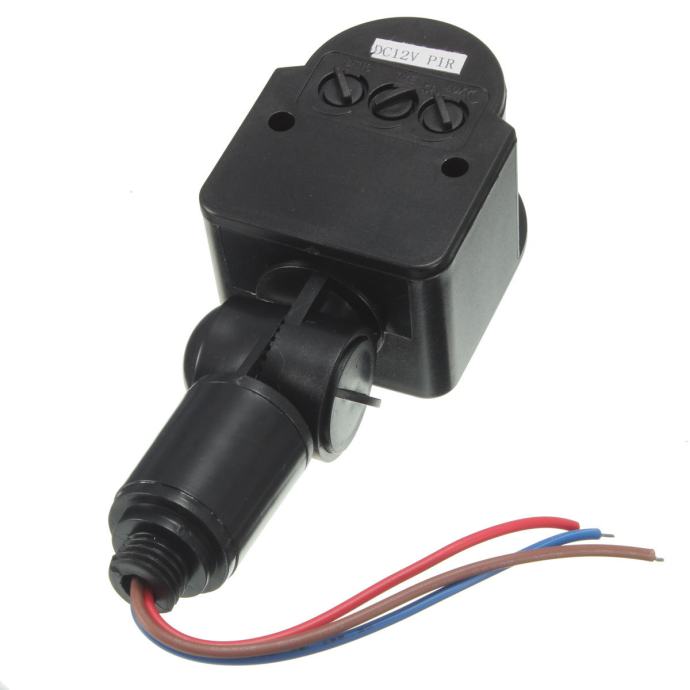

SENSOR SENZOR POKRETA 12V DC NA BUŠENJE
- Cijena
- 10,62 €
Šifra oglasa: 17400539
Osnovne informacije
- Lokacija
- Zagrebačka
- Stanje
- novo
Opis oglasa
[Adjustment]
● LUX
Regulate the work day or night.
A: When transferred to the position of the sun, the sensor-day work;
B: When transferred to the position of the moon,
the sensor does not work during the day, at night automatically enter the working state.
● TIME
Is to adjust the sensor delay time (10 ± 2sec ~ 7 ± 1min)
Delay time is the sensor sensitive to the people, the people left the sensing area, the sensor delay off time.
● SENS
Is to adjust the sensor sensitivity. Generally do not need adjustment.
[The main technical parameters]
● Detection range: 180 °
● Operating voltage: DC12V i AC12V (imamo i za istosmjernu i za izmjeničnu)
● Detection distance: 15m (24 ℃) (adjustable)
● Delay Time: 15 seconds to 7 minutes (adjustable)
● Installation height: 1.8m ~ 2.5m
● Material: ABS
● Installation: open type, (hole 16mm) installation, adjusting for the next button.
[Connection Description]
● N- Blue (zero line)
● L- Brown (connected FireWire)
● Output - Red (sensor output lines)
● Blue and brown input power
● Blue and Red take the load (lamps).
