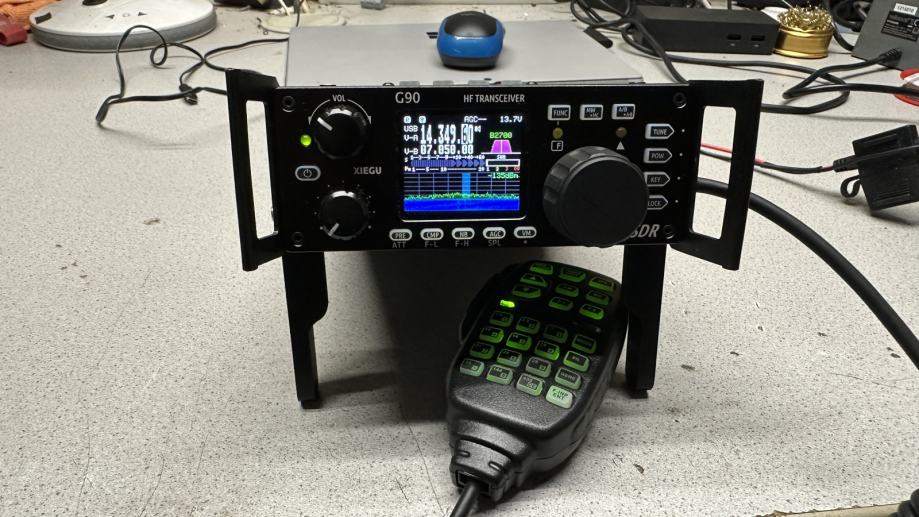

Xiegu G90 HF radio

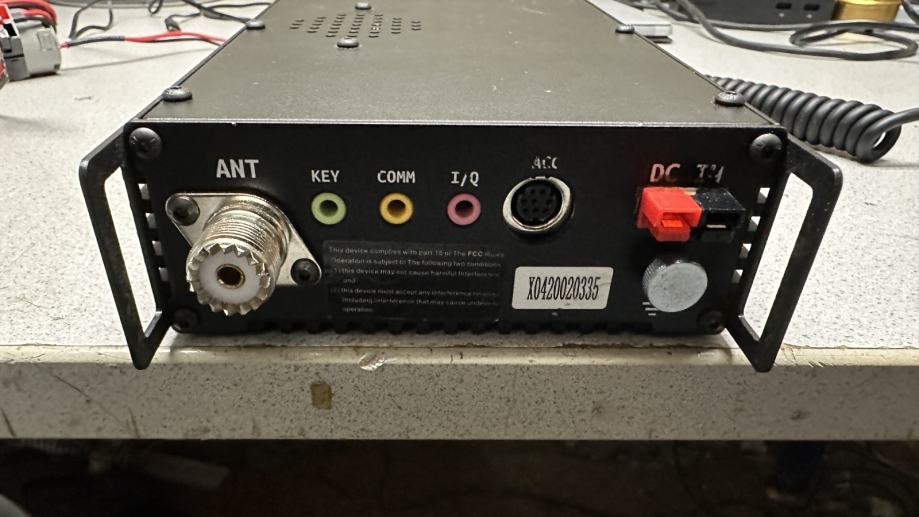

DODAN POWERPOLE ZA NAPAJANJE

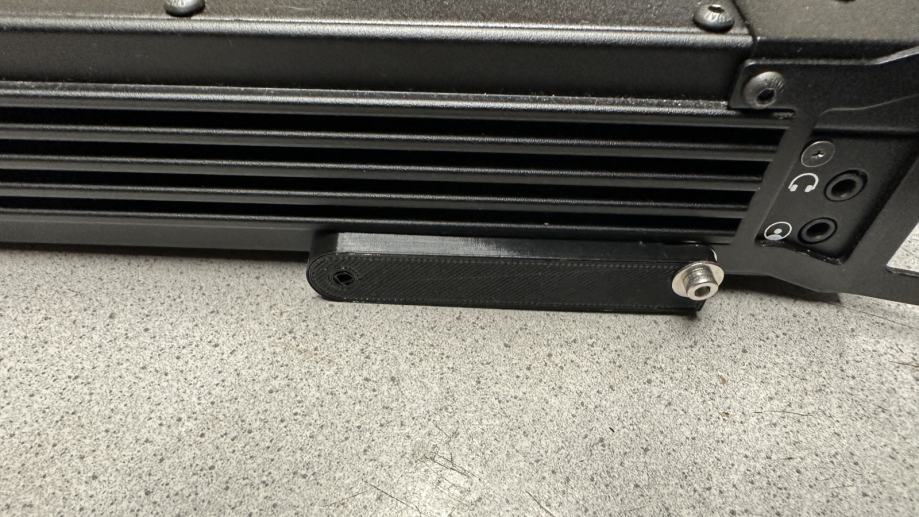

DODANE NOGE ZA PODIZANJE PREDNJE STRANE

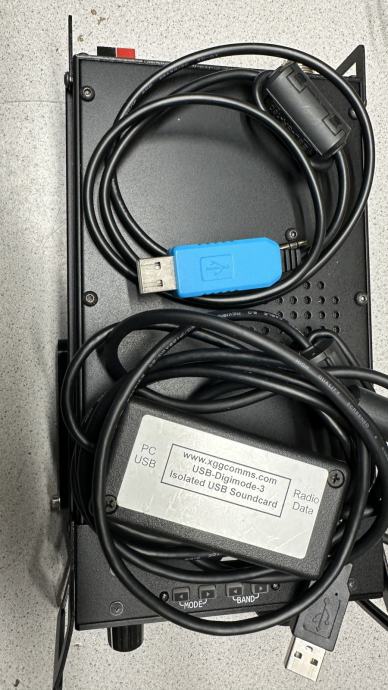

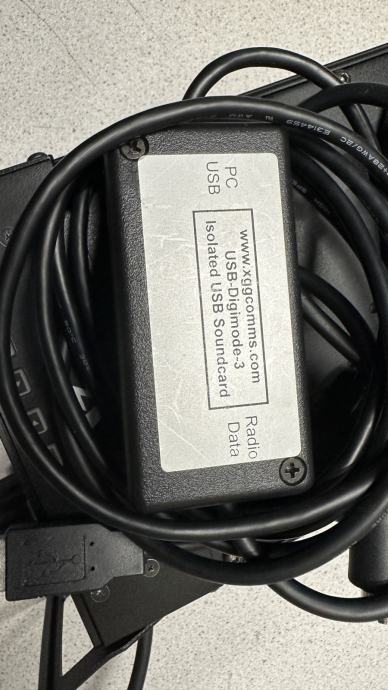

POKLON USB ZVUČNA KARTICA ZA DIGI
MOGUĆE TESTIRATI PRIJE KUPNJE

TX:
1.8-2.0MHz | 3.5-4.0MHz
5.330.5-5.405MHz | 7.0-7.3MHz
10.1-10.15MHz | 14.0-14.35MHz
18.068-18.168MHz | 21.0-21.450MHz
24.89-24.99MHz | 28.0-29.7MHz

1 x Xiegu G90 Transceiver
1 x Multi-function Microphone
1 x USB CAT and Firmware Cable
1 x DC Power Cable with fuse
2 x Front extension handles
2 x Rear extension handles

High performance front end narrowband ESC preselector
Frequency range of 0.5~30MHz, SSB/CW/AM

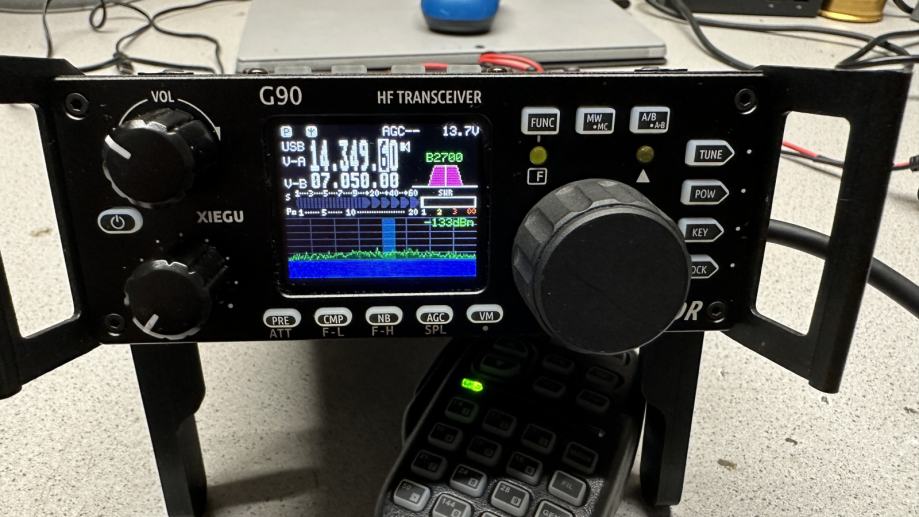

1.8 inch high brightness color TFT LCD screen
±24k bandwidth spectrum display with waterfall
Software defined narrowband filter (CW mode: 300Hz)
Detachable Front Panel/Display Unit
Up to 20W of RF power
Built-in wide range automatic antenna tuner
I/Q output for interfacing with a PC or XDT1 panadapter

RX frequency range: 0.5MHz to 30MHz
Modes: SSB/CW/AM
RX sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB
Adjacent channel suppression: 60dB
Audio output power: 0.5W@ 4Ω
Standby current: 750mA @ Max

RX frequency range: 0.5MHz to 30MHz
Modes: SSB/CW/AM
RX sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB
Adjacent channel suppression: 60dB
Audio output power: 0.5W@ 4Ω
Standby current: 750mA @ Max
