Wouxun KG-UV9D Plus, Multi-Band ručna radio postaja

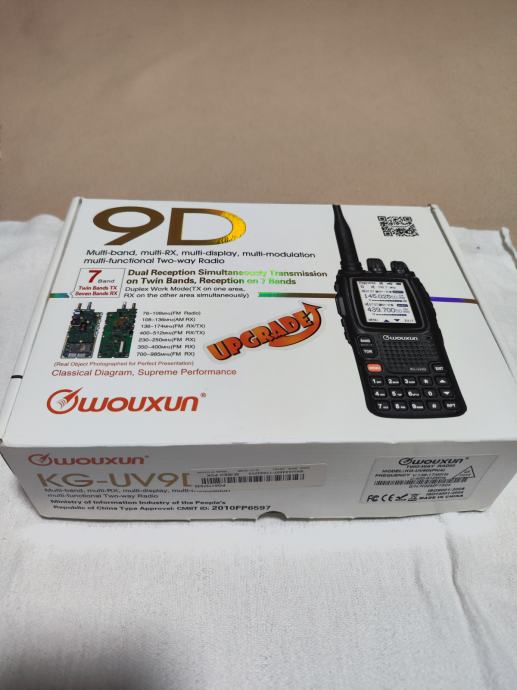

izvrsno očuvana, u originalnoj ambalaži

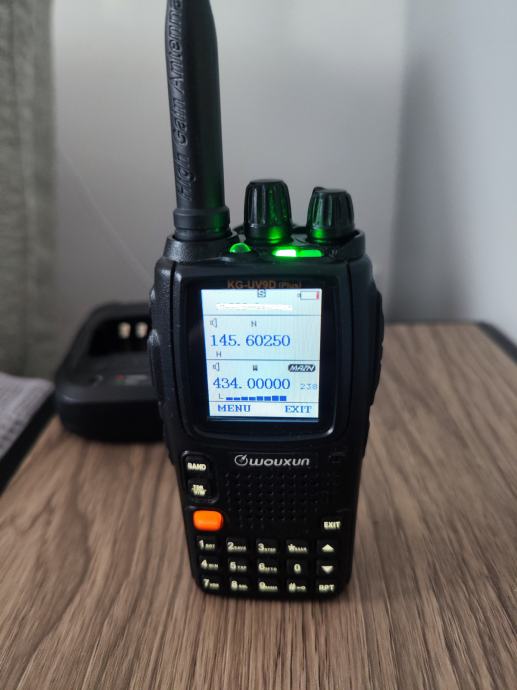

ogromni display, 9 frekv područja
istovremni prijem na oba prijemnika, crossband repeater, kvalitetna plastika, itd

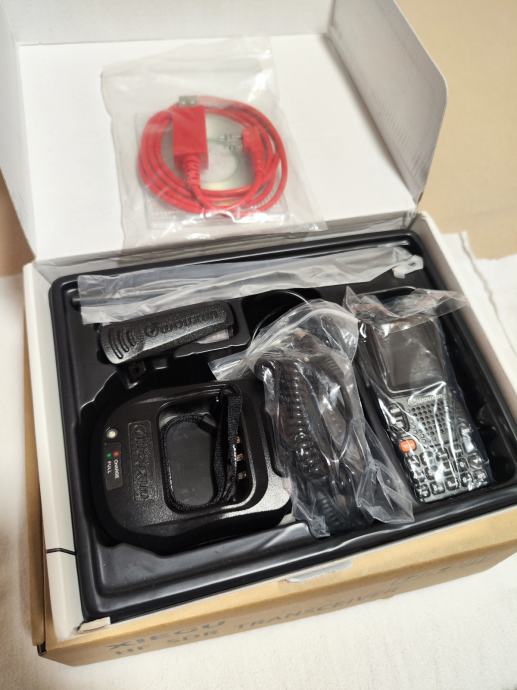

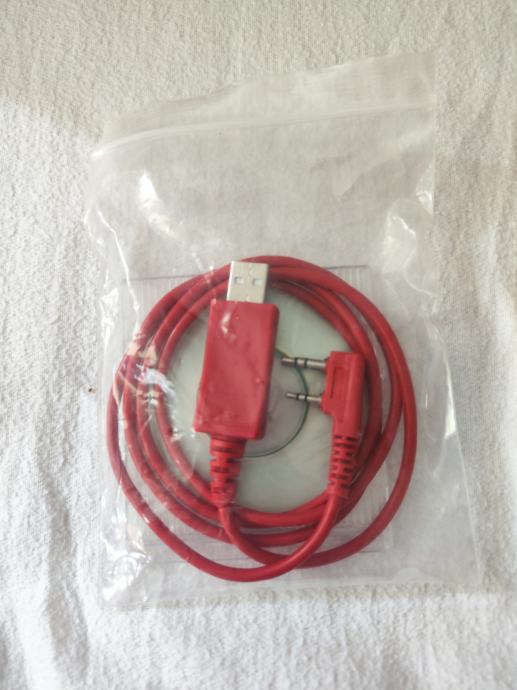

kupcu dodatno ide i original crveni kabel za spoj sa računalom za programing softver, sa CDom
detaljna specifikacija:

TECHNICAL SPECIFICATION
Intergration
Frequency Range
suitable for different countries or areas

1 TX: 136-174MHZ(FM)
400-512MHZ(FM)
2 RX: 76-108MHZ(FM)
108-136MHZ(air ground)
136-180MHZ(FM)
230-250MHZ(FM)
350-400MHZ(FM)
400-512MHZ(FM)
700-985MHZ(FM)

Step 2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃～+40℃
Voltage 7.4VDC
Antenna Impedance 50Ω
Weight 490 g
Size 123 x 58 x 31 MM
Receiver
Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power ≤500mW
Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter
Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5PPM
Audio Distortion ≤5%
Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W

link:
https://www.wouxun.com/radios/two_way_radio_KG-UV9D.aspx
