RTL-SDR Software Defined Radio RTL2832U (RTLSDR)

Prodajem RTL-SDR RTL2832U stik sa antenom podnožjem, priključnim kablom i softverom SDR# te drajverima za Windowse i uputama za instalaciju. Širokopojasni SDR prijemnik pokriva frekvencijsko područje od 100KHz do 1,7GHz. Detaljna specifikacija sljedi u nastavku na engleskom jeziku:

Includes
1x RTL-SDR Blog brand R820T2 RTL2832U
1x 20cm to antenna
1x USB cable
Applications

Great for many applications including general radio scanning, air traffic control, public safety radio, ADSB, AIS, ACARS, VDL2, trunked radio, P25/DMR digital voice, TETRA, POCSAG, weather balloons, APRS, NOAA APT or METEOR M2 weather satellites, Outernet, Inmarsat, Iridium, GSM, Milsatcom, radio astronomy, meteor scatter monitoring, DAB, or for use as a low cost panadapter with a traditional ham radio.

Just search our website at rtl-sdr.com for your application of interest to see some ideas.

Improvements

This unit has several improvements over generic and other brands including:
R820T2 tuner
Improved passive component tolerances
A 1 PPM temperature compensated oscillator (TCXO)
HF mode via direct sampling built in (can tune down to 500 kHz unlike basic RTL-SDR's which can only go to 24 MHz)
SMA F connector
Aluminium shielded case with thermal pad for passive cooling to improve L-Band performance
Software activatable 4.5v bias tee circuit
Improved PCB design for lower noise and less spurs
A USB noise choke, more bypass capacitors, and built in ferrites for less PC noise
Improved ESD protection (additional ESD diode and extra ESD discharge paths)
An improved front end circuit designed for wideband use (other models still use a circuit designed for DVB-T only)
Several breakout pads on the PCB for advanced users

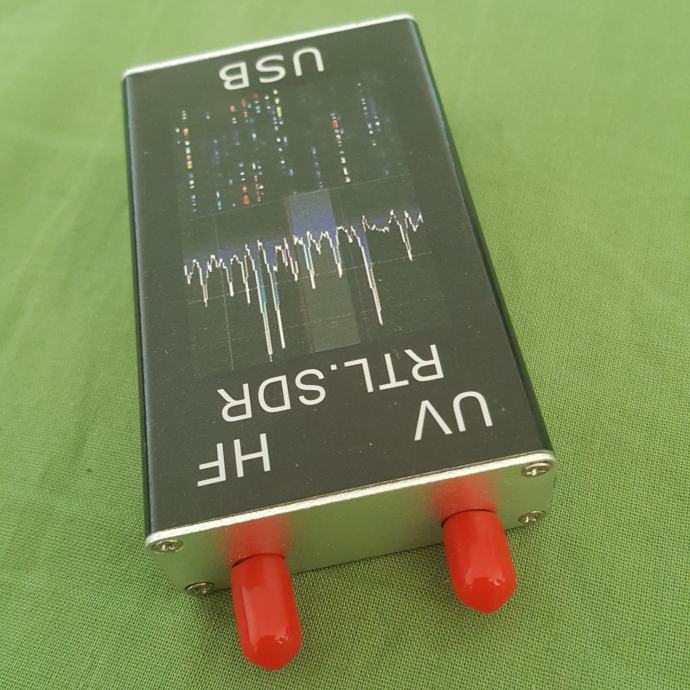

This is an RTL-SDR software defined radio receiver with RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz of instantaneous bandwidth. (HF works in direct sampling mode - V.3 models and above only). Perfect for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, Linrad, GQRX or SDR Touch on Android. Works on Windows, MacOS, Linux, Android and even embedded Linux computers like the Raspberry Pi.

Includes two telescopic antennas with magnetic mount. The short antenna is perfect for ADS-B when collapsed and works up to around 230 MHz when extended. The larger antenna is perfect for frequencies between 230 MHz down to 50 MHz. You can improve reception and stability of the large antenna by placing the magnetic base on any metal plate such as a cookie tin lid. For custom antennas note that this dongle has an SMA F connector (not RP-SMA).

This model has several key improvements over other models. It uses the improved R820T2 tuner, has a 1PPM TCXO (2 PPM initial offset, 1 PPM temperature drift), has improved component tolerances and an SMA F connector. It also comes with a software activatable bias-tee circuit for powering external devices such as LNA's and active antennas. It also has HF reception capabilities. Most standard RTL-SDR dongles can tune down to 24 MHz at the lowest. This model has hardware that unlocks the "direct sampling mode", and allows for tuning down to 500 kHz. There is a built in 25 MHz low pass filter for optimizing this mode.

Various other improvements over other models have also been applied. For example a choke has been added on the USB line and additional bypass capacitors and power line ferrites have been added for reduced internal & PC noise, the PCB has been redesigned for significantly lower noise performance, ESD protection has been improved, the front end circuit has been optimized for wideband use (other models are still optimized for DVB-T frequencies), the LDO has been upgraded, and several break out pads have been added for advanced users.

Requires USB 2.0 (works on most USB 3.0 ports, but we cannot guarantee it to work on all so please ensure your PC has a USB 2.0 port just in case). Installation on Windows is simple, please go to the free RTL-SDR quickstart guide for installation instructions.
