Hidroforna pumpa Grundfos CH4-60 trofazna

Nekorištena, nova, u original kutiji s uputama
Trofazna hidroforna pumpa Grundfos CH4-60 A-W-A-CVBV

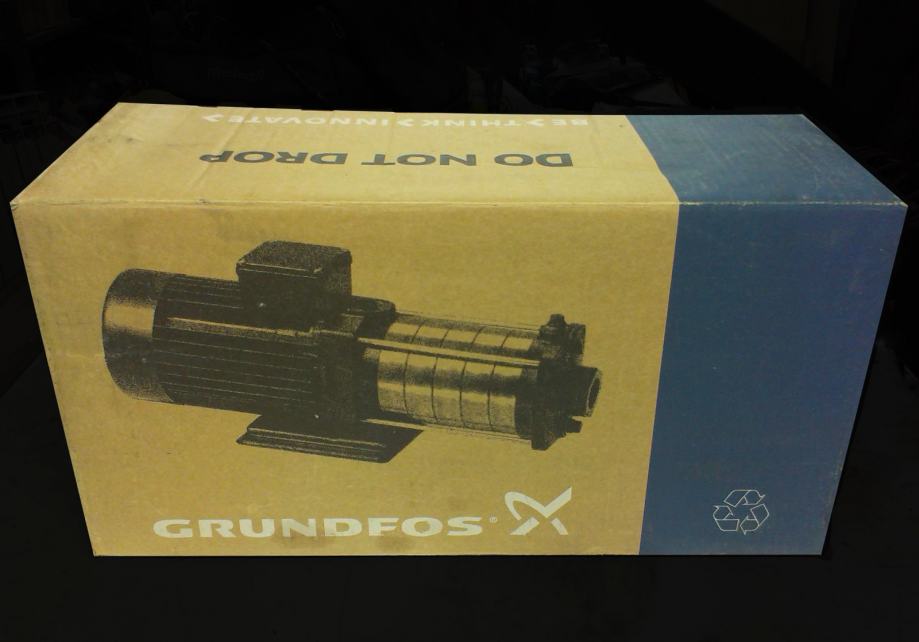

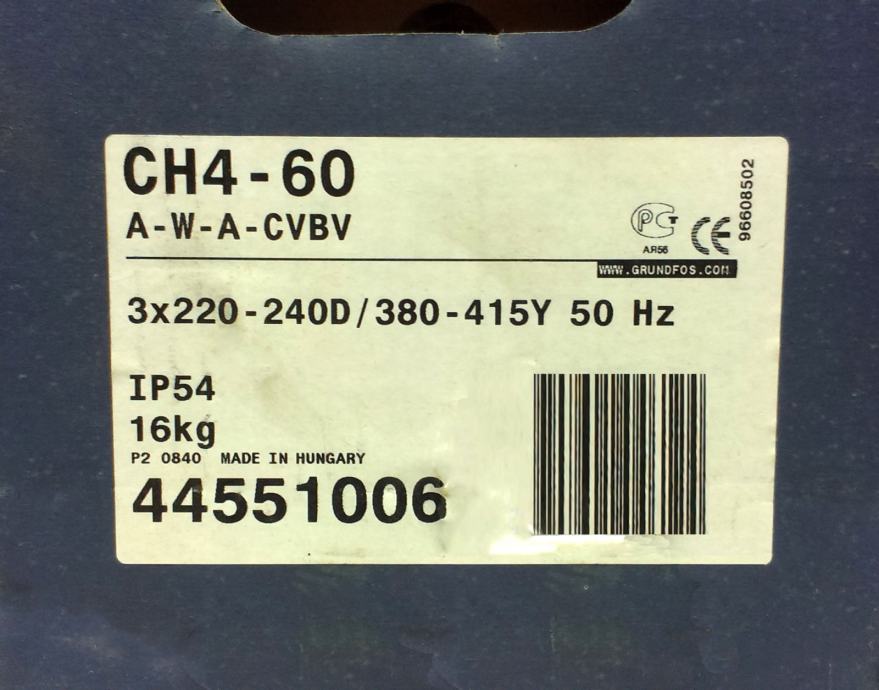

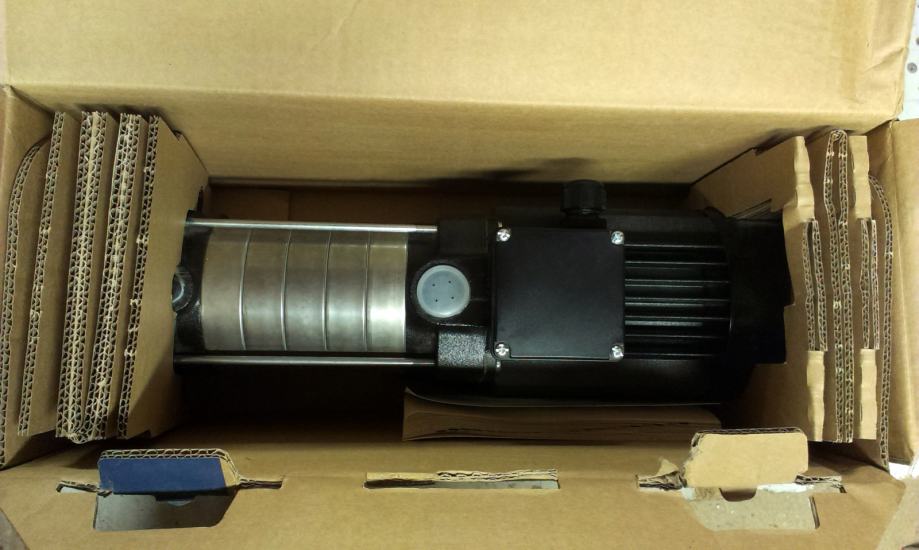

GRUNDFOS peterostepena, Trofazna pumpa s motorom. Sve je novo, nikada postavljana. I sada je u orginalnoj ambalaži, što se i vidi na slikama

Pumpa se nalazi u Zg. d. Dubravi

https://product-selection.grundfos.com/product-detail.product-detail.html?custid=GMA&productnumber=44552106&qcid=230035396
Specifications
Naziv proizvoda CH 4-60 A-W-A-CVBV
Product No 44551006
EAN number 5708601046124
Rated flow 5 m³/h
Rated head 34.7 m
Head max 54 m
Primary shaft seal CVBV
Pump version A
Model F
Materials
Pump housing Cast iron
Pump housing EN-JL1030
Pump housing ASTM 30 B
Impeller Stainless steel
Impeller DIN W.-Nr. 1.4301
Impeller AISI 304
Material code A

Installation
Range of ambient temperature 0 .. 55 °C
Max pressure at stated temp 6 bar / 90 °C
Max pressure at stated temp 10 bar / 40 °C
Connect code W
Pump inlet Rp 1 1/4
Pump outlet Rp 1
Liquid
Pumped liquid Water
Liquid temperature range 0 .. 90 °C
Liquid temperature during operation 20 °C
Density 998.2 kg/m³
Electrical data
Motor type MG80
Power input - P1 1510 W
P2 1170 W
Mains frequency 50 Hz
Rated voltage 3 x 220-240D/380-415Y V
Rated current 4, 4/2, 5 A
Enclosure class (IEC 34-5) IP54
Insulation class (IEC 85) F
Motor protec NONE
Thermal protec external
Others
Net weight 14.9 kg
Gross weight 16.3 kg
Shipping volume 0.042 m³














































Hidroforna pumpa Grundfos ch4-60
pumpe za hidrofor Grundfos ch4-60
pumpu za vodu Grundfos ch4-60
Grundfos CH4-60 A - W - A - CVBV Grundfos CH 4-60 A W A CVBV Grundfos CH 4 60 AWA CVBV
