KVMP preklopnik (switch) ATEN CS1734B MasterView, 4-Port USB

Preklopnik s pripadajućim kablovima i opremom. *** NOVO - NERASPAKIRANO ORIGINALNO PAKIRANJE S ZAŠTITNOM TRAKOM ***.
Zainteresiranima mogu poslati slike originalnog pakiranja iz svih uglova !

Šaljem dostavom.

Dodatne datoteke i opis proizvoda
Opis

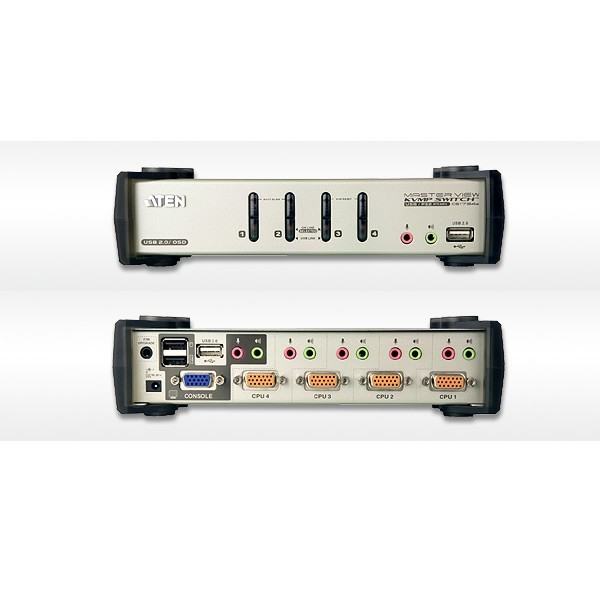

4-Port USB 2.0 KVMP™ Switch with OSD, The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.

4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls four computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access - ideal for IP phone users
Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality; 2048 x 1536; DDC2B
Supports widescreen resolutions
Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Video DynaSync - stores the console monitor\'s EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
LED Display for easy status monitoring
Easy installation no software required
Firmware upgradeable

*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers

Package Content

1x 4-Port USB 2.0 KVMP™ Switch
4x Custom USB KVM Cable Sets
1x USB-to-PS/2 Converter
2x OSD/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Manual
1x Quick Start Guide

Computer Connections
4
Port Selection
OSD; Hotkey; Pushbutton; Mouse
Connectors Console Port Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Speaker
2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
KVM Port Keyboard 4 x SPHD-15 Female (Yellow)
Video
Mouse
Speaker
4 x Mini Stereo Jack Female (Green)
Mic. 4 x Mini Stereo Jack Female (Pink)
Firmware upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Switches Selected 4 x Pushbutton
LEDs On Line/ Selected 4 (Orange)
USB Link 4 (Green)
Emulation
Keyboard / Mouse PS/2; USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-255 seconds (Default: 5 sec.)
Power Consumption
DC5.3V, 3.4W
Environment Operating Temp. 0-50?
Storage Temp. -20-60?
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.78 kg
Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm
