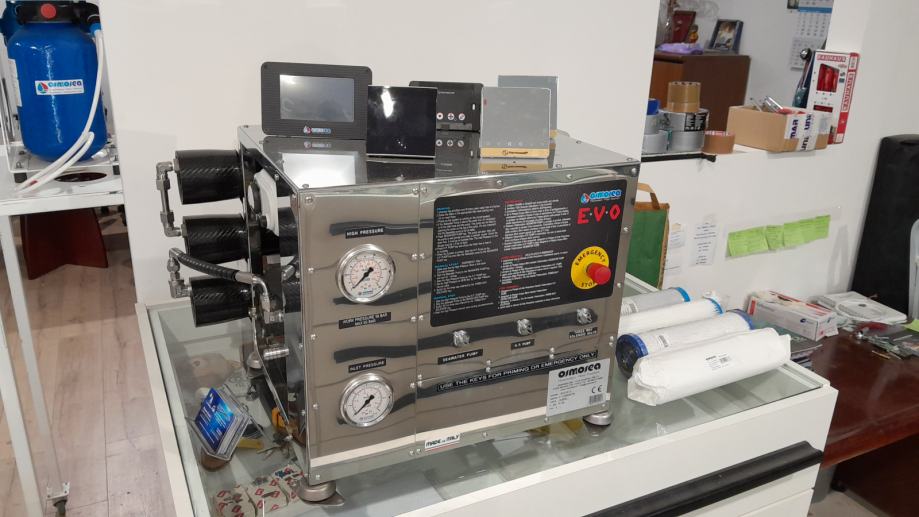

Watermaker Osmosea EVO 321S

Watermaker Osmosea EVO 321S

AUTOMATIC FUNCTIONS
▪ Freshwater quality control;
▪ Automatic Stop by timer or flowmeter;
▪ AFS (Automatic Flushing System);
▪ Periodic Flushing;
▪ APS (Automatic Pressure Setting);
METERS/MONITORING
▪ The digital display shows:
o Inlet pressure (bar);
o High pressure (bar);
o Salinity of freshwater produced (MicroSiemens);
o Partial and total flowmeter (Lt/h);
o Partial and total timer;
o Power consumption (A);
o Freshwater produced salinity Micro Siemens (μS);
▪ The Digital Comand Unit provide state-of-the-art technology and reliability with Automatic Fresh Water Flush Timing and sequential starting of electric motors with manual override;
▪ Inlet Pressure Control System;
▪ High Pressure Control System;
▪ Low Pressure Gauge;
▪ High Pressure Gauge;
PUMPS
▪ Seawater self-priming pump high efficiency, Stainless steel, horizontal, with two way inlet valve;

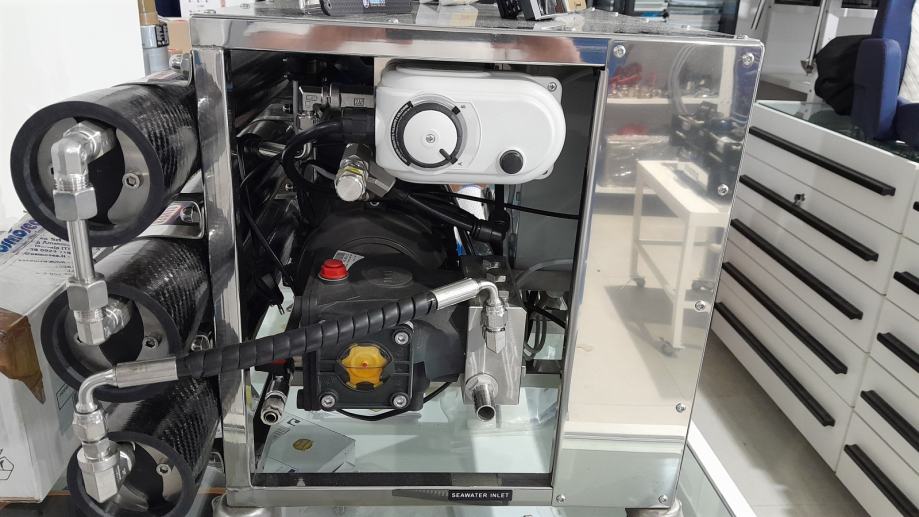

▪ High pressure piston pump, ceramic pistons, Viton® hydraulic seals;
STANDARD EQUIPMENT
▪ Digital Comand Unit IP 55;
▪ Touchscreen Remote Panel;
▪ Seawater pump;
▪ Pre-filters with 30 micron + 5 micron cartridges;
▪ Post Carbon filter with cartridge;
▪ Flushing Carbon filter with cartridge;
▪ Installation Kit; (Hoses, fittings, thru-hulls and clamps)
▪ Maintenance Kit; (N.1 filter change + chemical product for wintering)
SAFETY FEATURES
▪ Low pressure alarm;
▪ High pressure alarm;
▪ Water deflection valve prod

EVO 321S Specifications
Performance
Rated Performance / Product water produced: +-15% at 820 PSI / 57 BAR, 77°F / 25°C & 35,000 PPM TDS typical seawater
Production
Per Hour/ Day 140 lit / 36.98 gal - 3360 lit / 887.61 gal
Salt Rejection
(Chloride Ion)
Minimum 99.2%, Average 99.4%
Product Water Temperature
Ambient to feed water temperature
Pressure Adjustment
Automatic Controlled
Salinity Monitoring
Automatic electronic monitoring. Temperature compensated with the solid state continuous "Display" readout. The salinity monitoring components of the system give a continuous MicroSiemens readout in micromhos per cubic centimeter, are temperature compensated and of a fail safe design.
Salinity Range
Designed for seawater use up to 50,000 PPM TDS (NaCl) (typical seawater salinity is 35,000 ppm)
Temperature Range
Max. 102°F / 39°C, Min. 36°F / .2°C
System Feed Water
Flow: 3.96 gpm / 15 lpm

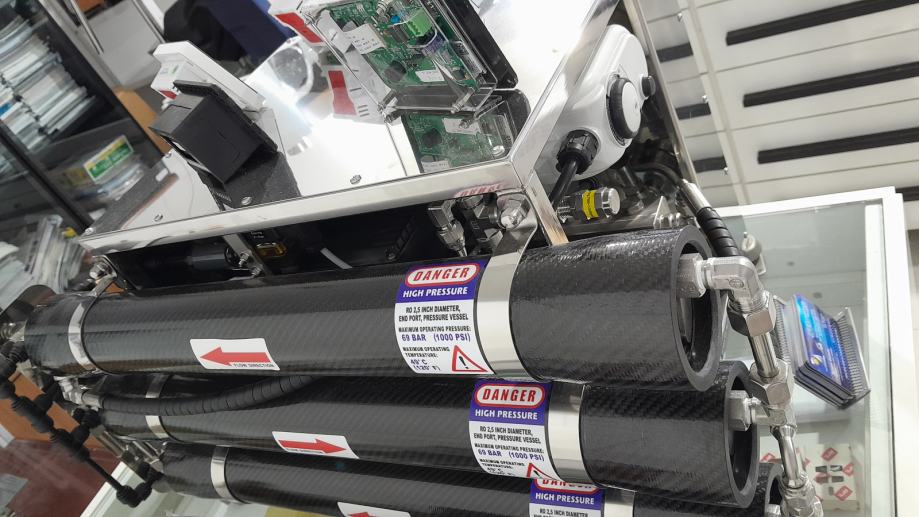

Reverse Osmosis Membrane
Selected High Rejection/High Yield aromatic tri-polyamid, thin film composite, spiral wound, single pass, high rejection reverse osmosis membrane element.
Chlorine Tolerance
0.1 PPM
pH Range
3-11 (typical seawater pH is 8)
System Pressure
Feed Water: Maximum 35 psi / 2.41 bar / 2.46 Kg/cm2
Weight 53 Kg
