SISTEMI ZA PROCISCAVANJE CRNIH, SIVIH I ZAULJENIH VODA
BIOLOGICAL SEWAGE TREATMENT SYSTEM

ISPORUKA ODMAH !!! roba na zalihi

Protecting the environment and preserving our seas and inland waters is of concern to us all. The current generation expects action, and our future demands it. At the same time, cost-effective operation is a key issue for fleet owners and the shipbuilding industry in this competitive world. A flexible, efficient solution is the only way to satisfy these often con-flicting requirements. We designed an innovative line of advance biological sewage treatment systems.
Our new MSD-III series features:
- Type approval from both Lloyd’s and the Netherlands Shipping
Inspectorate; MED IMO/Marpol certification.
- A competitive standard product range.
- All standard systems in stock.
- Custom construction for capacity ranging up to 400 people.
- Prompt and reliable delivery guaranteed by our strategically
located production facility in Amsterdam.
- The most compact biological process: Low sludge production
and simple, reliable process control thanks to our Fixed
Activated Sludge Technology (FAST ®).
- Unique combination of chemical-free disinfectant methods and
advanced Post-Filtration System.
- Possibility of integration with all vacuum-collecting system
brands.
- Cost-effectiveness and reliability: A single supplier for the
entire installation.
- Worldwide round-the-clock service and repairs carried out by
our own engineers.

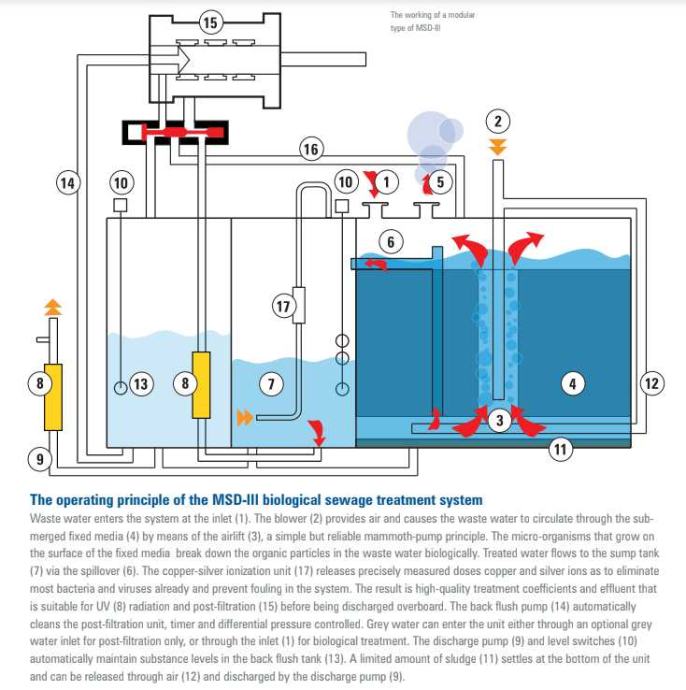

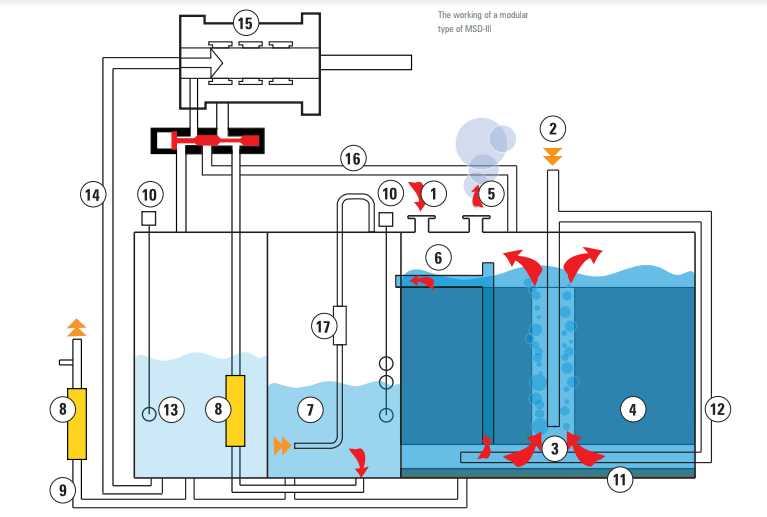

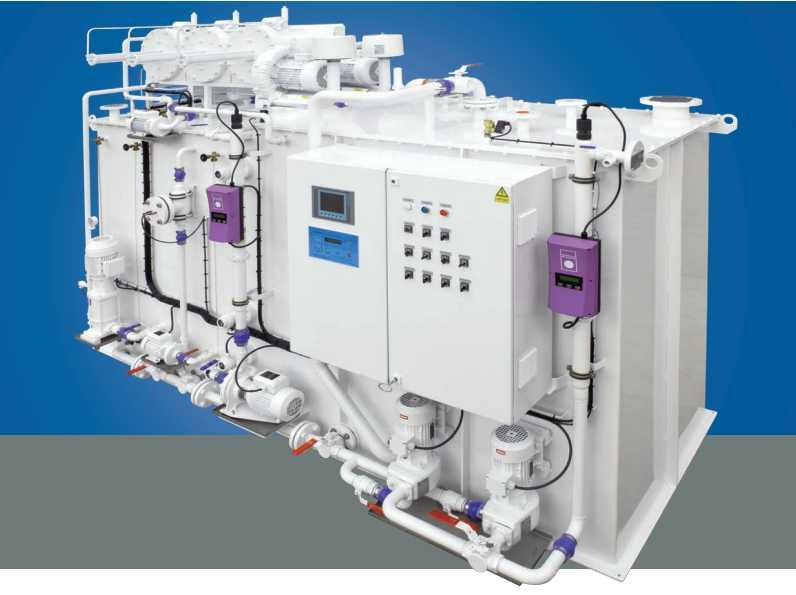

The operating principle of the MSD-III biological sewage treatment system

Waste water enters the system at the inlet (1). The blower (2) provides air and causes the waste water to circulate through the sub-
merged fixed media (4) by means of the airlift (3), a simple but reliable mammoth-pump principle. The micro-organisms that grow on
the surface of the fixed media break down the organic particles in the waste water biologically. Treated water flows to the sump tank
(7) via the spillover (6). The copper-silver ionization unit (17) releases precisely measured doses copper and silver ions as to eliminate
most bacteria and viruses already and prevent fouling in the system. The result is high-quality treatment coefficients and effluent that
is suitable for UV (8) radiation and post-filtration (15) before being discharged overboard. The back flush pump (14) automatically
cleans the post-filtration unit, timer and differential pressure controlled. Grey water can enter the unit either through an optional grey
water inlet for post-filtration only, or through the inlet (1) for biological treatment. The discharge pump (9) and level switches (10)
automatically maintain substance levels in the back flush tank (13). A limited amount of sludge (11) settles at the bottom of the unit
and can be released through air (12) and discharged by the discharge pump (9).
