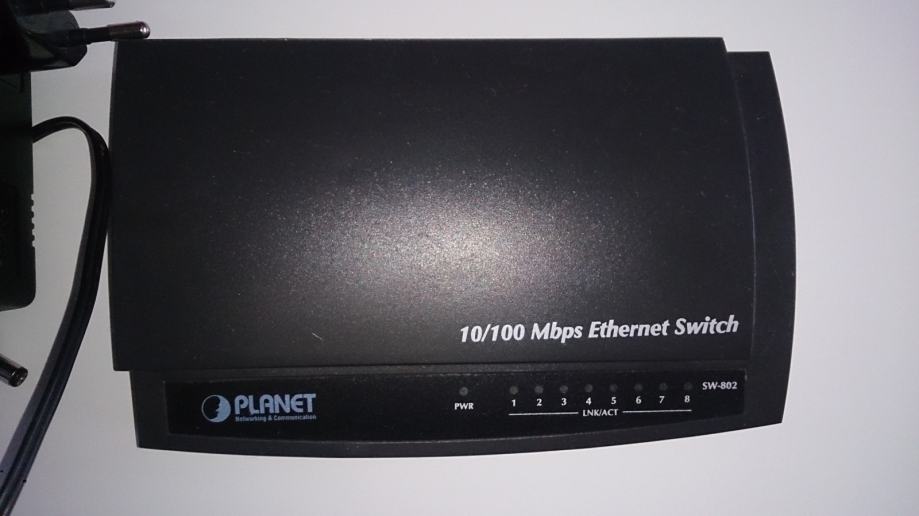

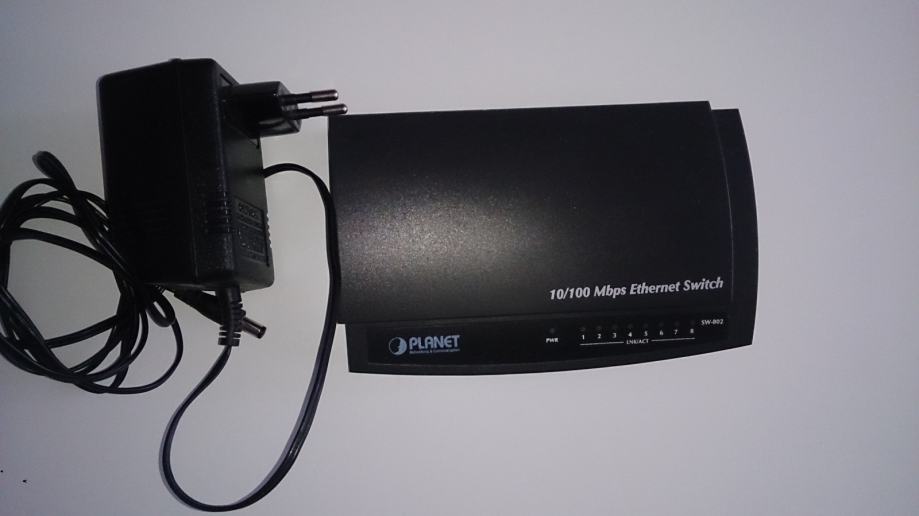

PLANET Preklopnik (Switch) 8-port 10/100Mbps sa 8-Port 802

Tehnička specifikacija

Key Features
RJ-45 INTERFACE

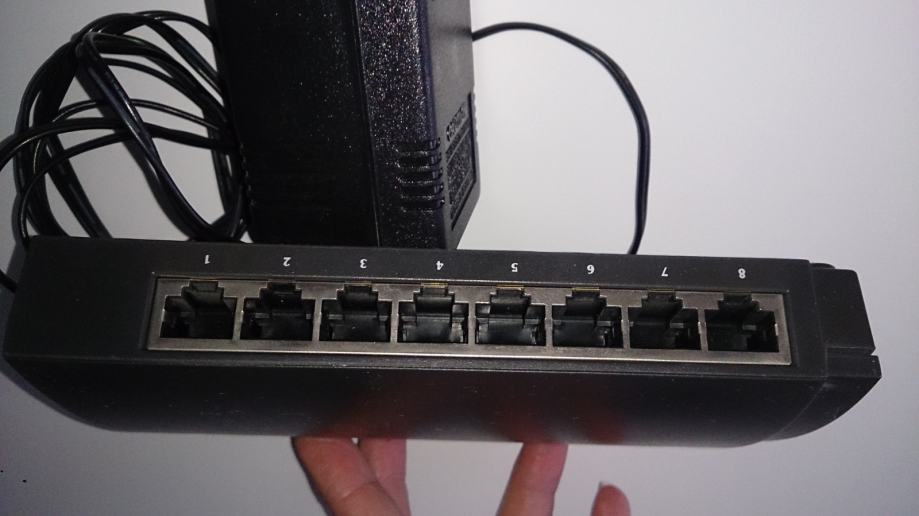

- 8-port 10/100Mbps Fast Ethernet ports
- 8-port supports 48V DC power to PoE Powered Device
POWER OVER ETHERNET
- Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 Watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
SWITCHING
- Hardware based 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X
- Flow control for Full Duplex operation and back pressure for Half Duplex operation
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- Automatic address learning and address aging
HARDWARE
- 12" desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- 1 silent FAN to provide stable and efficient power performance

Specification
HARDWARE SPECIFICATION
- Network Connector: 8-port RJ-45 for 10/100Base-TX
- PoE Inject Port: 8-port with 802.3af PoE injector function
- LED Display:
* System: Power (Green)
* Per port : PoE (Green); LNK/ACT (Green)
- Switch Architecture: Store and Forward switch architecture
- MAC Address: 2K MAC address table with Auto learning function
- Switch Fabric: 1.6Gbps
- Switch Throughput: 1.19Mpps @ 64Bytes
- Power Requirement: AC 100-240V, 50/60Hz, 1.5A max.
- Power Consumption: Max.135 Watts / 460 BTU
- Dimension (W×D×H): 280×180×43 mm
- Weight: 1.65 kg

POWER OVER ETHERNET
- PoE Standard: IEEE 802.3af Power over Ethernet / PSE
- PoE Power Supply Type: Mid-Span
- PoE Power Output: Per Port 48V DC, 350mA . Max. 15.4 Watts
- Power Pin Assignment: 4/5(-), 7/8(+)
- PoE Power Budget: 125 Watts

STANDARD CONFORMANCE
- EMI Safety: FCC Class A, CE
- Standard Compliance:
* IEEE 802.3 : Ethernet
* IEEE 802.3u : Fast Ethernet
* IEEE 802.3x : Flow Control
* IEEE 802.3af : Power over Ethernet

ENVIRONMENT
- Operating Environment: 0 - 50 Degree C
- Storage Environment: -40 - 70 Degree C
- Operating Humidity: 5 - 95%, relative humidity, non-condensing
- Storage Humidity: 5 - 95%, relative humidity, non-condensing

Cijena 150 kn + pp ili primopredaja Zagreb
