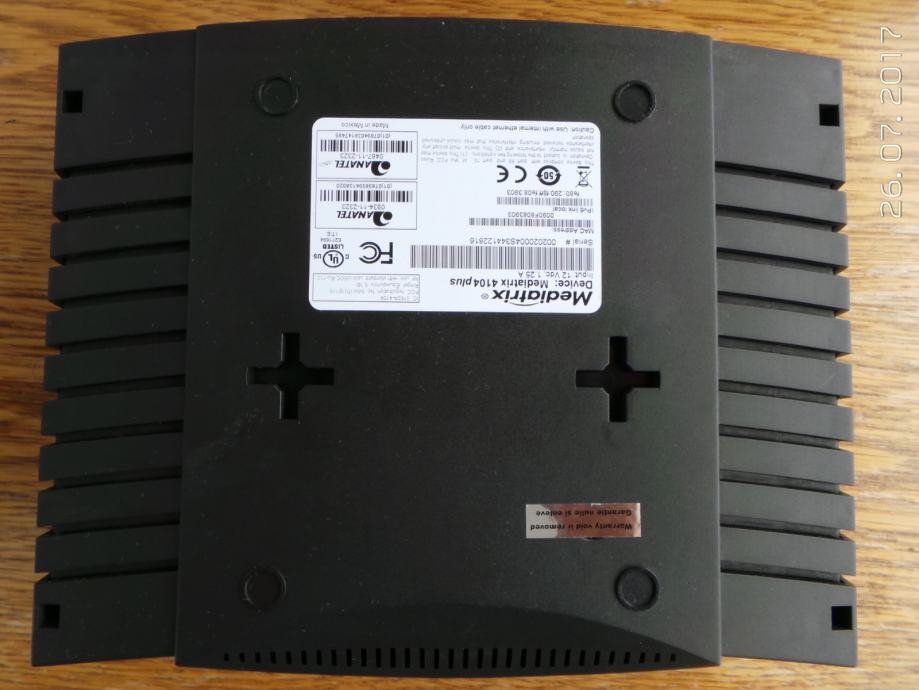

Mediatrix 4104 SIP VoIP Gateway, 4 FXS Ports - Protocols - SIP.

Uređaj je korišten jednu godinu koliko je trajao ugovor, dolazi sa AC/DC adapterom, LAN i telefonskim kabelom.

Product Description:

The Mediatrix 4104 is a high quality and cost efficient VoIP gateway connecting small offices to an IP network, while preserving investment in analog telephones and faxes. It allows Service Providers to deploy rapidly and economically their solutions in SOHOs and it is the ideal solution for small branch office connection to larger private networks. The Mediatrix 4104 connects up to 4 analog phones and/or faxes to a broadband modem. The Mediatrix 4104 is the new and improved version of the Mediatrix 1104. The Mediatrix 4104 enables cost-effective VoIP deployments in small offices for both IP Centrex and private network applications.
The Mediatrix 4104 has the additional benefit of supporting high compression codecs simultaneously on each analog voice ports, thus saving valuable bandwidth. As all other Mediatrix devices, the 4104 provides a web interface, giving users a convenient access to the unit for initial set-up. The devices can also auto-provision by fetching their encrypted configuration from a TFTP or HTTP server, making installation secure and transparent to the end-users. To further facilitate deployments, factory-loaded configurations are possible. In addition, an optional intelligent PSTN bypass allows Mediatrix 4104 users to make emergency calls and maintain their phone service in the event of a power outage or network failure.
Mediatrix 4104 Key Benefits
Best Total Cost of Ownership
Ease of deployment & management with autoprovisioning

Protect analog telephony investments with the VoIP benefits


Best Price Quality Ratio
High Voice Quality and Reliability
Wide support of countries
SIP/MGCP interoperability certified with key vendors
Brand New Mediatrix Package for VoIP FXS Interfaces
Hardware ready to support Security (SIPS/SRTP)
Transparent replacement of Mediatrix 1100 Series
Mediatrix 4104 Technical Specifications: IP Telephony Protocol SIP - RFC 3261 MGCP/NCS - RFC 3435
Voice Processing
Vocoders: G.711 (A-law, μ-law), G.723.1, G.726, G.729a/b
G.168 echo cancellation (64 ms)
DTMF detection and generation
Carrier tone detection and generation
Silence detection / suppression and Comfort Noise Generation level software adjustable
Configurable de-jitter buffer
Configurable tones (dial, ringing, busy)
Configurable transmit packet length
RTP/RTCP - RFCs 1889 / 1890 / 2833 / 3389
Fax and Modem Support
Group 3/Super G3 Fax real-time FoIP over clear channel (G.711), G.726 or T.38
T.38 Fax relay (9.6 k, 14.4 k)
G.711 Fax and Modem Bypass
Management
Web-based GUI (SIP only)
TFTP, HTTP configuration up- and download (Auto-provisioning)
TFTP, HTTP firmware upgrade
SNMPv1/v2/v3 agent (MIB II and private MIB)
WAN Connection
1 x 10/100 Base T Ethernet RJ-45 connector
Analog Connection
4 x RJ-11 connectors, analog phone/fax (FXS) interfaces
Bypass Connection
1 x RJ-11 connector, PSTN bypass
QoS TOS/DiffServ
IEEE 802.1p/Q
Enhanced Telephony Features
Call Forward / Call Transfer / 3-way Conference Call / Call Waiting / Caller ID on Call Waiting / Call on Hold
Dynamic de-jitter manager
Voice Activity Detection/ Comfort Noise
Operating Environment
Operating temperature: 0C to 40C
Storage temperature: -20C to 70C
Humidity: up to 85%, non-condensing
Power Supply
Internal off-line power supply connected to the AC main with a standard IEC-320 power cord
Unit Dimensions and Weight
4.9 cm x 22.0 cm x 17.6 cm (1.9 in. x 8.7 in. x 6.9 in)
Unit weight 545 g (1.2 lb)

***Napomena, ja samo prodajem uređaj i jamčim da je ispravan,
a što se tiče uporabe uređaja i njegovih mogućnosti to morate provjeriti i dogovoriti sa svojim davateljem usluga.***
