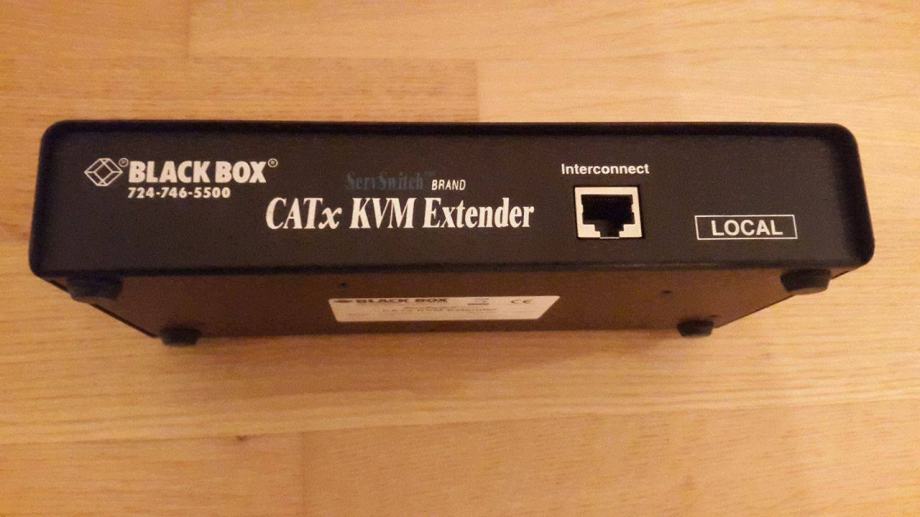

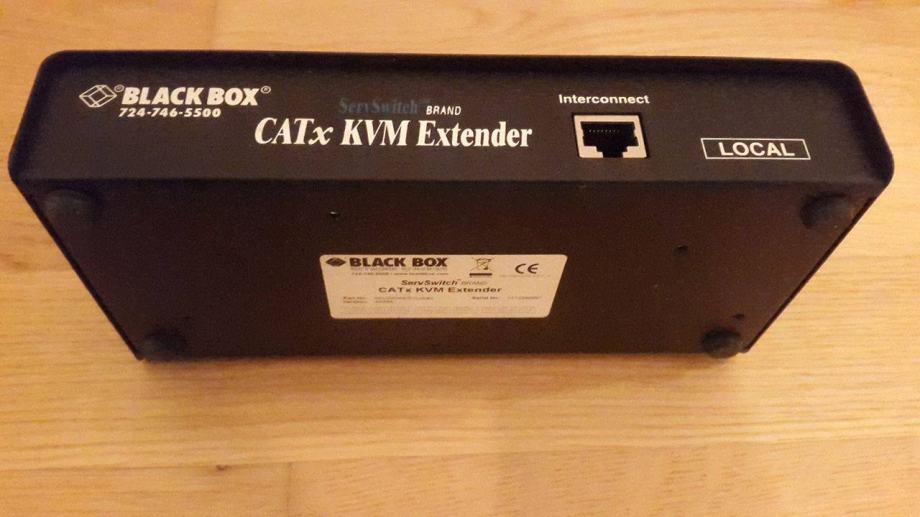

CATx KVM Extender Black Box

Prodajem CATx KVM Extender Black Box. Tip uređaja: ACU2009A-S (Local).
Ulazi i izlazi za tipkovnicu i miša su PS/2 ali s uz uređaj dolaze i PS/2 na USB adapteri.
Maximalna udaljenost CPU od remote uređaja je do 300 metara.

Dual-access model enables you to operate your computer from the local or remote site.
At a maximum distance of 984.2 feet (300 m), you get resolution up to 1280 x 1024.
Get a maximum resolution of 1600 x 1200 at up to 656.1 feet (200 m).
Remote unit includes built-in skew compensator.
Video settings store in nonvolatile memory.
Flash-upgradable standalone remote unit.
Keyboard/mouse emulation provides keep-alive functionality.
All monitor skew compensation can be fine-tuned easily via keyboard hotkey commands—even at long distances and high resolutions.
Single-access kits are available.
Models with serial and audio support are also available.
Rackmount in our RMK19U-X3 19" Rackmount Kit.
To convert your USB-style keyboard and mouse signals to PS/2®, order the USB to PS/2 Converter (KVUSB).
The extender comes in a kit that includes local and remote units, which are connected with a single CAT5 or higher cable. All keyboard, mouse, and video signals are fully buffered to ensure consistent remote operation of your PC.


Clamping Voltage 15 volts
Compatibility Keyboard: PS/2, PC/AT® (with optional AC244A and FA212-R2);
Video: VGA, Super VGA, XGA;
Mouse: PS/2 mouse only (user)
Resolution (Maximum) 1600 x 1200, 60 Hz at 200 m (656.1 ft.) and 1280 x 1024, 75 Hz at 300 m (984.2 ft.); higher resolutions may be possible at shorter distances
CE Approval Yes

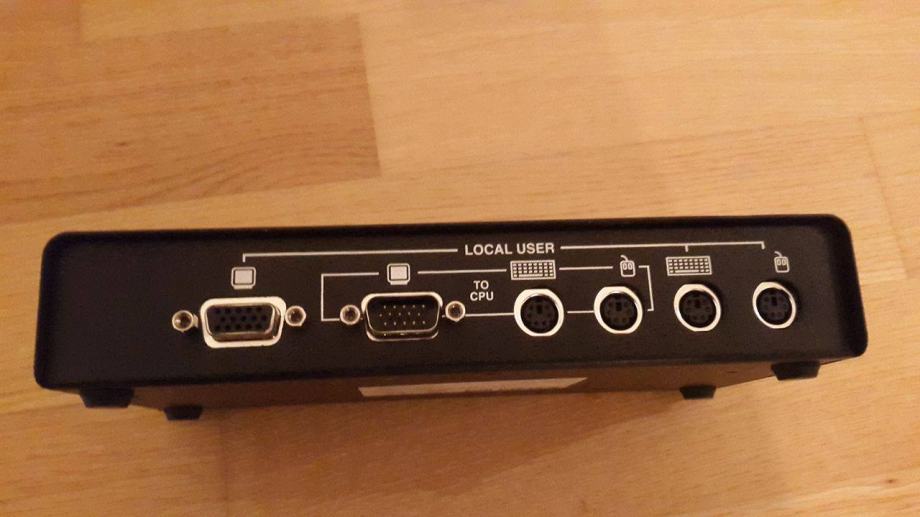

Connectors (4) 6-pin mini DIN F, (1) HD15 M, (1) HD15 F, (1) RJ-45
Power Local unit: From the PC;
Remote unit: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector
Size Local unit: 1.7"H x 3.9"W x 7.8"D (4.3 x 9.9 x 19.8 cm);
Remote unit: 1.7"H x 5.7"W x 5.5"D (4.3 x 14.5 x 14 cm)
