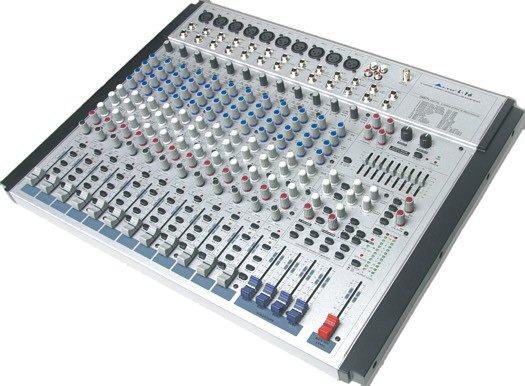

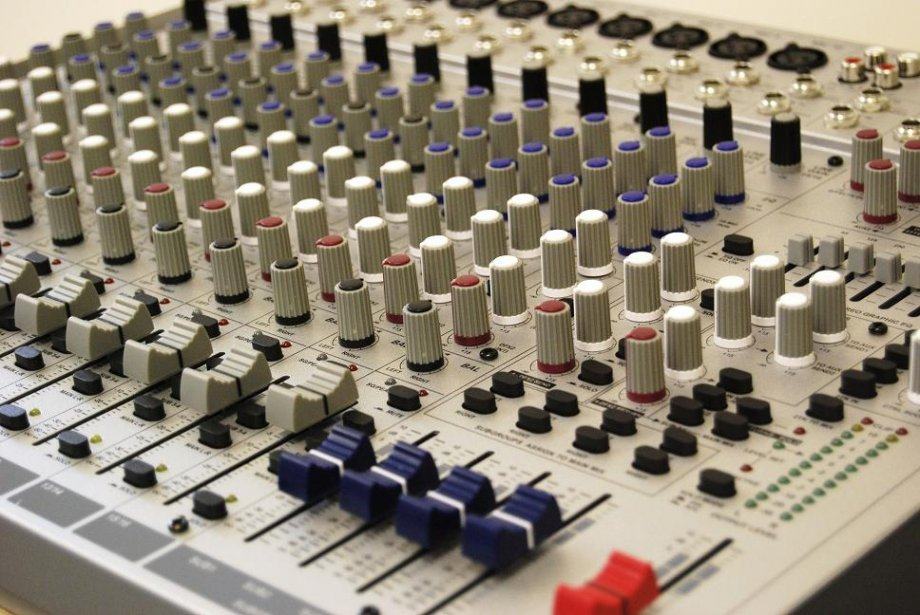

Alto L16 pasivni mixer

Alto L16 pasivni mikser.

- 8 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz-18dB/Oct. and insert
- Each input channel features MUTE, SOLO, SIGNAL & OVERLOAD LEDs
- TRIM and ＋48V Phantom Power for mono/mic inputs
- 4 stereo inputs with balanced TRS jack with level select switches inputs 9 and 10 have mic input too
- 3-band EQ with sweepable MID on mono inputs
- 4-band fixed EQ on stereo inputs
- 4 AUX sends AUX sends 1 & 2 switchable
- PRE- /POST- FADER (for monitoring/effects sends purposes) - AUX sends 3 & 4
- POST-FADER (for internal DSP FX and/or external FX unit)
- Master AUX sends with level and SOLO switch
- 4 stereo AUX Returns with smart signal routing system for higher versatility
- 24-bit internal DSP with 256 effects,
- 16 presets by 16 variations with DSP MUTE
- switch and Peak LED and with discrete levels for AUX 1 & AUX 2 monitoring

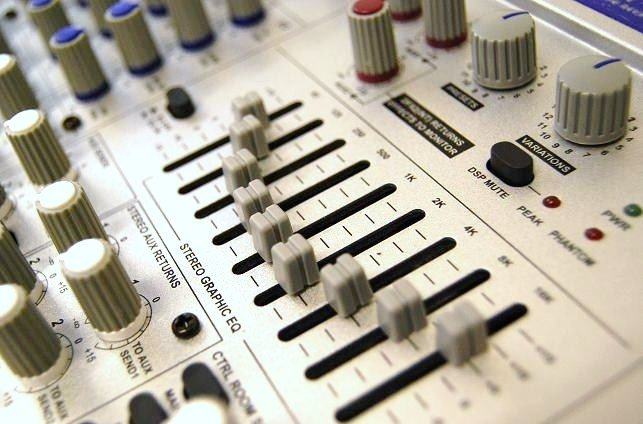

- Main Out features a switchable 9-band graphic EQ
- Channel Inserts and Direct Out in each mono input
- 2-track IN/OUT with discrete switches for routing to Control Room and/or to Main Mix
- Two different ways of SOLO PFL (Pre-fade listen)
- AFL (After-fade listen) for a better control over signal
- Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones & Control Room
- Main Mix inserts for flexible connection to outboard equipment

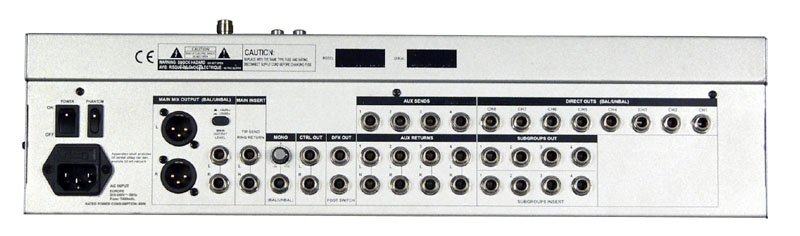

- Balanced XLR & TRS jack output
- Total outs: 12 for L-16 (8 direct outs ＋ 4 sub-groups),
- Dimensions (W×D×H): 518×400×38/115mm (20.4"×15.7"×1.5/4.5")
- Weight: L-16: 7.8kg (17.2 lb)

Na razglasu je sve u ispravnom stanju, osim kanala broj 7 koji ima problem s ulaznim signalom. Sve ostalo je u savršenom stanju.
