Amino A140 next generation HD IP TV set-top box (STB) HDMI S/PDIF USB

Nov, kupljen 2013

- Prodajem ili Mijenjam - Pogledajte i ostale moje oglase !

Neraspakiran, u kutiji kako je kupljen, prodajem.
Cijena u UK:

Ex. VAT: £180.00
Inc. VAT: £216.00

http://www.onevideo.co.uk/amino-a140.html

The AmiNET A140 - the next generation MPEG-2 and MPEG-4 high definition IPTV/OTT set-top-box (STB) for HD deployments.

High definition capability and OTT functionality are becoming must have features in new IPTV deployments worldwide. The Aminet A140 is a cost-effective HD STB that provides the perfect balance between price, specification and high performance. Stylish and compact, the Aminet A140 now enables IPTV providers to deliver a compelling mix of broadcast, on-demand and OTT services with new features including HTTP live streaming (HLS) and HTML5 technologies.

The A140 is complemented by an extensive range of set-top-box middleware, browsers, conditional access and DRM options. All STB functions can be controlled from a browser using the Amino JMACX system.

High definition

Flat-panel TVs have rapidly evolved in recent years from standard definition to HD Ready and now Full HD. The A140 can decode resolutions up to 1080i 60Hz but is also able to de-interlace content and display it progressively - such as de-interlacing 1080i to 1080p - to deliver the picture quality your customers expect on their high-end LCD and Plasma TVs.

Advanced CODEC Support

The support of low bitrate advanced video codecs provides operators with the opportunity to grow revenue generating services, while maximising the efficient use of network bandwidth, creating the ability to:

Reach a greater number of subscribers
Increase the number of interactive and multicast channels
Enhance viewing experience with HD channels.
Unique

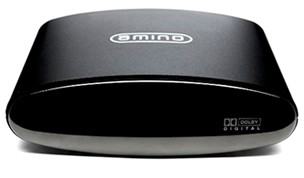

The A140 is a very compact STB, but is able to deliver high performance, along with the required connectivity including; analogue AV, HDMI, USB & S/PDIF. The unique Amino styling sits elegantly with any latest top-specification AV equipment in the living room.

Extensive ecosystem support

The A140 is supported by an extensive ecosystem of middleware, browser, conditional access and DRM options required for the widely varying configurations of the IPTV market.

Comprehensive design tools and support

Amino software technology is based on open standards such as Linux and HTML. Application developers for the A140 benefit from the Amino JMACX system which enables full control of the STB functions from the browser. JMACX provides the service operator with a powerful set of HTML and JavaScript extensions which allow simple and highly effective user interface designs to be created or ported. For increased flexibility in creating custom applications ADKs and SDKs are also available.

Software updates and maintenance

The A140 holds a complete software image in on-board flash memory, and is also designed to support secure bootstrap from a multicast server. At any time, a deployed A140 can be upgraded with a new software image via the secure multicast server. The multicast approach ensures that very large numbers of deployed set-top boxes can be upgraded without placing an individual load on the server or the network. For security, software images can be signed with keys unique to each deployment.

Benefits

Can de-interlace content for progressive display, this means great picture quality for LCD and Plasma TVs
High performance CPU, Provides fast video processing
Stylish, pleasing design with a wide range of connectivity in a compact package

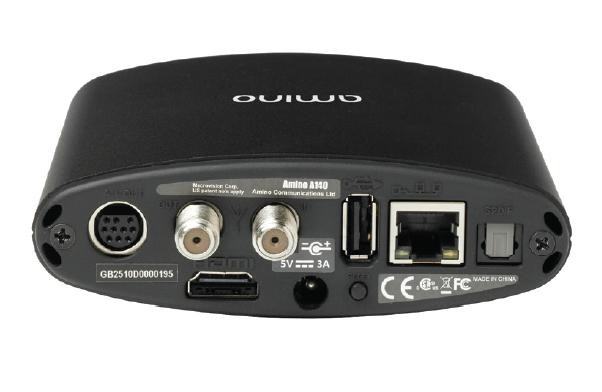

Mini DIN, HDMI, USB, S-Video, S/PDIF and RF connectors,
Software reset button, this provides a method of software recovery in the field
Software functions controlled from browser, allows developers to create effective user interfaces via the Amino JMACX extensions
ADKs and SDKs available, Scope for further development of custom software applications
Accepts a multicast software image, enables software upgrades to be deployed in the field
Security key signing, Unique protection to each deployment
Please note the supply of a browser on Amino devices is not covered by any warranty, only the hardware is covered against defects.

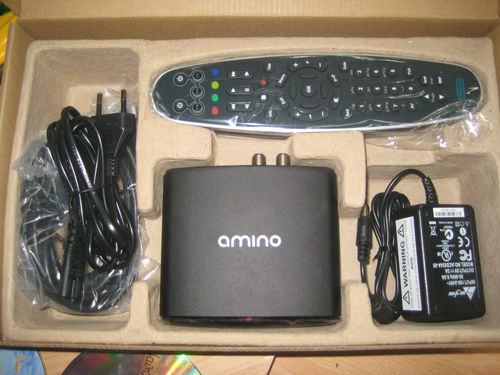

Whats in the Box?

A140
Stand
Power supply

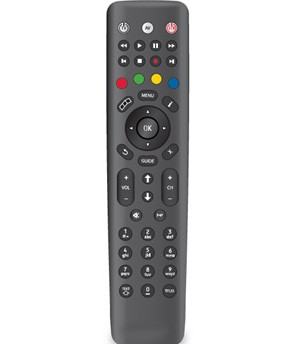

Willow remote control
2 * AAA batteries
YPrPb + composite (+stereo audio) cable
User guide
Size and weight:

114mm x 100mm x 35mm. 280g (excluding accessories and packaging)

Inputs:

Ethernet 10/100 BaseT via RJ-45 shielded connector

Outputs:

HDMI 1.3a. (excl. Deep colour and DTS audio) with HDCP. S/PDIF (optical).

USB2.0. 10-way Mini-DIN for Composite video, Component (YPrPb),RGB, S-Video and analogue audio. RF Mod and loop through.

Power:

5V DC at 1.5A via external power supply Less than 8W typical usage (external supply input voltage 100-240V AC 50-60Hz, 0.8A max, output 5VDC 3A)

Codecs:

MPEG-2 MP@HL. MPEG -4 pt10 AVC/H.264 HP@L4

Video resolutions:

Decodes up to 720p and 1080i. Displays up to 1080p

Graphics resolutions:

HD graphics up to 1280x720

Audio:

Stereo audio and Dolby 5.1 surround via

S-PDIF and HDMI. Dolby Digital+ pass through to external decoder

Security:

Wide selection of DRM and Conditional

Access support. HDCP on HDMI.

Macrovision (optional)

Memory:

128MB Flash, 256MB RAM

Front panel LEDs:

Power on/IR command received (Red)

Operating environment:

ETS 300-019-1-3 Class 3.1

EMC conformance:

FCC Part 15 class B.

2004/108/EC EN55022

Safety approvals:

CAN/ CSA-C22.2 No. 60950-1-03 EN60950

RoHS:

2002-95-EC

WEEE:

2002-96-EC

Operating temperature:

0˚C (32˚F) to 40˚C (104˚F)

Storage humidity:

5% to 95% RH (non-condensing)


Manufacturer # A140
Manufacturer Amino
Codec H.264, MPEG-4 AVC, MPEG-4 , MPEG-2
Video Outputs Composite, S-Video, Component, RGB, HDMI, RF Modulator
Video Inputs No
Video Inputs Resolution No
Output Resolution 525-line NTSC, 625-line PAL, HDTV 1080i, HDTV 720p
Audio Outputs No

Manufacturer Amino
Part Number A140
Price Availability: In stock.

Ex. VAT: £180.00
Inc. VAT: £216.00

------------------------
