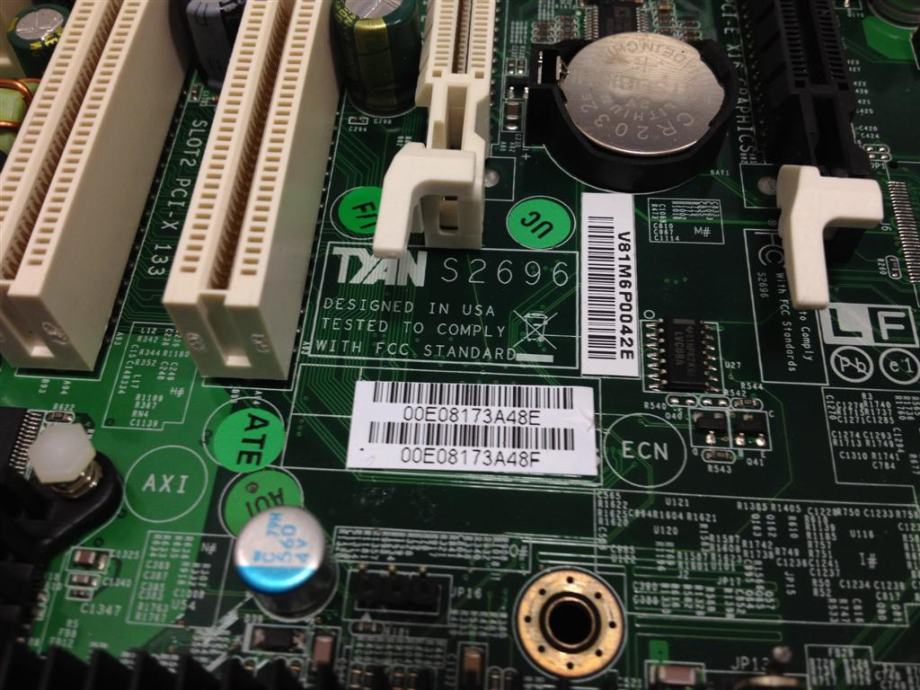

Tyan Tempest i5000XT S2696 Server/radna stanica matična ploča

CIJENA prema dogovoru!!!
Matična ploča za server/radnu stanicu-nova-orginal zapakirana (Otpakirana ISKLJUČIVO radi fotografiranja)!
Processor
· Dual LGA771 sockets
· Supports up to two Intel Xeon processors 5000/ 5100 series ("Dempsey/Woodcrest"); dual-core
· 1333/1066/667 MHz FSB; VRD 11.0
Chipset
· Intel 5000X chipset
· Intel 6321ESB I/O Controller Hub
· Winbond 82627EHG Super I/O chip
Memory
· (8) 240-pin DDR2 FBDIMM sockets
· Four memory channels; supports ECC DIMMs
· Maximum of 32/16GB of DDR2-533/667
Expansion Slots
· (2) PCI-E x16 slots (one x4 sig. from EBS2; one x16 signals for graphics cards)
· (1) PCI-E x8 slot (x4 sig. from EBS2)
· (2) PCI-X 133/100MHz slots from EBS2
· (1) PCI 32-bit 33MHz slot
System Management
· ADI ADT7470 Hardware Monitor
· CPU thermal & voltage monitor support
· Five (5) fan headers (4-pin configuration)
Integrated Audio Controller
· HDA link; SPDIF in/out port in rear
· RealTek ALC888 controller (High-Def. Audio)
· Stacked Mic-in/Line-in/Line-out rear ports
· Front panel audio header
· CD-in, Aux-in headers (4-pin configuration)
Integrated SATA Controller
· (6) SATA-II ports running at 3.0Gb/s
· RAID 0, 1, 5, and 10 supported
(RAID 10 only supported under windows)
Integrated SAS Controller
· LSI 1068E SAS controller
· (8) SAS ports; RAID 0, 1, and 1E supported
· Supports Integrated Mirroring, Integrated Enhanced Mirroring, and Integrated Stripping
Integrated FireWire (1394a) Controller
· TI TSB43AB22 1394a controller
· 1394a channel for rear (connector)
· 1394a channel for front (header)
Integrated LAN Controllers
· Intel Gigabit from ESB2 (w/ dual pors "Gilgal")
Trusted Platform Management (TPM)
· Infineon SLB9635TT 1.2 (w/ 5000X-G chipset)
BIOS
· Phoenix BIOS on 8Mbit Flash ROM
· Support ACPI 2.0
· PXE via Ethernet, USB device boot
· PnP, DMI 2.0, WfM 2.0 Power Management
· User-configurable H/W monitoring
· Auto-configuration of hard disk types
· Multiple boot options
· 48-bit LBA support
Form Factor
· SSI / Extened ATX footprint (12" x 13")
Power
· EPS12V / SSI (24 + 8 + 4 pin) power connectors
Regulatory
· FCC Class B (Declaration of Conformity)
· European Community CE (DoC)
