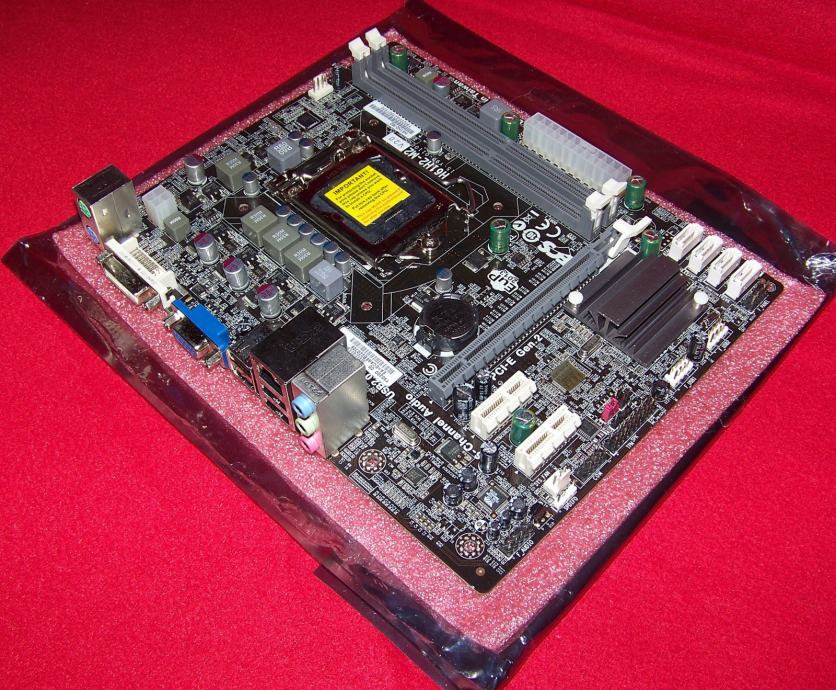

Matična ploča ECS H61H2-M2 (V2.0) ,socket 1155, Dual-channel DDR3

5 Phase Power Design
Supports Intel® K Series unlock CPU
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
ECS MIB III - A friendly interface for overclocking
Intel® 22nm 3rd generation Multi-Core CPU support
Intel ® VRD 12 Ready
Supports DirectX® 11 to enhance graphical performance
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Free Bundle: CyberLink Media Suite
ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF

CPU
º Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º 5 Phase Thermal Design Power
º VRD 12.0
º Solid Capacitor for CPU side
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support

CHIPSET
º Intel® H61 Express Chipset

GRAPHICS
º Support Intel® HD Graphics 2500/4000(Intel 3rd gen CPU)
º Supports DirectX® 11
º *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket
º Supports OpenGL 3.1(Intel 3rd gen CPU)
º Supports OpenCL 1.1(Intel 3rd gen CPU)

MEMORY
º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*

EXPANSION SLOT
º 1 X PCI Express X16 Gen 3.0 slot(s)
º 2 X PCI Express X 1 Gen 2.0 slot(s)

Storage
º Support by Intel® H61 Express Chipset
• 4 X Serial ATAII 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions

Audio
º 6-Channel HD audio CODEC
º Compliant with HD audio specification
º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.
º BluRay DVD/HD DVD support

LAN
º AR8152-B 10/100Mbps Fast Ethernet Controller
º (AR8151-B Gigabit Fast Ethernet Controller optional)
º Wake-On-LAN
º Ultra low power consumption

USB
º Support by H61 Express Chipset
• 4 X USB2.0 port(s) Up to 480 Mb/s

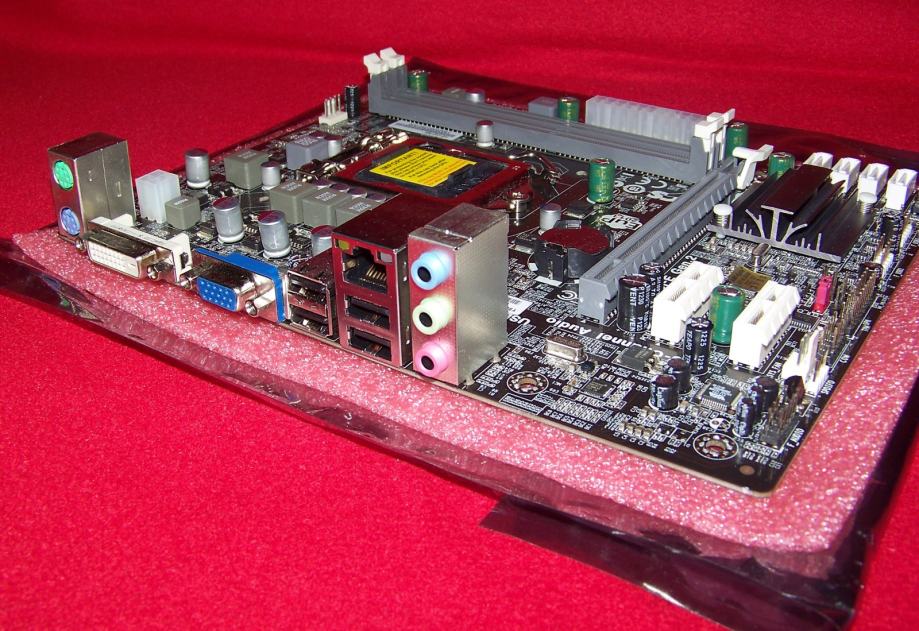

REAR PANEL I/O
º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s) (optional)
º 1 X DVI-D port(s)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS
º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 2 X USB 2.0 header
• Support additional 4 USB ports
º 1 X S/PDIF out header
º 4 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS
º AMI BIOS with 32 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 3.0 & DMI
º F7 hot key for boot up devices option
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey

FORM FACTOR
º mATX Form Factor
º 225mm(W)*180mm(H)


Moguca proba prije kupnje!!!!! (I ugradnja u računalo!!)


infodugy@gmail.com
molim bez SMS-a !!!



NE ŠALJEM POUZEČEM !!!!!!!
Predmet šaljem preporučeno plus u zaštitnoj ambalazi na rizik kupca po primitku uplate.Poštarina prema tezini.Kupac iz Zagreba može preuzeti predmet na adresi.
