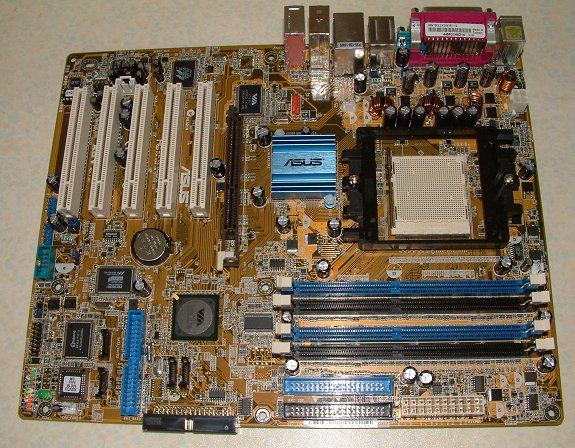

ASUS A8V DELUXE WI-FI Edition Socket 939

CPU
Socket 939 for AMD Athlon 64 FX / Athlon 64
AMD64 architecture enables simultaneous 32- and 64-bit computing
Supports AMD Cool 'n' Quiet Technology

Chipset
VIA K8T800Pro
VIA VT8237

System Bus
2000 MT/s

Memory
4 x 184-pin DIMM Sockets support max. 4GB DDR400/DDR333/DDR266 non-ECC un-buffered DDR SDRAM memory
Dual Channel Memory Architecture

Expansion Slots
1 x AGP8X (1.5V only)
5 x PCI

Storage
South Bridge
2 x UltraDMA 133/100/66/33
2 x Serial ATA, support RAID 0, RAID 1, and JBOD
Promise 20378 RAID controller
1 x UltraDMA 133/100/66/33
2 x Serial ATA
Support RAID 0, RAID 1, RAID 0+1, and Multiple RAID

AI Audio
Realtek ALC850, 8-channel CODEC
Audio Sensing and Enumeration Technology
Three Universal Audio Jack (UAJ)
Coaxial/Optical S/PDIF out ports on back I/O

IEEE 1394
VIA 1394 Controller supports 2 x 1394 ports

USB 2.0
8 USB2.0 ports

AI BIOS
CrashFree BIOS 2
Q-Fan 2
Post Reporter

AI Overclocking
ASUS JumperFree
CPU, Memory, and AGP voltage adjustable
SFS (Stepless Frequency Selection) from 200MHz up to 300MHz at 1MHz increment
ASUS C.P.R.(CPU Parameter Recall)

BIOS Feature
4 Mb Flash ROM
AMI BIOS
PnP
DMI2.0
WfM2.0
SM BIOS 2.3 Special Features
ASUS Wi-Fi@Home
ASUS MyLogo2
ASUS Multi-language BIOS
ASUS Instant Music
ASUS EZ Flash

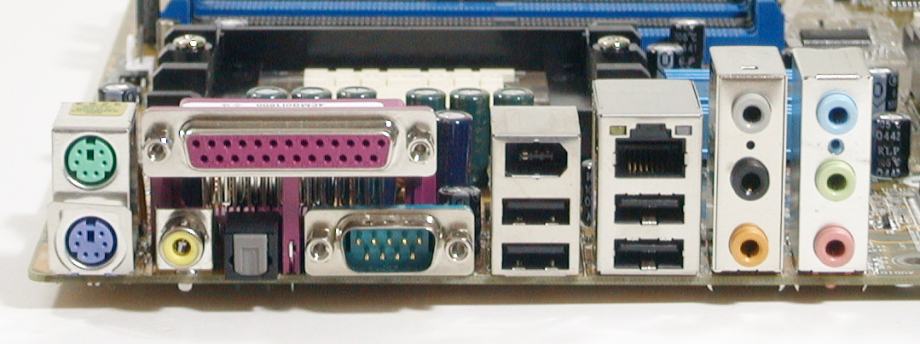

Back Panel I/O Ports
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x 8-channel Audio I/O
1 x RJ45
1 x Optical S/PDIF Output
1 x Coaxial S/PDIF Output
4 x USB 2.0/1.1
1 x IEEE1394

Internal I/O Connectors
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
CPU / Chassis / Power FAN connectors
20-pin ATX Power connector
4-pin ATX 12V Power connector
Chassis Intrusion
CD / AUX audio in
IEEE1394 port
GAME/MIDI connector
COM connector
Front panel audio connector

Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, Chassis Intrusion

Support CD
Drivers
ASUS PC Probe
Trend Micro PC-cillin 2002 anti-virus software (OEM version)
ASUS LiveUpdate Utility

Accessories
ASUS WiFi-g card (on Wireless edition only)
InterVideo WinDVD Suite Platinum
User's manual
2 x UltraDMA cables
IDE cable
FDD cable
4 x Serial ATA cables
2 x 2-port SATA power cables
2-port USB2.0 / Game module
I/O shield
IEEE1394 cable

Form Factor
ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)
