SilverStone Lascala LC18 HTPC Case with Touch Screen

Prodajem PC kučiste sa LCD Touch ekranom nikada korištenim, kompletno od aluminija.

LC18
INTRODUCTION
When SilverStone engineers set out to create an HTPC enclosure with an integrated touch screen, they quickly realized the need to do more than just dropping a screen in front of an ordinary case. Users of cases at this caliber will demand compatibility with the best hardware components in the world. Therefore, an all new aluminum chassis was designed from the ground up to meet these demands. Borrowing from the superb airflow layout first pioneered in the LC16M, the LC18 can house any CPU with minimal noise thanks to its free-flowing dual 80mm exhausts and large intake vents. An innovative hard drive bracket was also created exclusively for LC18 to ensure top of the line graphics cards and capture cards can be used with little or no sacrifice in hard drive space. The precisely calculated distances between hard drives will ensure safe running either passively or actively (by mounting bottom feeding intake fans) for any hard drives installed. This exceptionally powerful chassis is then used to hold a HDTV-like 7” touch screen with brilliant wide-aspect ratio resolution for clear text and undistorted images. For the most creative users who demand the best, the LC18 is a perfect complement for either home or work.



SPECIAL FEATURES

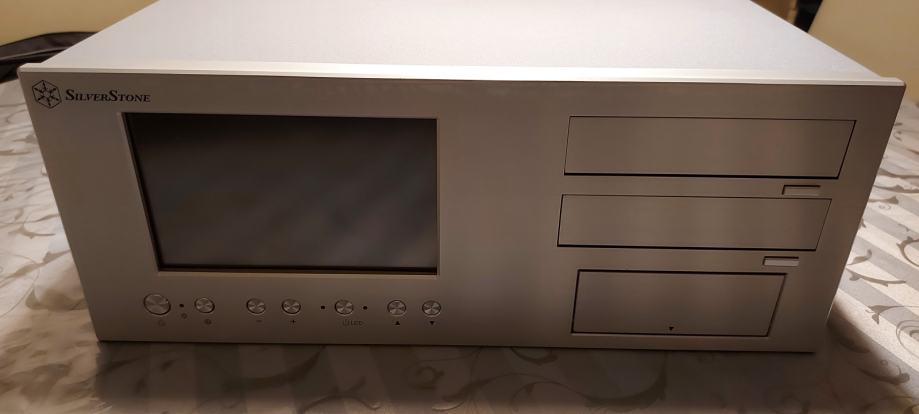

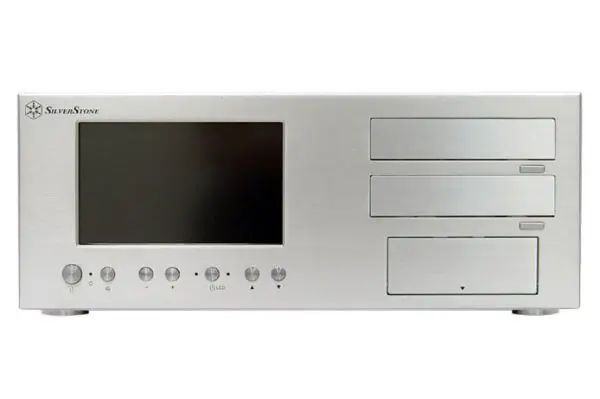

• Integrated 7” touch screen panel
• Premium, all aluminum construction
• Superb fit and finish

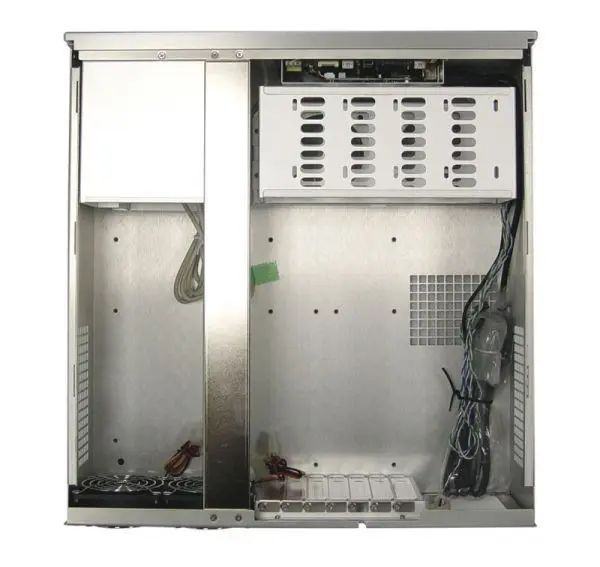

• Exceptional storage space
• Next generation cooling layout
• Rackmount ready


Download :

• Installation Guide
• Touch-screen software: Windows XP & Vista ready driver (32-bit)


SPECIFICATIONS
Model No. SST-LC18B (black, 32-bit only)
SST-LC18S (silver, 32-bit only)
SST-LC18B-V64 (black, 64-bit & 32-bit compatible)
SST-LC18S-V64 (silver, 64-bit & 32-bit compatible)
Material Aluminum front panel, 1.5mm aluminum body
Motherboard Standard ATX, Micro-ATX

Multimedia Integrated 7" touchscreen
Resolution Native resolution: 800 x 480
Supported resolution: 640 x 480 ~ 1600 x 1024
Drive bay External 5.25" x 2
3.5" x 1
Internal 3.5" x 5 (vibration dampening)
Cooling system Front --

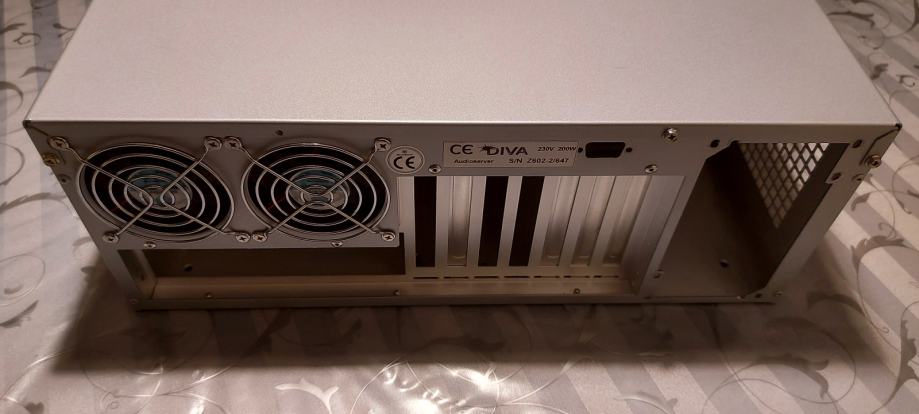

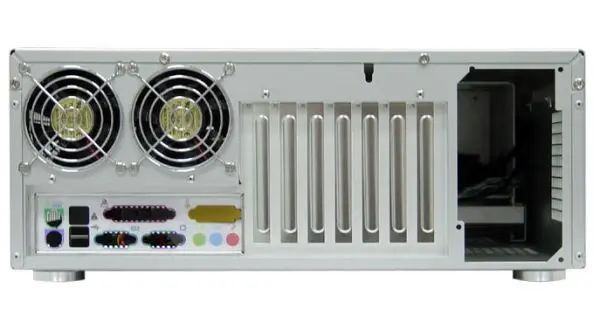

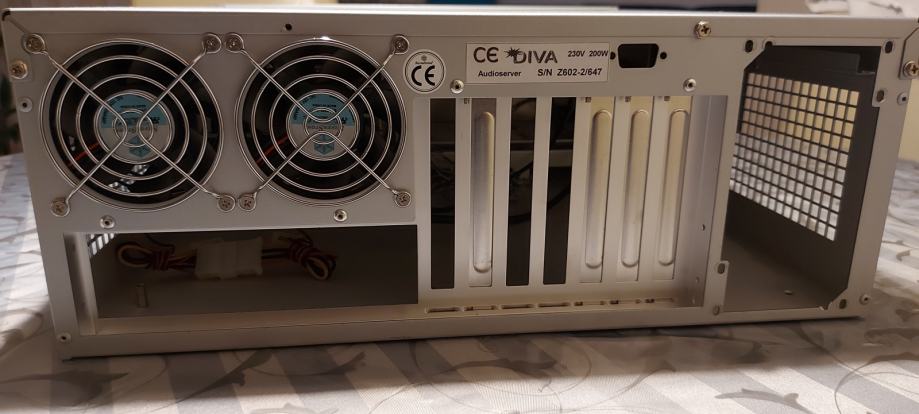

Rear 2 x 80mm exhaust fan, 2050rpm, 21dBA

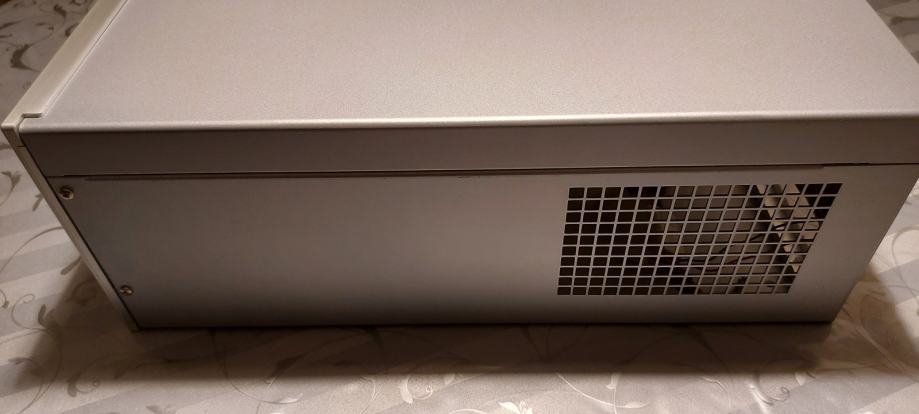

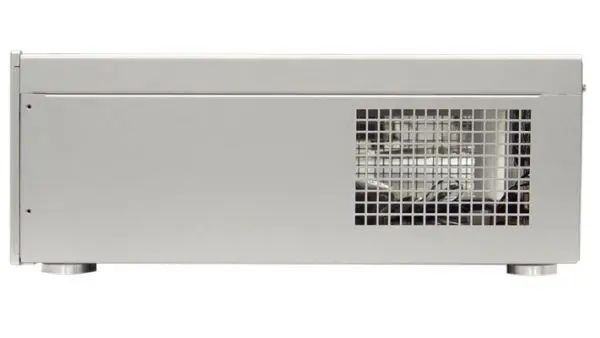

Side Dedicated CPU & PSU vents
Top --
Bottom 2 x 80mm fan slots
Internal --
Expansion slot 7
Front I/O port Optional FP32 with
USB 2.0 x 4
IEEE1394 x 1
audio x 1
MIC x 1
(sold separately)
Power supply Optional standard PS2(ATX)

Net weight 6.5 kg
Dimension 425 mm (W) x 170 mm (H) x 443 mm (D), 30.7 liters
16.73" (W) x 6.69" (H) x 17.44" (D), 30.7 liters

Remark
＊LCD resolution support from 640 x 480 up to 1600 x 1024.
