Nektar Panorama P6 - midi klavijatura synth

Keyboard
• 49 or 61 note semi-weighted, velocity-sensitive
• keyboard w/aftertouch
• 5 velocity curves plus fixed
• Pitch bend & Modulation assignable wheels
• Octave shift buttons
• PB1/2 buttons
• 4 keyboard zones programmable with controller filters and program changes
• 5 keyboard maps store all settings

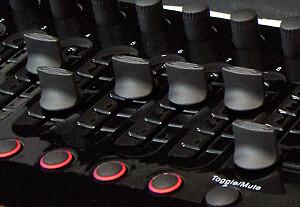

Preset Controls
• 16 encoders
• 9 45mm faders
• 10 assignable LED buttons
• 11 dedicated transport buttons
• 20 preset locations store all settings including links to keyboard, pad and F-keys maps

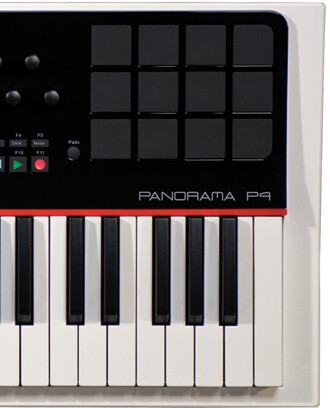

Pads
• 12 pads with velocity and pressure sensitivity
• 7 velocity curves
• Note-learn,
• Scale mode with 30+ scales and interval setting
• Velocity spread functions spreads the selected pad assignment over all 12 pads, at different velocity levels
• Transpose and Octave shift in both pad-map and scale mode
• Pads freely assignable in Reason mode
• Load or Save to any of 20 pad maps

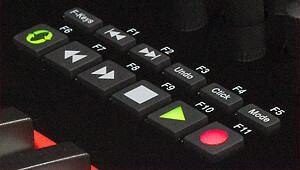

F-keys
• 11 assignable Function Keys (accessible using shift and transport keys)
• Load or Save to any of 10 F-Keys maps
• F-Keys assignable even in 3 Reason modes



System Requirements
USB Class compliant, no driver is needed for:
Apple iOS, Apple OSX
Windows XP, or higher
Linux (MIDI driver software required)

USB Power Requirement: 500 mA

Nektar DAW Integration
Mac OS X 10.7 or higher
Windows Vista, 7 & 8 or higher

Additional
• 100 mm ALPS motorized fader*
• 6 dedicated assignable navigation buttons
• ASCII/QWERTY macros assignable to buttons and pads
• 3.5” high-resolution TFT display provides incredible navigation and user visibility
• Nektar DAW Integration
• Presets and setup files for major DAWs and VIs

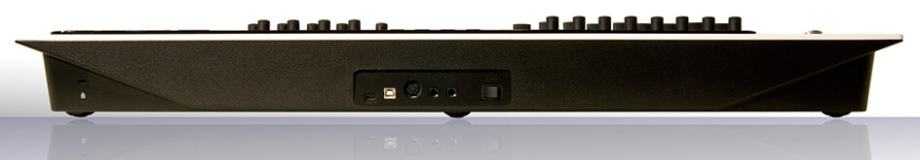

Connections
• Expression pedal 1/4″ jack input (pedal not included)
• Foot switch (sustain) 1/4″ jack input (pedal not included)
• MIDI output
• USB port for communication with computer
• USB Micro B connector for extra and external power*

*Two USB ports or external USB power supply required to power entire unit. One USB port powers entire unit with the exception of the motorized fader

Weight & Dimensions
Panorama P4
Dimensions: 33 2/8″(L) x 13″(D) 3 6/8″(H)
Weight: 14 Lbs

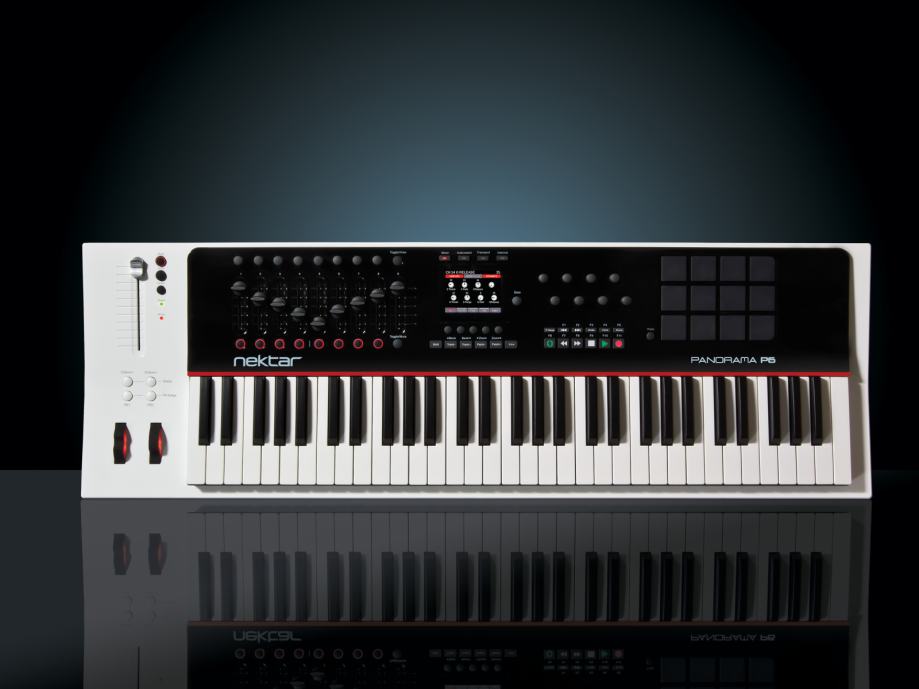

Panorama P6
Dimensions: 39 5/8″(L) x 13″(D) 3 6/8″(H)
Weight: 17 Lbs
