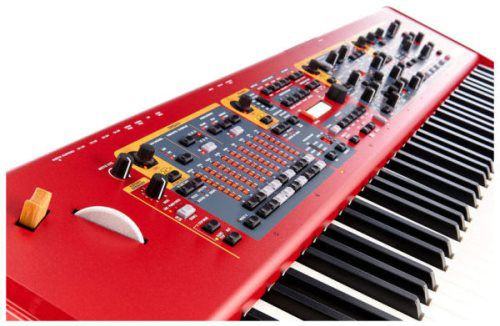

CLAVIA NORD STAGE 2 76 HP

GENERAL:
Master Level Control
Wooden Pitch Stick
Modulation Wheel
400 Programs - 4 Banks with 20 Pages each. Each Page has 5 Program locations
Program Categories
Program Sort Modes - numerical, alphabetical or by category
5 Live Buffers
2 Individual Slot Setups
3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
Global Mono output
Programmable Transpose +/- 6 semitones
Master Clock functionality with manual, external and tap-tempo rate control
Internal and MIDI clock source
MIDI over USB functionality

ORGAN SECTION:
B3 Tone wheel Organ, Vox Continental and Farfisa models with full polyphony
9 digitally controlled Drawbars
Percussion controls
Vibrato / Chorus control
Two Drawbar settings per program
2-Part Multitimbral (2 manuals)

PIANO SECTION

Approx. 500 Megabyte memory for Piano sounds
Acoustic Grand Pianos
Upright Pianos
Electric Pianos
Wurlitzer A200 Electric Piano
Clavinet D6
Harpsichords
Electric Grand Pianos incl. CP-80
40-60 Voices Polyphony
4 Selectable Velocity Curves
Clavinet EQ controls
String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
Selectable Piano Release
Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos)
Slot Detune functionality
2-Part Multitimbral
SYNTH SECTION

Sample Playback synthesis: approx. 380 Megabytes of sample memory, up to 999 Sample Instruments.
Analog synthesis: Multiple waveforms - including Dual Saw, Hard Sync and PWM
FM synthesis: 2 & 3 Operator FM synthesis
Wavetables synthesis: 62 waveforms
18 Voices polyphony
Unison control - with no reduction in polyphony
Amplitude envelope
Modulation envelope
12 & 24 dB Low Pass, High Pass, Band Pass and Notch Filter with Resonance
LFO with 4 waveforms (square, triangle, ramp and sample & hold)
300 Patch memory locations
Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
LFO and Arpeggiator synchronizable to Master Clock
2-Part Multitimbral
GLOBAL PARAMETERS
Level control
Zone (split assignment) control
EFFECTS

Effect 1: Ring Modulator, Tremolo, Pan, Wah, AutoWah 1, Autowah 2
Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
Delay - with Ping Pong (stereo taps) and Tap-Tempo
3 types of Speaker simulations, JC, Twin and Small
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
Effect rates/tempo can be synchronized to the Master Clock
MASTER EFFECTS
Compressor
Reverb - 6 algorithms
KEYBOARD
HA88/HA76-models: Hammer Action Weighted keyboards. Range: HA88: A-C, HA76: E-G
SW73-model: 73-note Semi Weighted Waterfall keyboard. Range: F-F
Aftertouch
Supports 3 split zones with visual LED indication
CONNECTIONS
4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
Stereo Headphone output - ¼", 6,35 mm stereo jack
1 Monitor input - 1/8", 3,5 mm stereo jack
Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
Sustain input compatible with Nord Triple Pedal (sold separately)
Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
MIDI In - 5 pin DIN connectors
MIDI Out - 5 pin DIN connectors
USB - type B connector
IEC320 C7 power connector

Mažena i pažena u cijenu uključen flightcase sa kotačima. Uvijek nošena u njemu.
