AEG UPS Protect B PRO 1000VA/900W

Tehnička specifikacija
High level flexibility - Intelligent functions
- Modern VI (line-interactive) protection technology with sine wave output voltage
- Lower operating costs by higher efficiency (0.9lag power factor)
- Compact dimensions and variable use due to combination design tower/rack, display rotateable
- Overvoltage protection (RJ11/RJ45) for phone, fax, modem and network
- Configuration directly via multilanguage display; display shows most important UPS figures
- Intelligent monitoring with USB- and RS232 interfaces; parallel mode with expansion slot possible

- With its increased power factor of 0.9lag the Protect B. PRO belongs to the most efficient line-interactive UPS systems
- The parallel operation of USB/RS232 interface and the extension slot now enables more communication possibilities
- Also the design of the UPS has been improved and fits the requirements of modern IT equipment

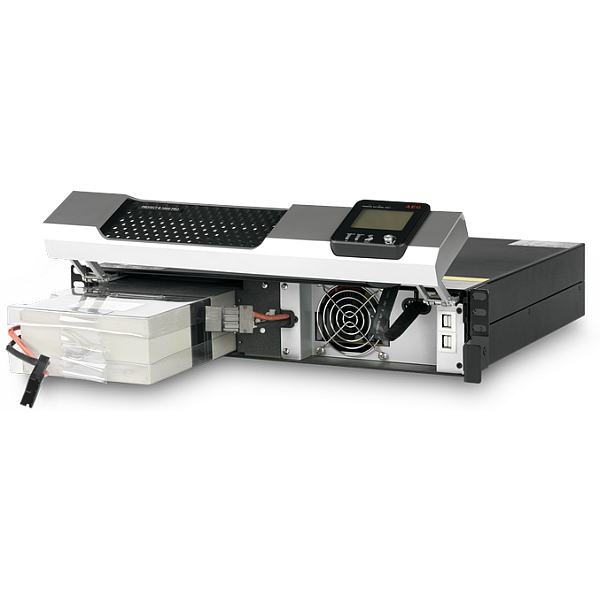

- The UPS can be configurated directly via operator panel and with the innovative folding mechanism batteries can be changed without disconnecting the UPS

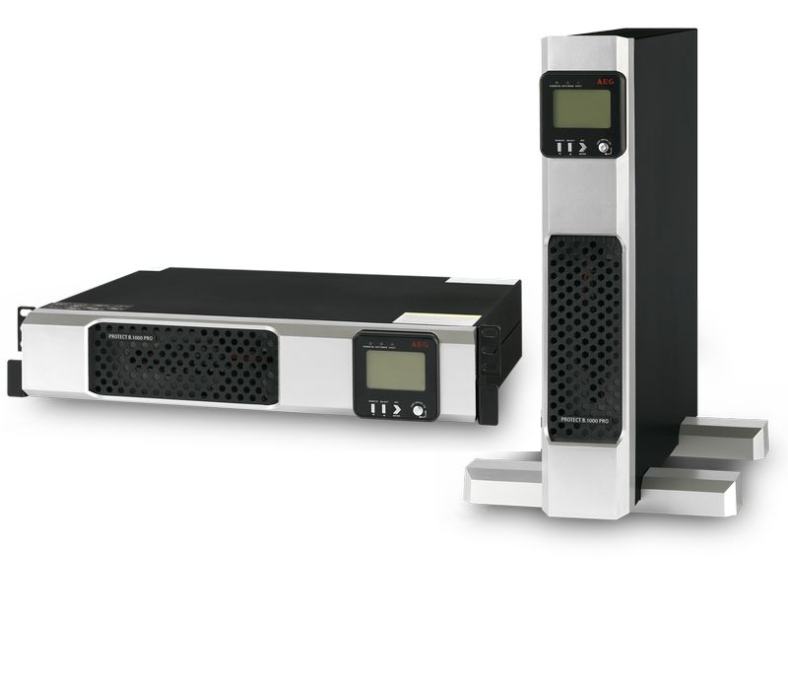

- With the included accessories and the rotateable display the UPS can be used as rack or tower version

Technical Specifications
- Type power: 1000VA/900W

UPS INPUT
- Input voltage: 220Vac / 230Vac / 240Vac
- Input voltage range without battery mode: 1822280Vac
- Frequency (auto selection): 50/60 Hz +/- 5 Hz
- Current consumption (max.): 4.8 A
UPS OUTPUT
- Rated output voltage/AVR-technology: 220Vac / 230Vac (default) / 240Vac +/- 10% (+/- 3% free running)
- Frequency in battery mode: 50/60 Hz +/- 1 Hz
- Output current (on 230Vac): 4.3 A
- Transfer time at mains outage: 2-6 ms (typical), 8 ms max.
- Voltage waveform: Sinusoidal
- Overload response (VI operation): < 120% for 5min. / 120-150% for 10s / >150% for 1s
- Overload response (battery operation): < 110% for 1min. / 110-150% for 10s / 150-200% for 500ms

BATTERY
- Type: Sealed, maintenance free, hot swappable
- Integrated: Yes
- Rated voltage: 24 Vdc
- Battery management: temperature compensated with overload and deep discharge protection - automatic battery test - batterypack detection
- Autonomy time in min. (full/half load, pf=0.9lag.): 3.5 / 9.5
- Charging time (to 90% of rated capacity): 6 h

COMMUNICATION
- User interface: LCD display with digital indication of UPS relevant values
- Interface: RS232 & USB (with status notification and UPS figures), additional communication slot in parallel mode (SNMP/relay card); input contact for emergency power off
- Shutdown software (on CD): 5 network licenses for all common OS (for e.g. Windows, Linux, Mac)
- Failure indicators (acoustical/optical): 3 LED indicators show UPS status, detailed indication via LCD display (mains failure, overload, battery discharge, battery replace, fan failure)

GENERAL DATA
- Efficiency (in ECO mode): > 97% - (at whole AVR range): > 90 %
- Audible noise at 1 m distance (max.):
