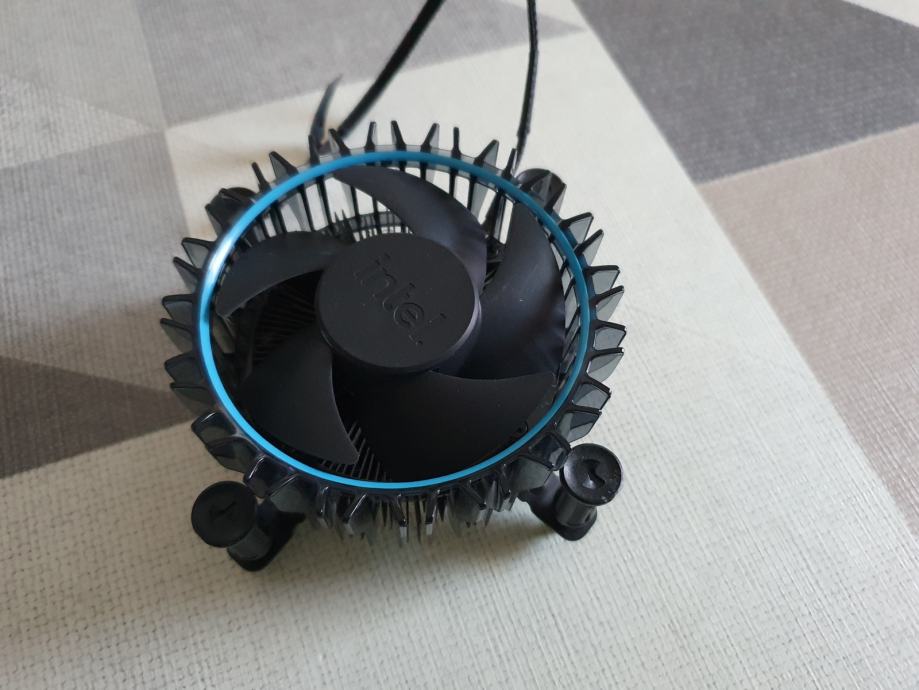

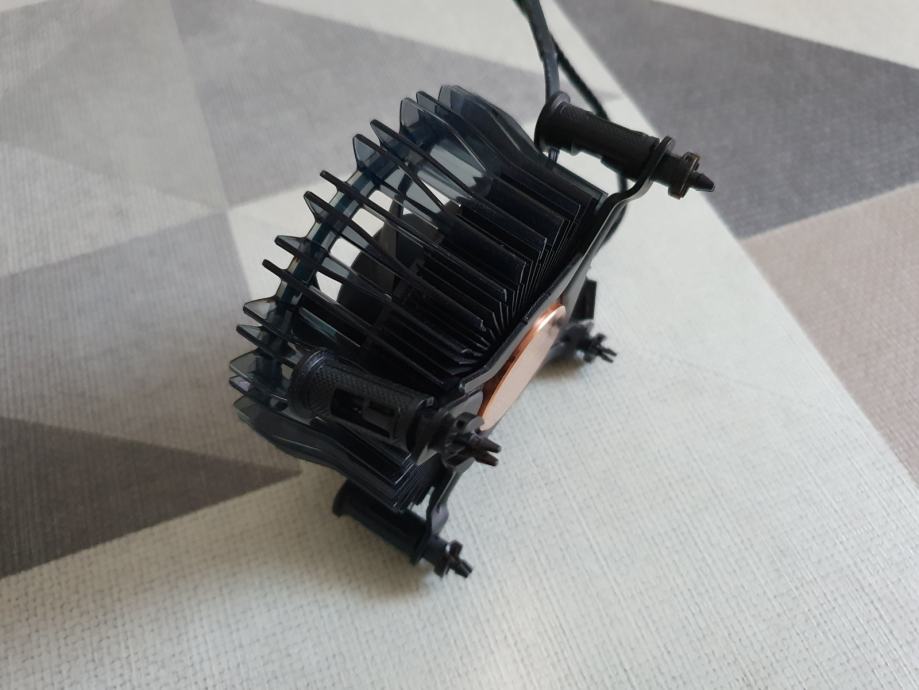

Intel Laminar RM1 cooler

Intel Laminar RM1 cooler
LGA 1700

This Intel Laminar RM1 Cooler comes in the box with 13th Generation Intel® Desktop Processors i7-13700, i7-13700F, i5-13500, i5-13400, i5-13400F, i3-13100, i3- and 13100F, as well as with 12th Generation Intel Desktop processors i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100 and i3-12100F. These are not sold separately to end-users.

Overall Height Up to 47mm (top of fan to bottom of heatsink)
Overall Size Up to 100mm x 100mm
Mass Up to 350g
Sound Power Level 3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
Sound Pressure Level 29 dBA (2400 RPM, 40C inlet, 65W)
TDP Support Up to 65W (12th Gen Intel® Core™ Desktop Processors)
Fan Type PWM controlled variable speed fan
Connector Type 4-pin
Operating Voltage 13.2V max, 12.0V rated, 10.8V min
Current (peak) Up to 400mA
Max RPM (+/- 5%) Up to 3150 RPM
Min RPM (+/- 20%) 600 RPM
Operating Temp 0 to 70C
Operating Humidity 85% relative humidity @ 55C
Fan Protection Locked-rotor/polarity protected
Sense Frequency 2 pulses/Rev, 12V pull-up with 10Kohm
PWM Frequency 25KHz +/- 5KHz
PWM Pull-up Voltage 5.25V max
PWM Duty Cycle Range 0–100%
