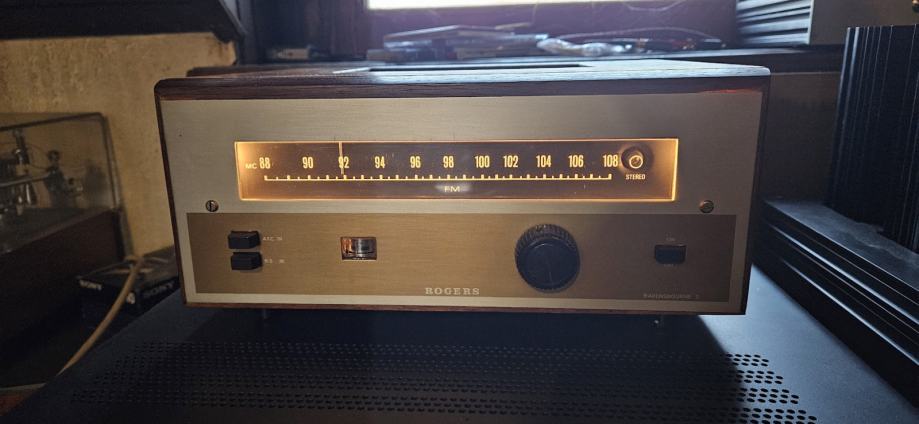

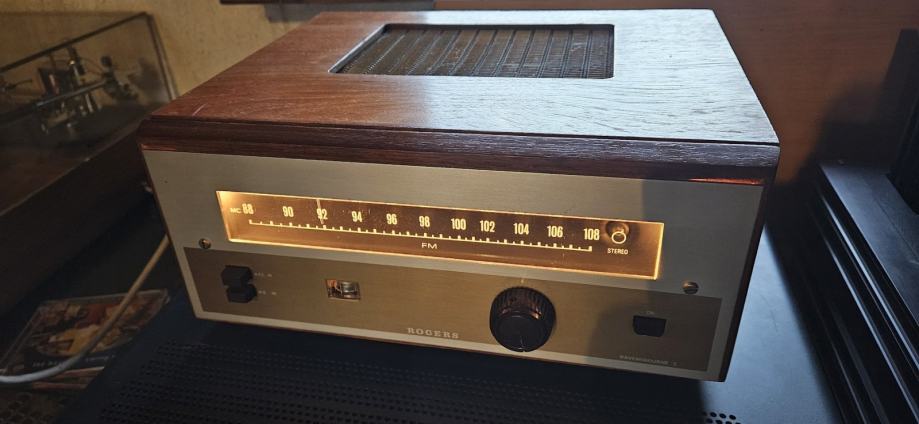

Rogers Ravensbourn 2 tuner, moguća zamjena uz doplatu

Rogers Ravensbourn 2 tuner, potpuno funkcionalan i nevjerovatan zvuk stanica, moguća zamjena uz doplatu
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Superhet with RF-stage
Wave bands
FM Broadcast Band Only
Details
Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 220-240 Volt
Loudspeaker
- For headphones or amp.
Material
Wooden case
from Radiomuseum.org
Model: Ravensbourne 2 FM Tuner - Rogers, Catford see also
Shape
Book-shelf unit.
Dimensions (WHD)
320 x 130 x 290 mm / 12.6 x 5.1 x 11.4 inch
Notes
Ravensbourne 2 FM Tuner

Rogers F.M. Tuner Provisional details were available at the 1968 Audio Fair of a new FM tuner unit displayed by Rogers Developments which they call the Ravensbourne 2.
Although designed for use with the Ravensbourne stereo amplifier, it is suitable for many other amplifiers.

The Ravensbourne 2 is an example of a product designed primarily for export, but which is recommended for use in this country where reception conditions are challenging. It has high sensitivity (3,1 µV for full limiting) and high selectivity, but adequate bandwidth for stereo reception.

Three FETs are featured in a four-gang front end followed by six silicon and one germanium type. An optional decoder contains a further seven silicon transistors. Audio output is 150mV r.m.s. average (mono) and 200mV r.m.s. average (stereo).

Four different prices are quoted for the tuner according to whether it is supplied with or without decoder and case. The top price for a complete stereo model with case is £63 10s.

This was followed by a more sensitive version the Ravensbourne 2 FET tuner, Series II.

Price in first year of sale
63.50 GB £
Mentioned in
Wireless World (The), London (WW, 79) (Jun 1968, Page 175.)
Author
Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
