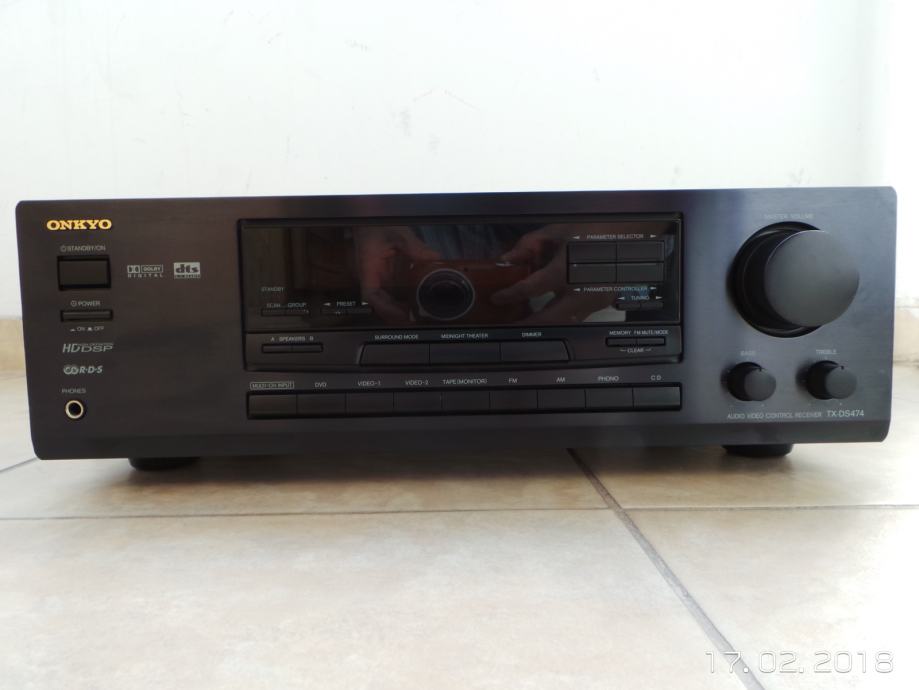

Onkyo TX-DS474 AV Control Receiver, očuvan, kao novi.

Receiver je bez ikakvih vanjskih oštećenja, vizualno kao nov, sve ispravno osim što mu neće automatski memorirati radio stanice, znači u memoriju unosite stanice sa ručnim namještanjem frekvencije. Dolazi bez daljinskog upravljača, sve funkcije se mogu podesiti preko prednje kontrolne ploče.

Continuous Average Power output (FTC) all channels: 55 watts per channel min. RMS at 8 ohms, 2 channels driven from 20 Hz
to 20 kHz with no more than 0.08% total harmonic distortion.
70 watts min. RMS at 6 ohms, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion.
Continuous Power output (DIN) 75 watts × 5 at 6 ohms
Maximum Power output (EIAJ) 100 watts × 5 at 6 ohms
Total Harmonic Distortion: 0.08% at rated power (Front)
IM Distortion: 0.08% at rated power (Front)
Damping Factor: 60 at 8 ohms (Front)
Input Sensitivity and Impedance
PHONO: 2.5 mV, 50 kohms
LINE (CD, TAPE, DVD, VIDEO-1, 2): 200 mV, 50 kohms
MULTICHANNEL INPUT
(FRONT L/R, SURROUND L/R, CENTER): 200 mV, 50 kohms
(SUBWOOFER): 36 mV, 50 kohms
DIGITAL-2 (COAXIAL): 0.5 Vp-p, 75 ohms
VIDEO IN (DVD, VIDEO-1, 2): 1 Vp-p, 75 ohms
Output Level and Impedance
Rec out (TAPE, VIDEO-2): 200 mV, 2.2 kohms
Pre out (SUBWOOFER): 1 V, 2.2 kohms
VIDEO OUT (VIDEO-2, MONITOR): 1 Vp-p, 75 ohms
Phono Overload: 110 mV RMS at 1 kHz, 0.5% T.H.D.
Frequency Response: 20 Hz to 30 kHz, ±1 dB
RIAA Deviation: 20 Hz to 20 kHz, ±0.8 dB
Tone Control
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Signal-to-Noise Ratio
Phono: 80 dB (IHF A, 5 mV input)
CD/Tape: 100 dB (IHF A)
Signal sensitivity and impedance: 1 Vp-p, 75 ohms
(DVD, VIDEO-1, VIDEO-2 input, output)
Tuning Range: 87.5 — 108.0 MHz
Usable Sensitivity
Mono: 11.2 dBf, 1.0 µV (75 ohms)
Stereo: 18.2 dBf, 2.2 µV (75 ohms)
50 dB Quieting Sensitivity
Mono: 18.2 dBf, 2.2 µV (75 ohms)
Stereo: 39.2 dBf, 24 µV (75 ohms)
Capture Ratio: 1.5 dB
Image Rejection Ratio
U.S.A. & Canadian models: 40 dB
Other area models: 85 dB
IF Rejection Ratio: 90 dB
Signal-to-Noise Ratio Mono: 73 dB Stereo: 67 dB
Alternate Channel Attenuation: 55 dB
Selectivity: 50 dB (DIN)
AM Suppression Ratio: 50 dB
Total Harmonic Distortion Mono: 0.15% Stereo: 0.25%
Frequency Response: 30 Hz — 15 kHz, ±1.5 dB
Stereo Separation: 45 dB at 1 kHz
30 dB at 100 Hz — 10 kHz
Tuning Range
U.S.A. & Canadian models: 530—1,710 kHz (10 kHz steps)
European & Australian models:
522—1,611 kHz (9 kHz steps)
Worldwide models: 531—1,602 kHz (9 kHz steps),
530—1,710 kHz (10 kHz steps)
Usable Sensitivity: 30 µV
Image Rejection Ratio: 40 dB
IF Rejection Ratio: 40 dB
Signal-to-Noise Ratio: 40 dB
Total Harmonic Distortion: 0.7%
Power Supply: AC 120 V, 60 Hz AC 230 V, 50 Hz
AC 220-230 V and 120 V switchable, 50/60 Hz
Power Consumption: 3.3 A 240 W
Dimensions (W × H × D): 435 × 150 × 324 mm 17-1/8" × 5-7/8" × 12-3/4"
Weight: 9.5 kg, 20.9 lbs. 10.7 kg, 23.6 lbs.
