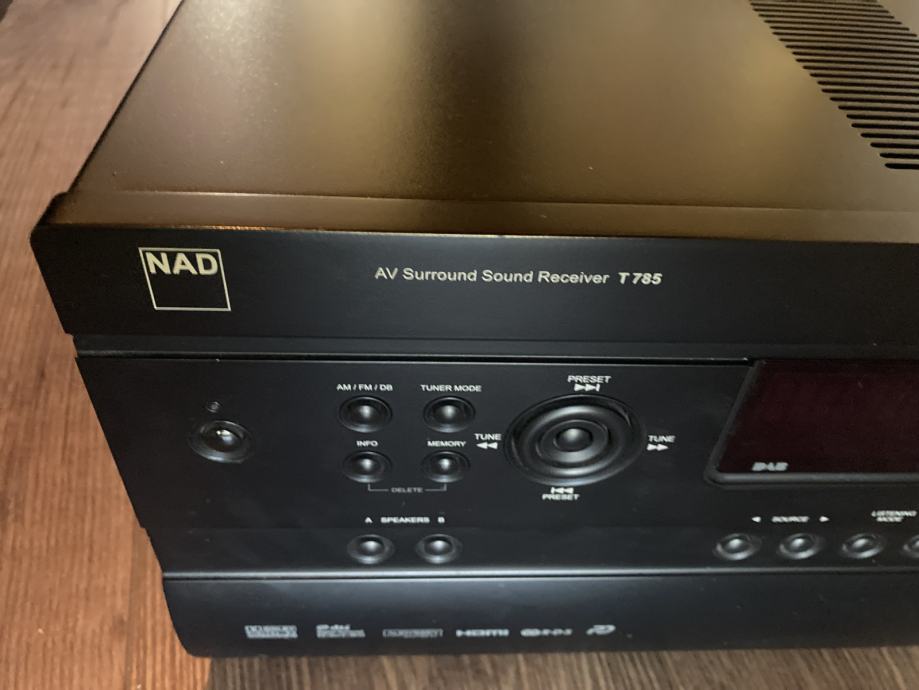

Nad t785

7-channel amplifier
145 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
Dolby® TrueHD, DTS-HD™ Master Audio, Pro Logic® IIx, and DTS Neo:6 decoding
analog-to-HDMI video upconversion (up to 1080p) with Sigma VXP video processing
Audyssey MultEQ XT auto speaker calibration for precise surround sound and easier system setup (microphone included)
Audyssey Dynamic Volume mode to keep listening levels steady
Audyssey Dynamic EQ™ for fuller sound at lower listening levels
Digital Music Options:
iPod®/iPhone® integration (requires optional NAD IPD 2 dock)
XM Satellite Radio Ready (requires XM subscription and optional XM tuner kit )
Multi-room Audio/Video:
dual-room/dual-source audio/video output
powered and line-level stereo audio output for 2nd room
composite video output for 2nd room
conversion of optical or coaxial digital signals to analog audio output for 2nd and 3rd rooms (PCM signals only)
Audio Performance Features:
back surround speaker channels re-assignable for bi-amping front left and right speakers for better sound
twin power supplies with "Holmgren" toroidal transformers for ultra-clean, high-current output
NAD PowerDrive technology computes the optimum power supply voltage for maximum power and efficiency
gold-plated A/V inputs/outputs
detachable power cord

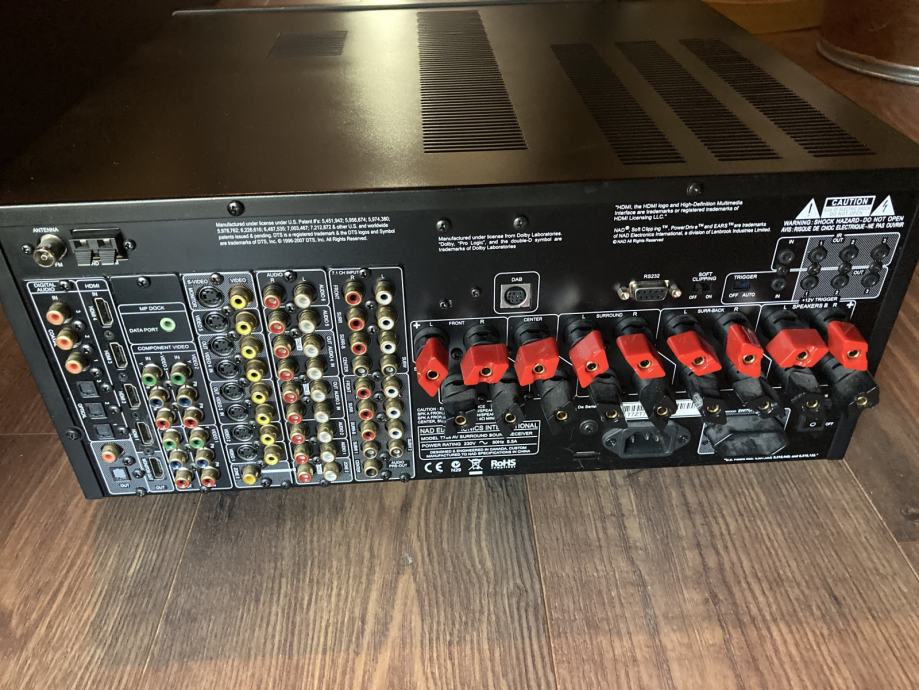

Connections:
1080p-compatible HDMI digital video switching (4 in, 1 out)
HDMI version 1.3 with support for Deep Color and x.v.Color
component video switching (3 in, 1 out)
digital audio inputs: 4 optical (including 1 front-panel), 3 coaxial
digital audio outputs: 1 optical, 1 coaxial
7.1-channel analog audio preamp input
7.2-channel preamp output for connecting optional external amplifiers and up to 2 powered subwoofers
6 audio/video inputs, including:
1 front-panel input with composite and S-video
5 rear-panel inputs with composite and S-video
1 audio-only input
no phono input
RS-232 port for custom installation and use with third-party control systems
2 pairs of main speaker outputs
General Features:
on-screen display for easy setup and operation
40 AM/FM presets
backlit learning remote
17-1/8"W x 7-11/16"H x 18-5/8"D
weight: 22 kg
