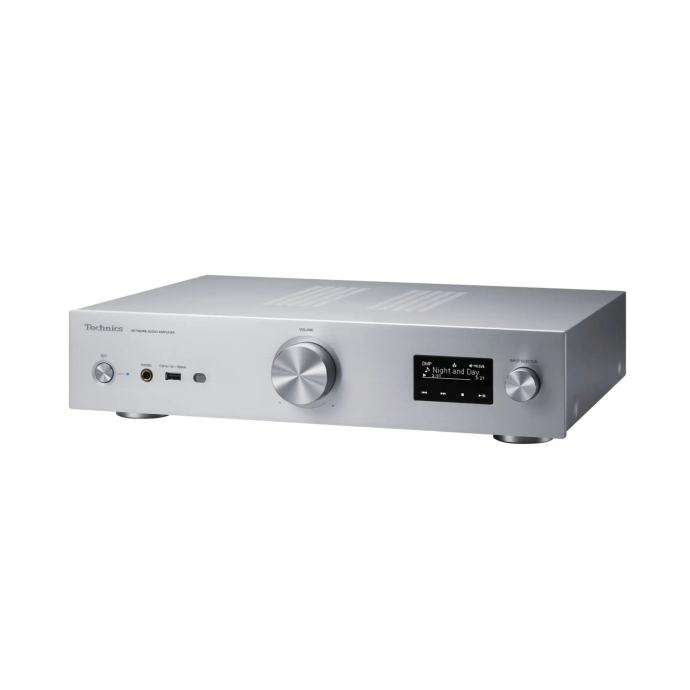

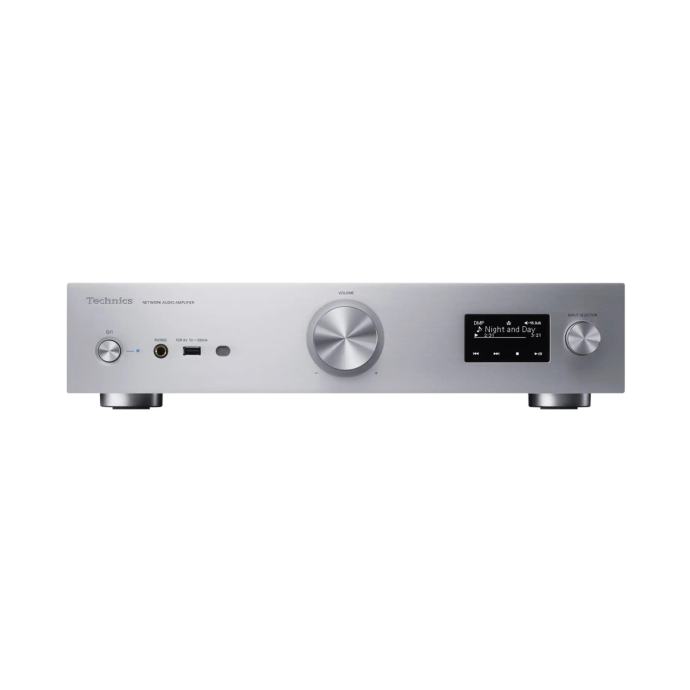

Technics SU-GX70EG S

The definitive living room audio center that enables seamless enjoyment of video, audio, and music through next-level integration using Technics’ full digital technologies.

A heavily featured streaming amplifier that combines the sonic genes of Technics Grand Class components with a wealth of source functions, including video connectivity, the SU-GX70 Network Audio Amplifier easily integrates into the home hi-fi system with the inclusion of an HDMI ARC port.

• Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimization)
• Twin Power Supply Circuit System
• Ideal Impulse Response through LAPC (Load Adaptive Phase Calibration)
• Pure Amplification Mode
• High-quality Audio through Low-impact HDMI Video Output

Output Power: 40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF) / 80W+80W(1kHz,T.H.D.1.0%,4Ω,20kHz LPF)
FTC Output Power: 40W + 40W ( 1kHz, T.H.D. 1.0%, 8Ω, 20kHz LPF ) / 60W + 60W ( 1kHz, T.H.D. 1.0%, 4Ω, 20kHz LPF )
Load Impedance: 4Ω-16Ω
Frequency Response: PHONO (MM): 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω ) / LINE:20Hz - 40kHz ( -3dB, 4Ω ) / DIGITAL: 20Hz - 80kHz ( -3dB, 4Ω )
Input Sensitivity / Input Impedance: PHONO (MM): 2.0 mV / 47 kΩ / LINE: 200 mV / 23 kΩ

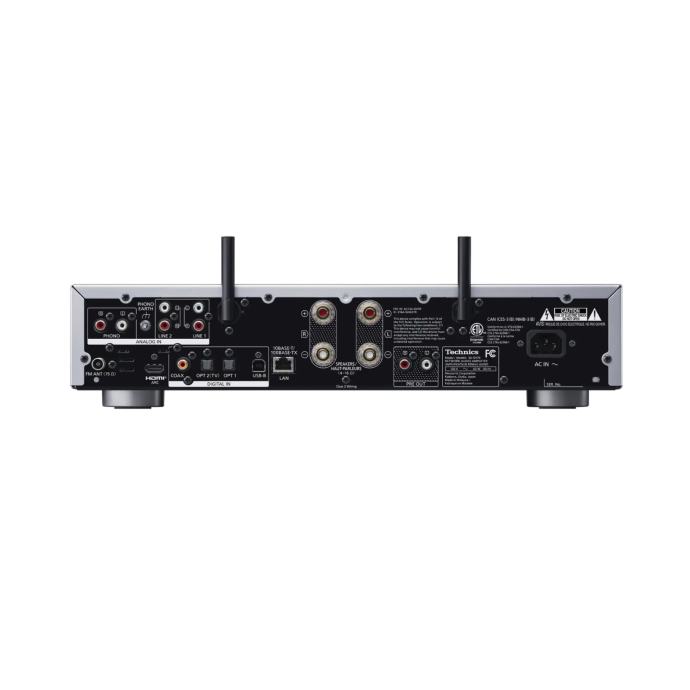

Analogue Input Terminal: LINE x 2 / PHONO (MM) x1
Digital Input Terminal: Optical digital x2 / Coaxial digital x1 / USB-A x1 / USB-B x1
Analogue Output Terminal: PRE OUT x1
Digital Output Terminal: HDMI ARC
Headphone Output: Yes, Stereo Φ6.3 mm (1/4")
USB-A: iPod/iPhone/iPad: No
USB-A: Support Codec: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A: Support Codec FLAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A: Support Codec DSD: Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
USB-A: Support Codec AIFF: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A: Support Codec ALAC: Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A: Support Codec AAC: Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
USB-A: Support Codec MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps)
PC(USB-B): USB 2.0 High-speed / USB Audio Class 2.0, Asynchronous mode
PC(USB-B) Support Codec LPCM: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 352.8, 384 kHz / 16, 24, 32 bit)
PC(USB-B) DSD control mode: ASIO Native mode, DoP mode
MQA Decorder: Yes
LAN(DMR) WAV: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
LAN(DMR) FLAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
LAN(DMR) DSD: Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
LAN(DMR) AIFF: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
LAN(DMR) ALAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
LAN(DMR) AAC: Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
LAN(DMR) MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps)
Ethernet Interface: LAN (100BASE-TX/10BASE-T)
Wi-Fi: LAN (100BASE-TX/10BASE-T)
Chromecast built-in: Yes
AirPlay 2: Yes
Bluetooth® (Support codec): Yes (AAC, SBC)
Tuner: FM
Power Supply: AC 120 V ,60 Hz
Power Consumption: 63W
Accessories: AC Cord, FM Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual
Dimensions: (16-15/16 x 3-55/64 x 14-31/64)inch
Weight: Approx. 14.6 lbs
