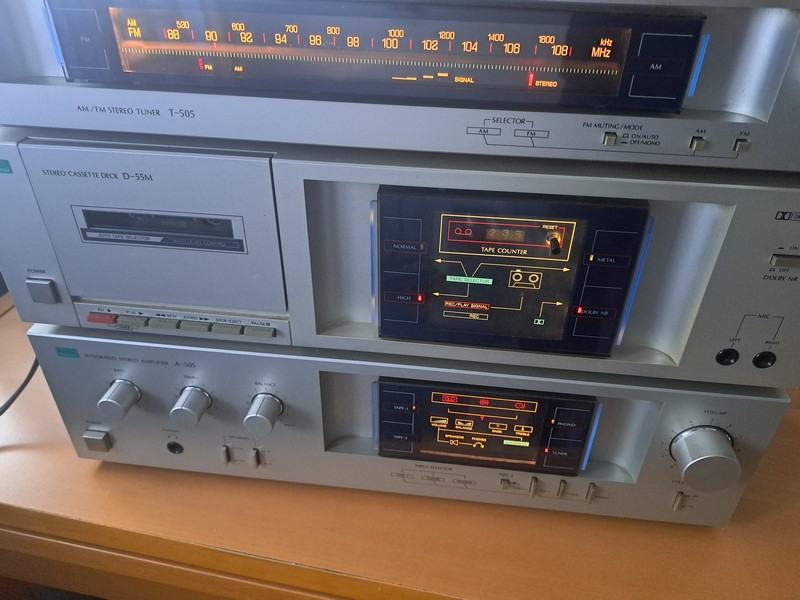

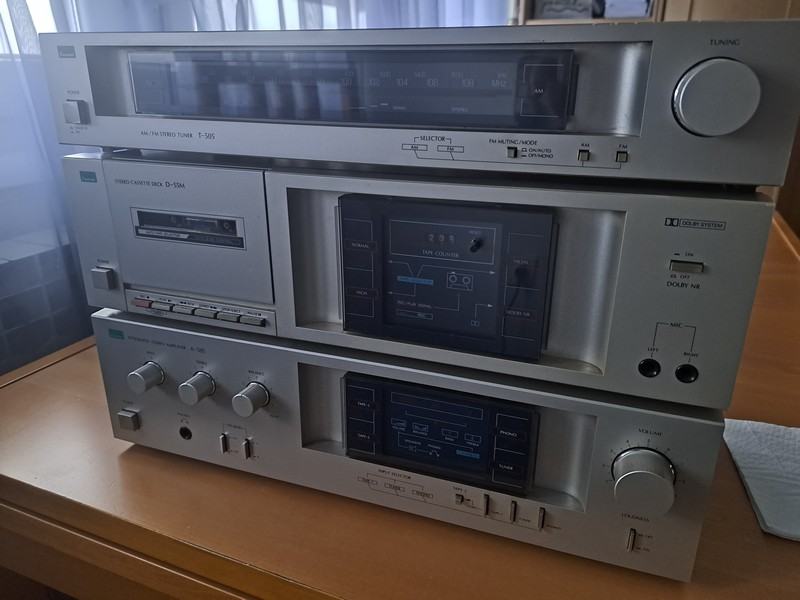

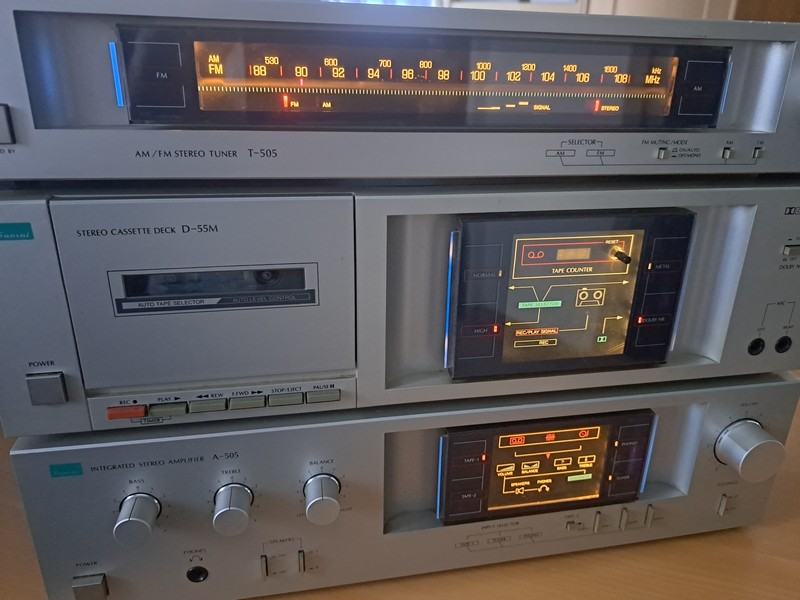

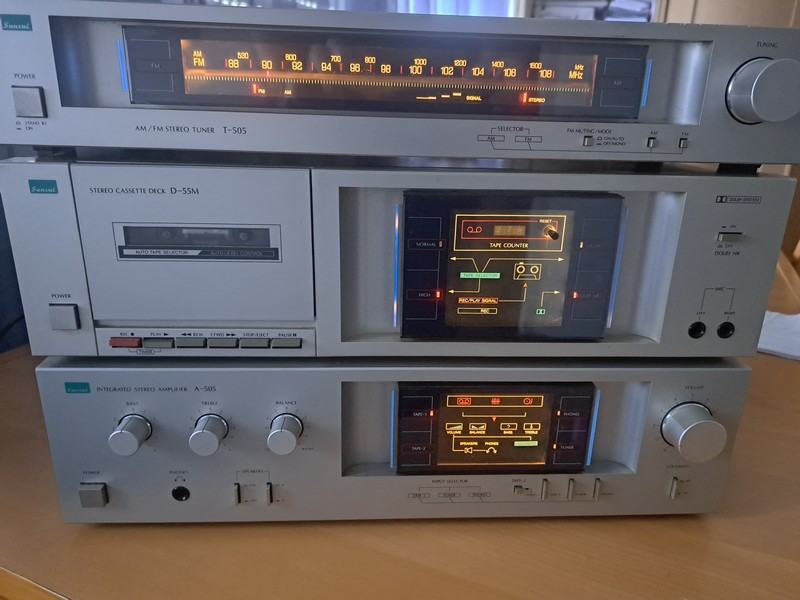

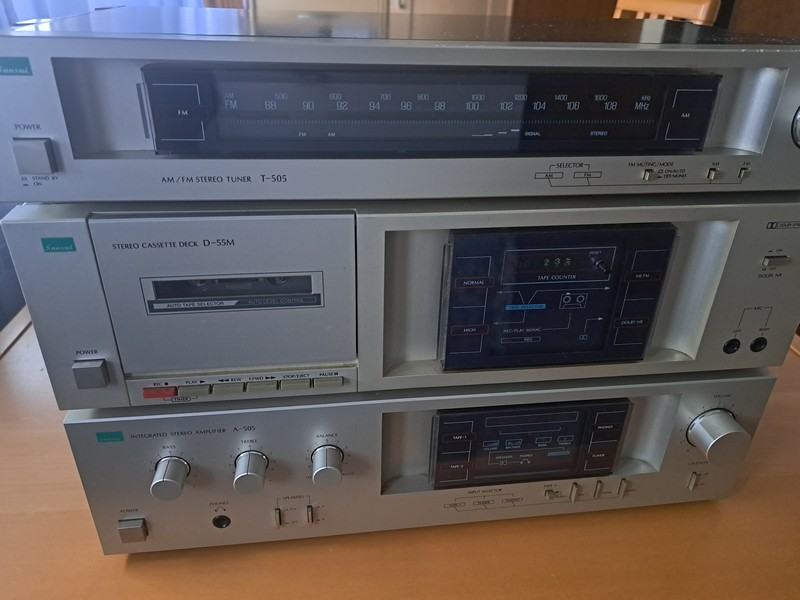

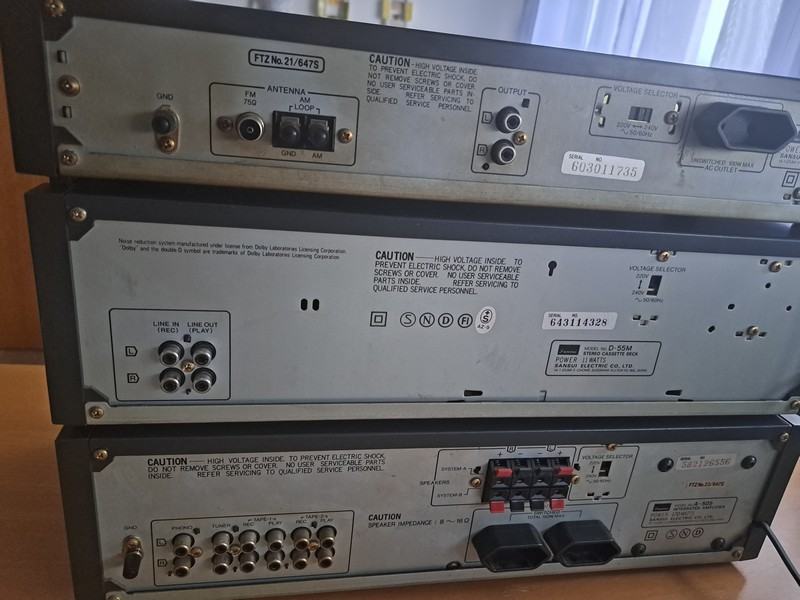

Sansui amplifier A-505, cassete deck D-55M, tuner T-505

Sansui pojačalo A505,kazetofon D55M i tuner T505 ,tehnički potpuno ispravno
Tehnički podaci;

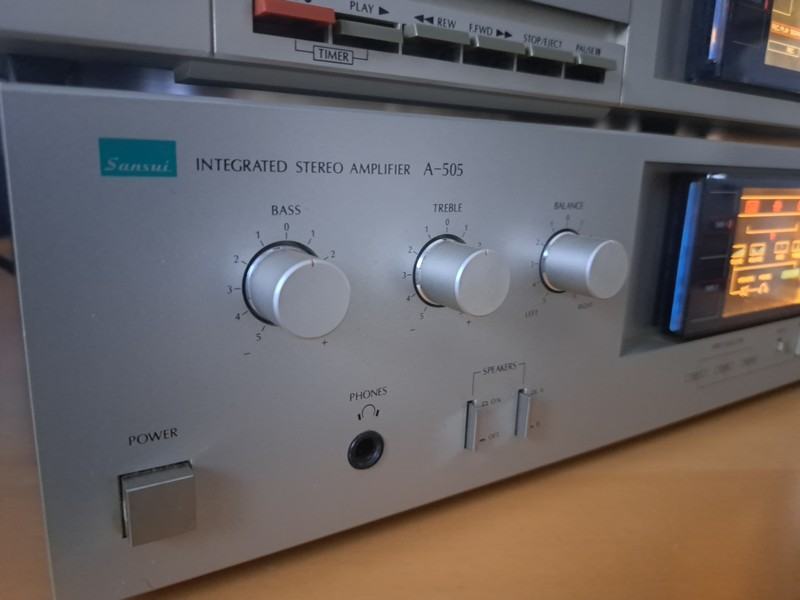

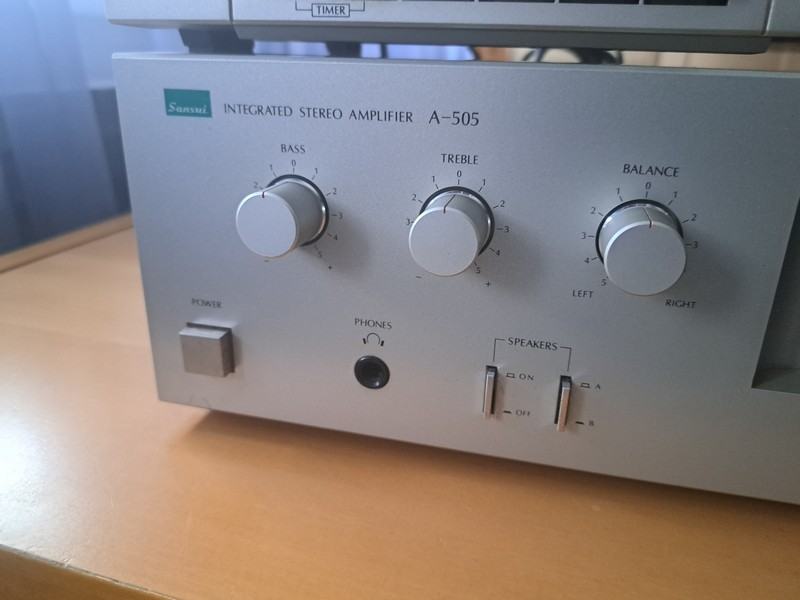

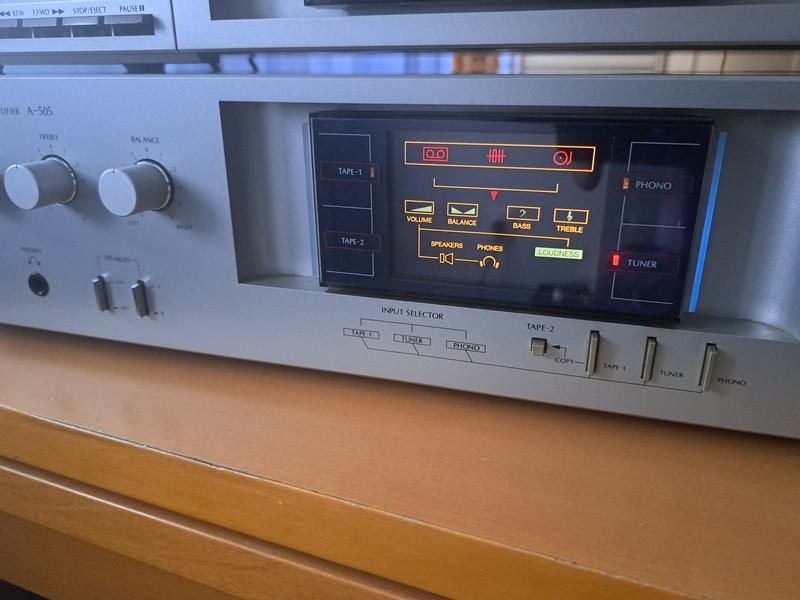

Sansui A-505
Power output: 30 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.07%
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 72dB (MM), 90dB (line)
Output: 130mV (line)
Speaker load impedance: 8Ω (minimum)
Dimensions: 430 x 118 x 245mm
Year: 1983

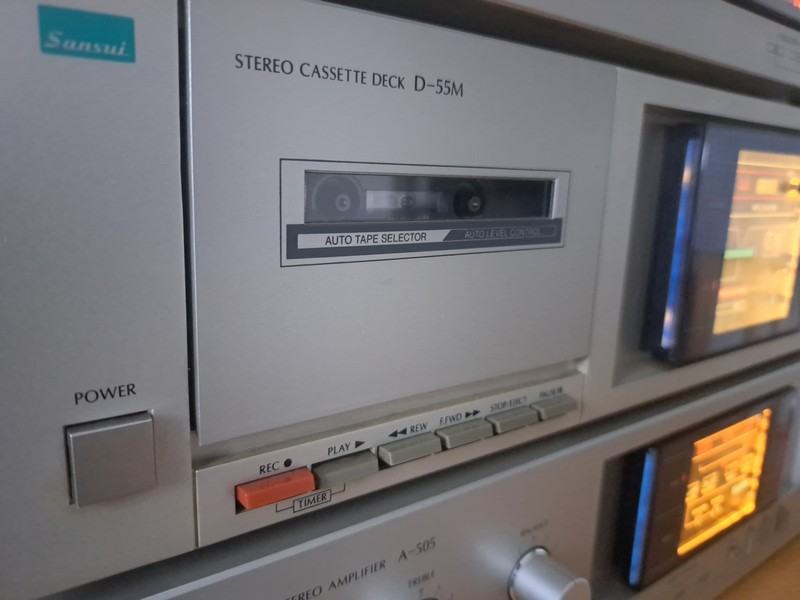

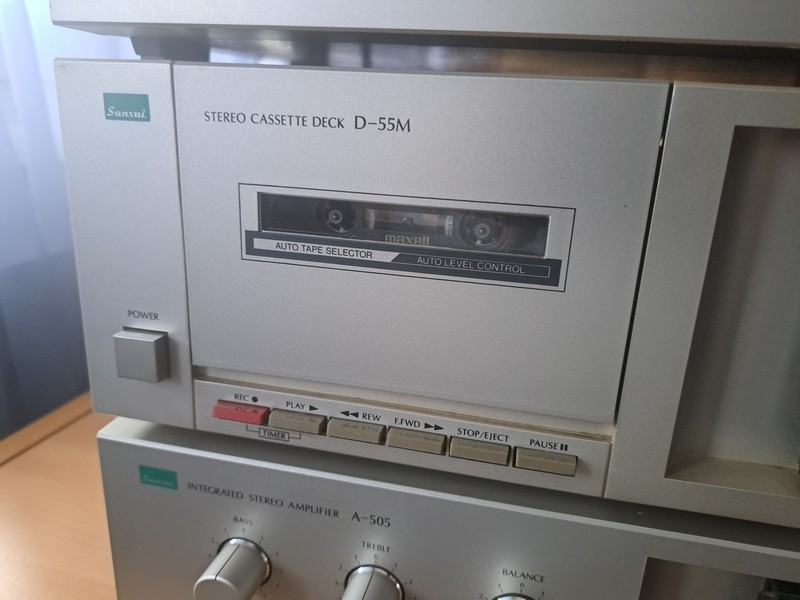

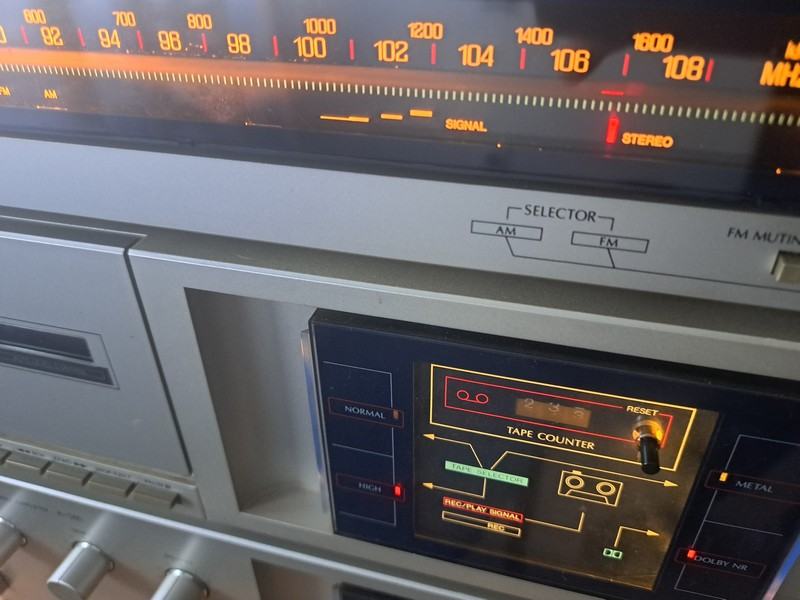

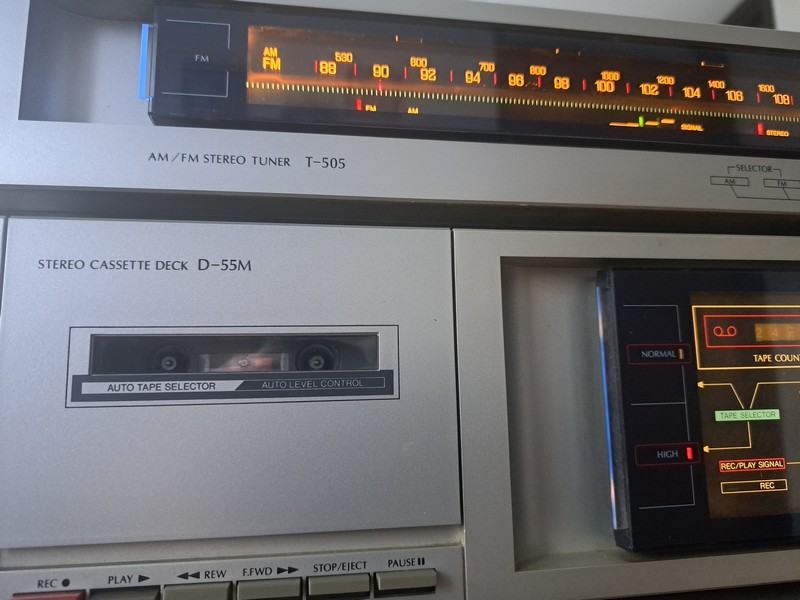

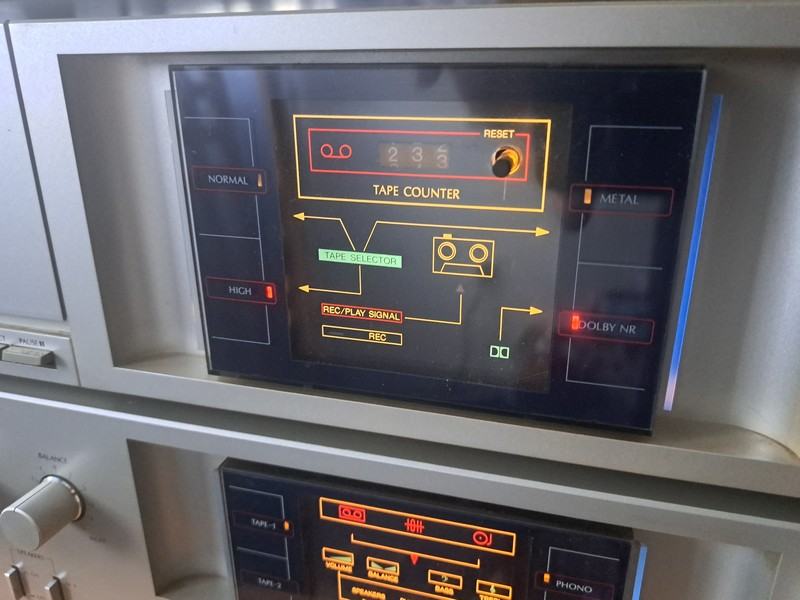

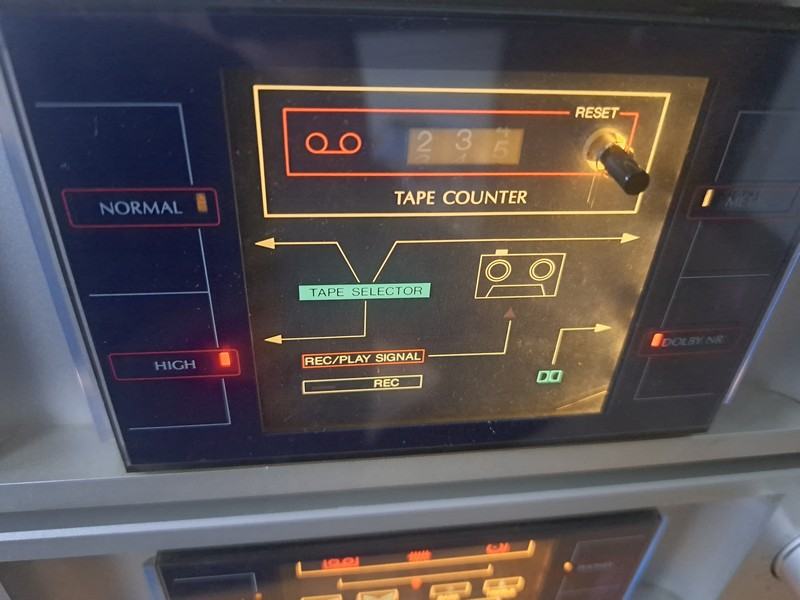

Sansui D-55M
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically controlled DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 16kHz (Metal tape)
Signal to Noise Ratio: 68dB (dolby B)
Wow and Flutter: 0.07%
Input: 150mV (line), 0.4mV (mic)
Output: 0.24V (line)
Dimensions: 430 x 118 x 223mm
Finish: black, silver
Year: 1983

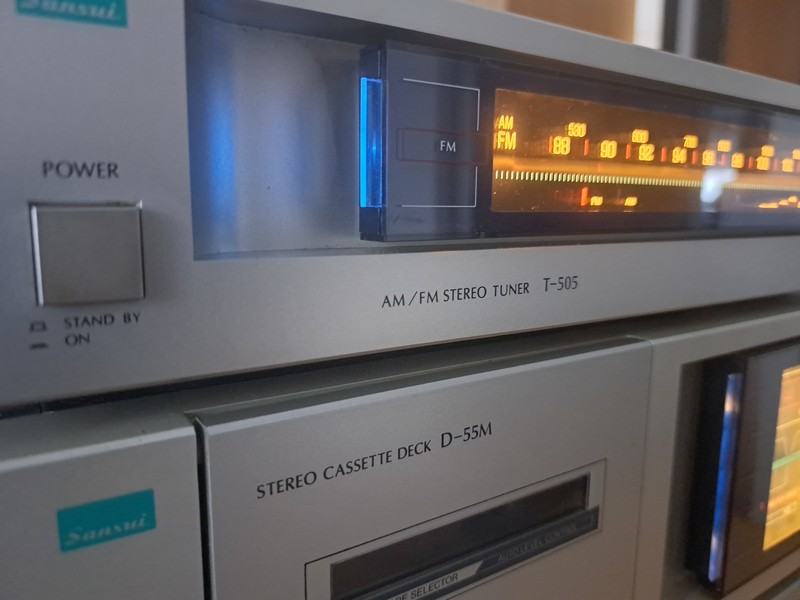

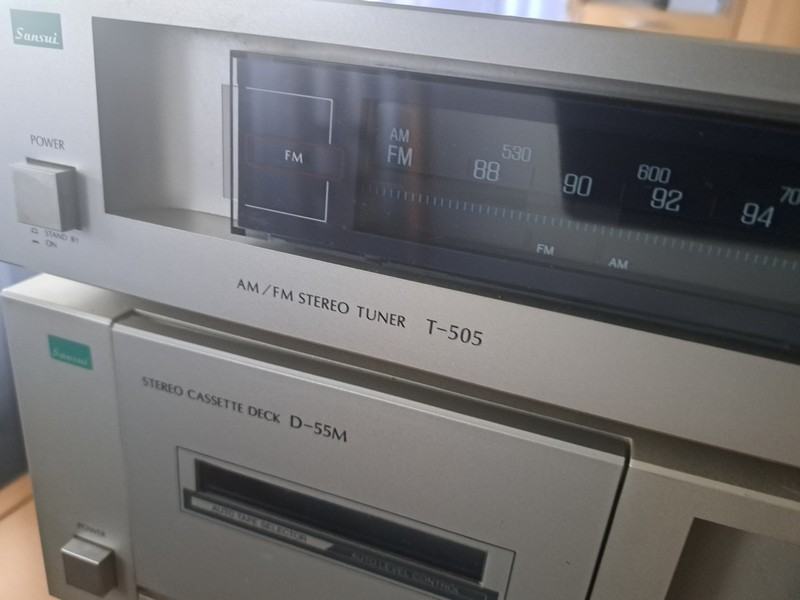

Sansui T-505
FM Section
Tuning range 88-108MHz
Usable sensitivity Mono IHF 10.8dBf (1.9µV), DIN 0.9µV
50dB quieting sensitivity Mono 16.5dBf, Stereo 37.0dBf
S/N ratio at 65dBf Mono 75dB, Stereo 70dB
Distortion at 65dBf Mono < 0.15% at 1,000Hz
Stereo < 0.2% at 1,000Hz
Alt. channel selectivity (at 400kHz) 55dB
Stereo separation 40dB at 1,000Hz
Frequency response 30-15,000Hz +1.0dB,-1.5dB
Antenna input impedance 300Ω balanced, 75Ω unbalanced
AM Section
Tuning range 530-1,600kHz
Usable sensitivity (Loop antenna) 53dB/m (446µV/m)
S/N ratio 45dB
Image response ratio 40dB at 1,000kHz
Output voltage/impedance 500mV/2.2kΩ
General / 220/240V AC 50/60Hz with voltage Selector
Power consumption: 8 Watts
