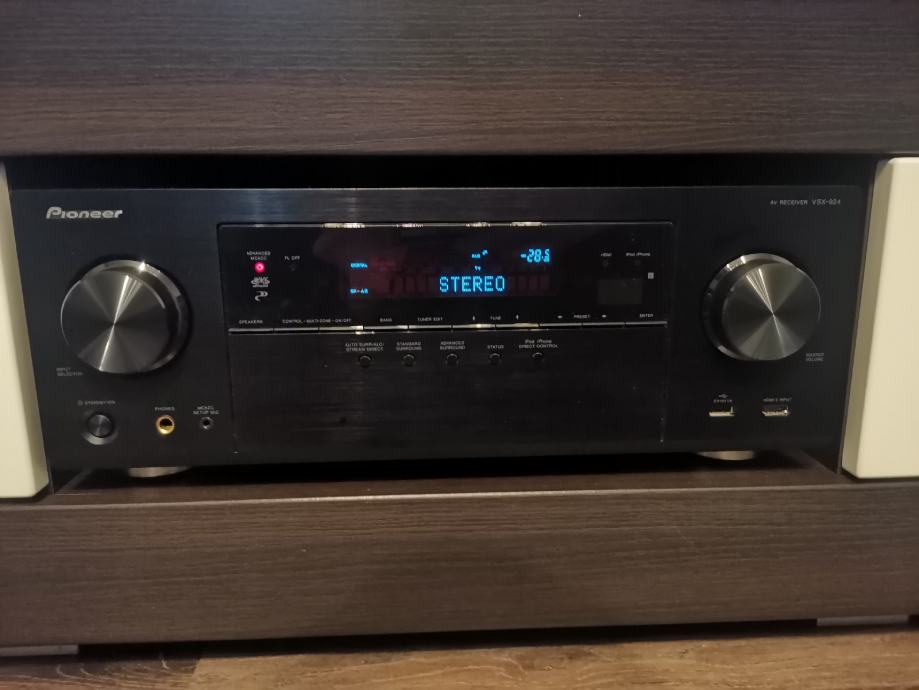

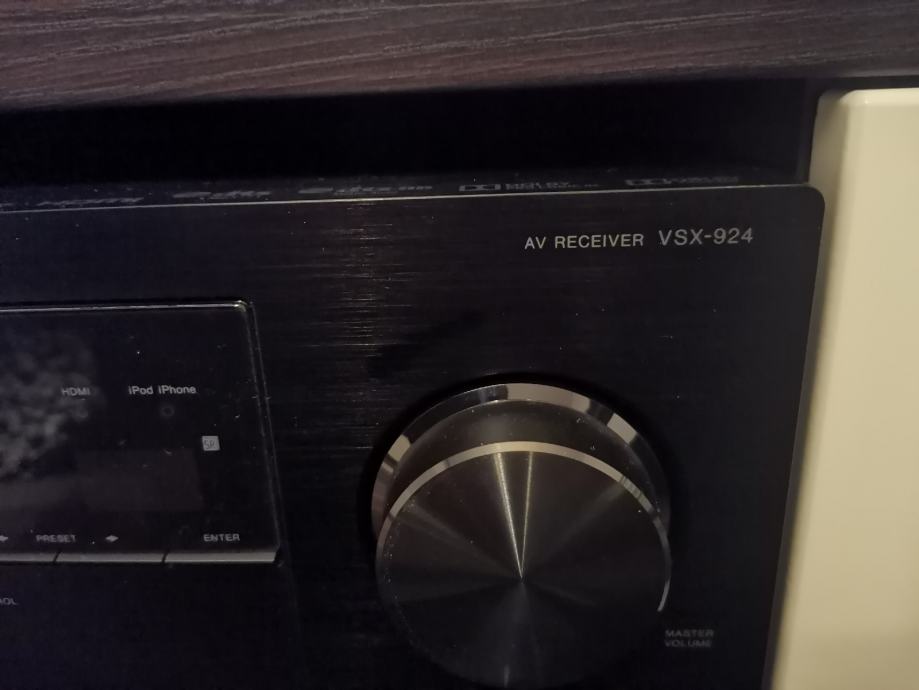

Pioneer vsx 924 7.2 Receiver (4K, Bluetooth... )

AMPLIFICATION

Channels: 7

Amplification Type: Direct Energy

150 W/ch (6 ohms 1 kHz THD 1.0 % 1ch Driven)

105 W/ch (8 ohms 20 Hz-20 kHz THD 0.09 % 1ch Driven)

AUDIO FEATURES

Dolby® TrueHD/Dolby Pro Logic IIz/Dolby Digital Plus

DTS-HD Master Audio/DTS-ES/DTS Neo:X | 7.1

DSD Music File Playback via Network/USB (2.8 MHz)

DSD Disc (SACD) Playback via HDMI (2.8 MHz)

Digital Core Engine with Texas Instruments Aureus™ DSP

Hi-bit24 Audio Processing

SABRE™ Premier Audio DAC (ES9006S) for 7.2ch

HDMI Audio Return Channel (ARC)

Pioneer Advanced MCACC Room Calibration

• Phase Control

• Auto Phase Control Plus/Phase Control Plus

• Standing Wave Control

• 3D Time Axis Measurement

• Polarity Check

• Automatic Crossover Detection

• Reverb Before and After Calibration Results

(AVNavigator for iPad)

• Subwoofer EQ (4 Band)

Pioneer Sound Enhancements

• PQLS Bit-stream/Multi-Surround/2ch

• Advanced Sound Retriever (Multi-ch)

• Sound Retriever Link

• Auto Sound Retriever/Auto Sound Retriever for ARC

• Auto Level Control (Multi-ch)

• Virtual Speakers (Wide/Height/Surround Back)

• Virtual Depth

Advanced Surround Modes

• Action, Drama, Advanced Game, Sports, Classical, Rock/Pop

• Front Stage Surround, Extended Stereo

• Sound Retriever Air, Phones Surround

• ECO Mode 1, ECO Mode 2

VIDEO FEATURES

HDMI 7 in/2 out (1 for MAIN, 1 for MAIN/HDZONE)

3D Ready (Blu-ray Disc®, Broadcast, and Games)

Deep Colour (36-bit), "x.v. Colour"

Ultra HD Upscaling and Pass-through (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit)

Video Scaler with Qdeo™

Video Conversion to HDMI

Triple HD Noise Reduction

Advanced Video Adjust

Stream Smoother

Stream Smoother Link

Frame Rate Conversion

HOME NETWORK FEATURES

Apple AirPlay Certified

DLNA Certified™ (1.5)

HTC Connect™ Certified

Windows® 8.1 Compatible

Music File Playback/Seek*1 via Network/USB: AIFF, Apple

Lossless, WAV, FLAC, MP3, WMA, AAC, DSD

• 192 kHz/24-Bit Audio playback (AIFF, WAV, FLAC)

• Multi-Channel (5.1ch, 5.0ch) Audio Playback*2 (WAV, FLAC)

Gapless Playback for AIFF, Apple Lossless, WAV*3, FLAC*3,

AAC, MP3

Spotify® Digital Music-Streaming Service Ready*4

Internet Radio with vTuner

Convenience FEATURES

iPod Digital Transmission via Front USB Terminal

›› Android™ Audio/Video Playback with MHL™

›› Built-in AVNavigator (Wiring Navi, Interactive Operation Guide

and Network Setup)

›› HDMI ZONE Out (HDZONE) and Analog Audio Out (ZONE 2)

›› Charges iPod/iPhone

iControlAV5 Remote Control App Ready (iOS/Android)*5

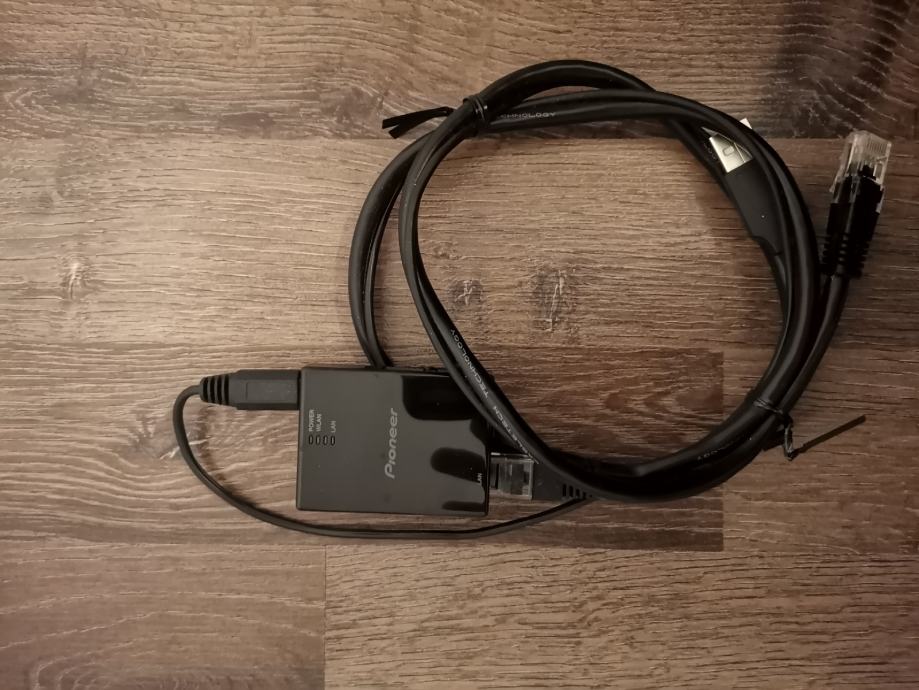

Wireless LAN Converter Ready (optional AS-WL300 required)

Built-in Bluetooth® Wireless Technology (ver.3.0, profile: A2DP/

AVRCP, codec: SBC/AAC/apt-X)

Firmware Update via Internet or USB

Graphical User Interface (GUI) with Album Artwork (HDMI only)

Simple Status Overlay

Auto Power Down for Each Zone

Power Save for HDMI Standby Through

AM/FM Tuner 63 Presets

Sleep Timer

›› Learning Remote Control (Luminous)

FRONT TERMINALS

HDMI 1 in

USB 1 in for iPod/iPhone, USB drive

MCACC Setup MIC in

Phones 1 out

REAR TERMINALS

HDMI 6 in

(6 assignable, 1 for HDMI/MHL)

HDMI 2 out

(1 for MAIN, 1 for MAIN/HDZONE)

Ethernet 1 in

AV (Composite) 2 in

Audio 1 in (assignable)

Digital Coaxial 1 in (assignable)

Digital Optical 1 in (assignable)

Component Video 1 in (assignable)

Monitor Composite 1 out

ZONE 2 Audio Preout

Preout 2.2ch (Front L/R, SW x 2)

Speaker 9 ch out (FRONT, CENTER,

SURROUND, SURROUND BACK, FH/FW/

Speaker B)

USB Charge Port for AS-WL300

Wireless LAN Converter

IR 1 in/1 out

SPECIFICATIONS

Power Requirements: AC 220-230 V,

50/60 Hz

Power Consumption/Standby:

550 W/0.1 W

Dimensions (W x H x D):

435 x 168 x 362.5 mm

Weight: 9.8 kg

Pojačalo u potpunosti očuvano i ispravno

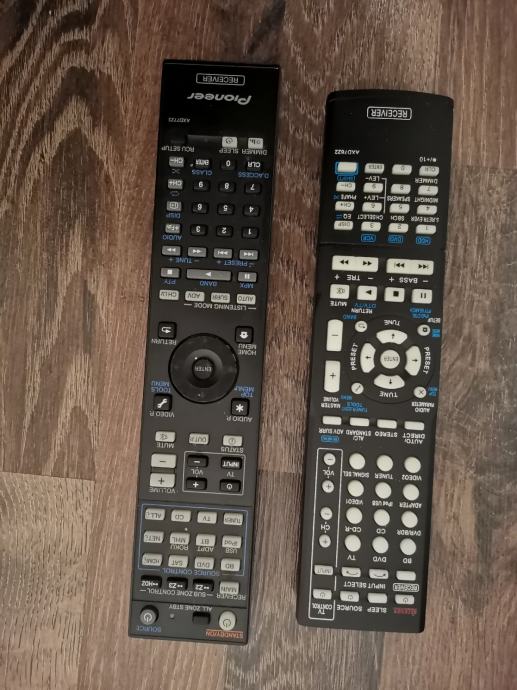

S pojačalom dolaze 2 daljinska upravljača jer na originalnom ne rade tipke za pojačavanje glasnoće

099 766 1505
