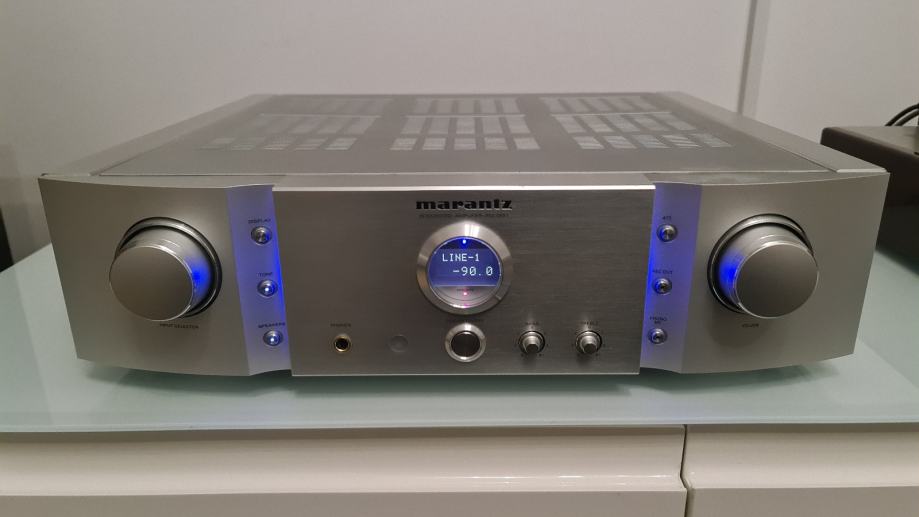

Marantz PM15S1, REFERENCE serija, daljinski i račun

Marantz referentno integrirano pojačalo sa daljinskim i računom

Power output (20 Hz – 20 kHz simultaneous drive of both chanels). 90W x 2 (8Ω load)
140W x 2 (4Ω load)
Total harmonic distortion (20Hz – 20kHz simultaneous drive
of both channels, 8Ω load) 0.05%
Output band width (8Ω load, 0.05%) 5Hz ~ 40kHz
Frequency response (CD, 1W, 8Ω load) 5Hz ~ 100kHz
Dumping factor (8Ω load, 20Hz – 20kHz) 100
Input sensitivity/Input impedance
PHONO (MC) 300µV/100Ω
PHONO (MM) 3.2mV/47kΩ
CD/LINE/RECORDER 240mV/20kΩ
Output voltage/Output impedance
PRE OUT 1.7 V/330Ω
Maximum allowed PHONO input (1kHz)
MC 15mV
MM 150mV
RIAA deviation (20Hz ~ 20kHz) ±0.5dB
S/N (IHF-A, 1W, 8Ω load)
PHONO (MC) 77dB (0.5mV input)
PHONO (MM) 85dB (5mV input)
CD/LINE/RECORDER 90dB (500mV input)

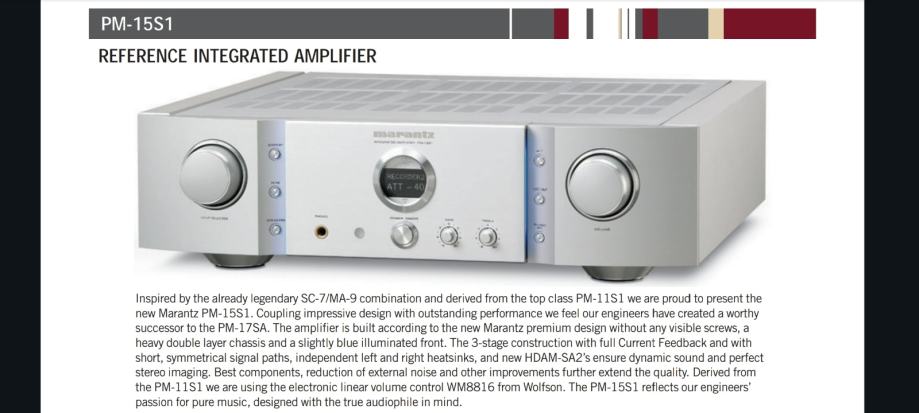

SPECIFICATIONS & DIMENSIONAL DRAWINGS
Tone control
Bass (50Hz) ........... ±10dB
Treble (20kHz) ....... ±10dB
Power requirement ...... AC 230V 50Hz
Power consumption
(EN60065) 220W
(4Ω, 140W x 2 output) 550W

Maximum outer dimensions (Amp)
Width 440mm
Height 123mm
Depth 444mm
Weight (Amp) 18.0kg

Online članci mjereno 2x109 W na 8 ohma i 2x172 W na 4 ohma, kratkotrajno do 2x306 W na 2 ohma.

Linkovi na neke recenzije:
http://www.testberichte.de/test/produkt_tests_marantz_pm_15s1_p50894.html
http://www.sound-news.net/recenzije/stereo/integrirana-pojaala/item/60-marantz-p
http://www.hifi.nl/recensies/2294/Marantz-PM-15S1-en-SA-15S1.html

Moguća zamjena za razno.
