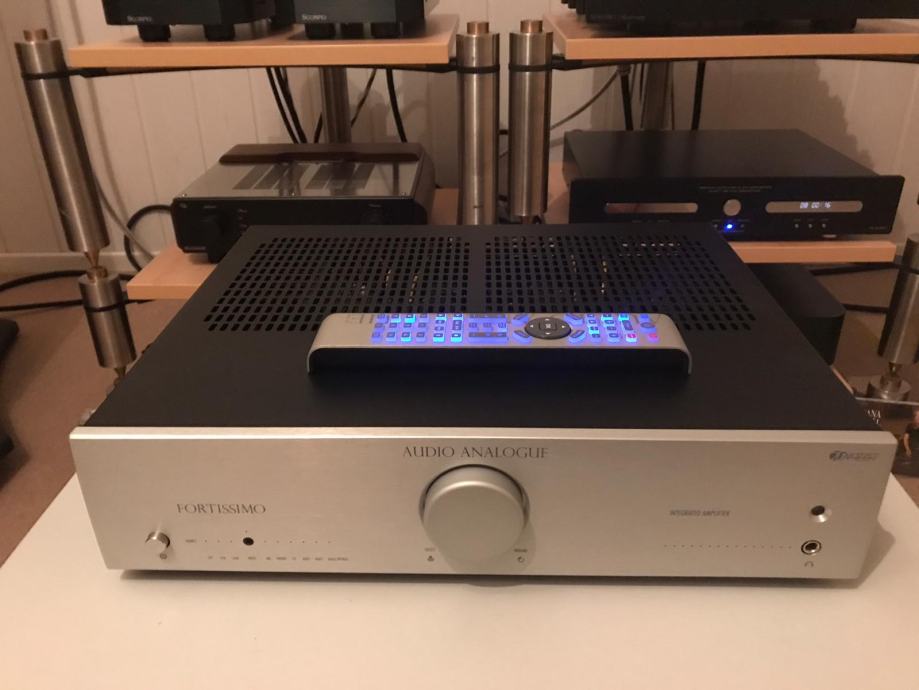

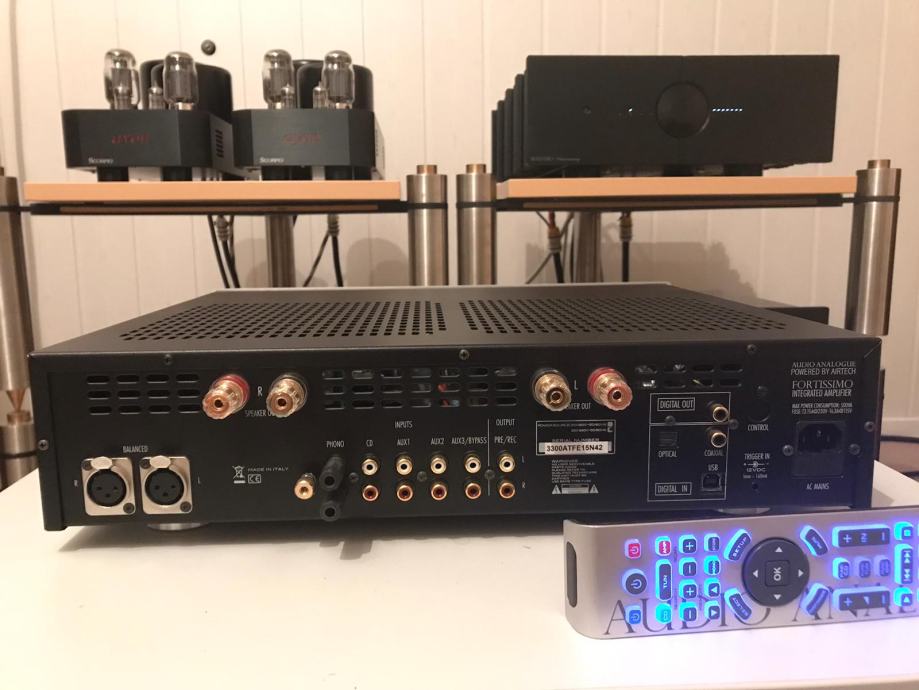

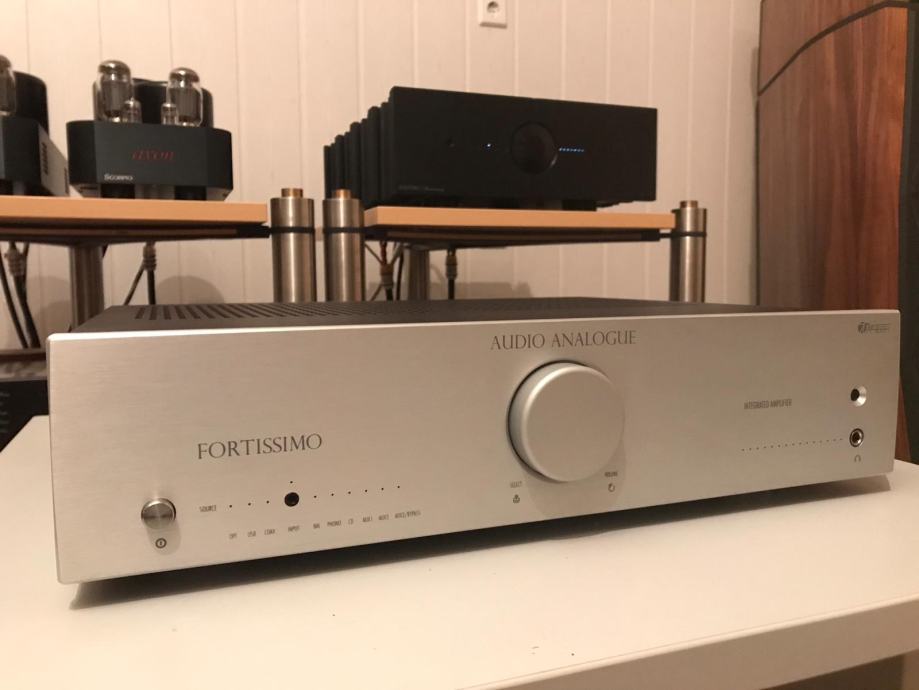

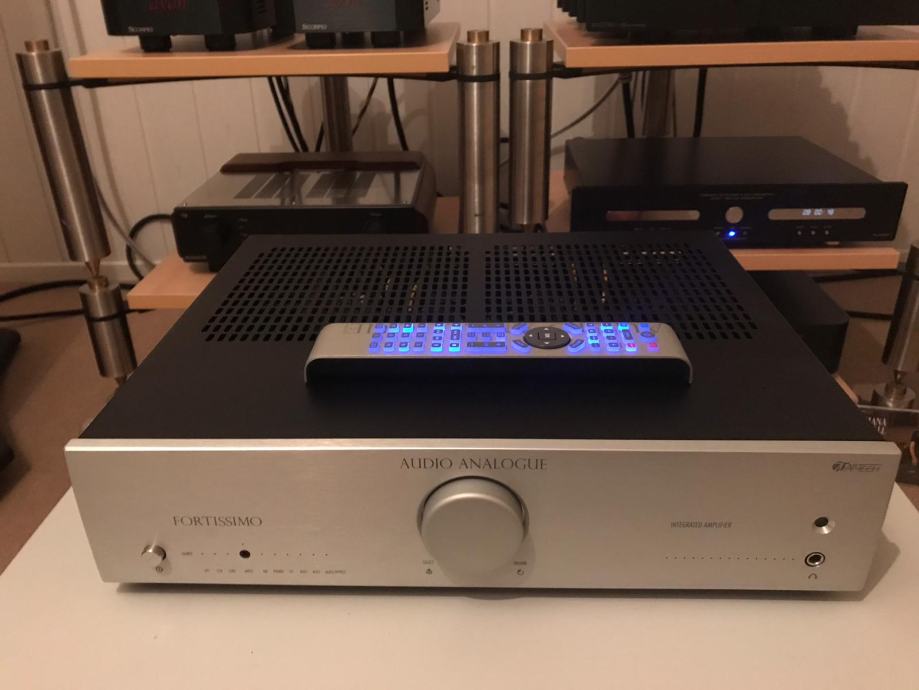

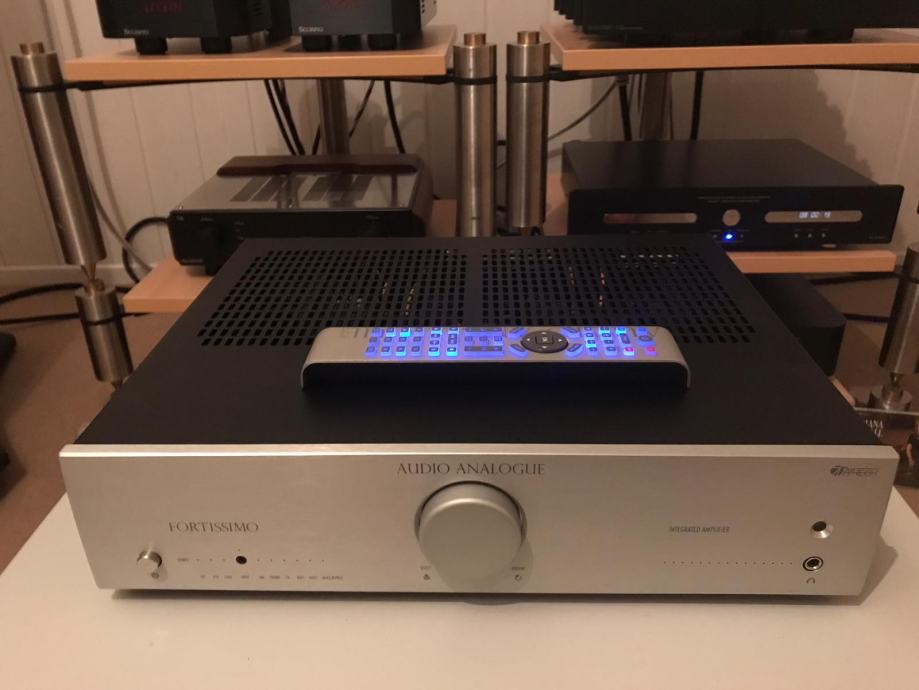

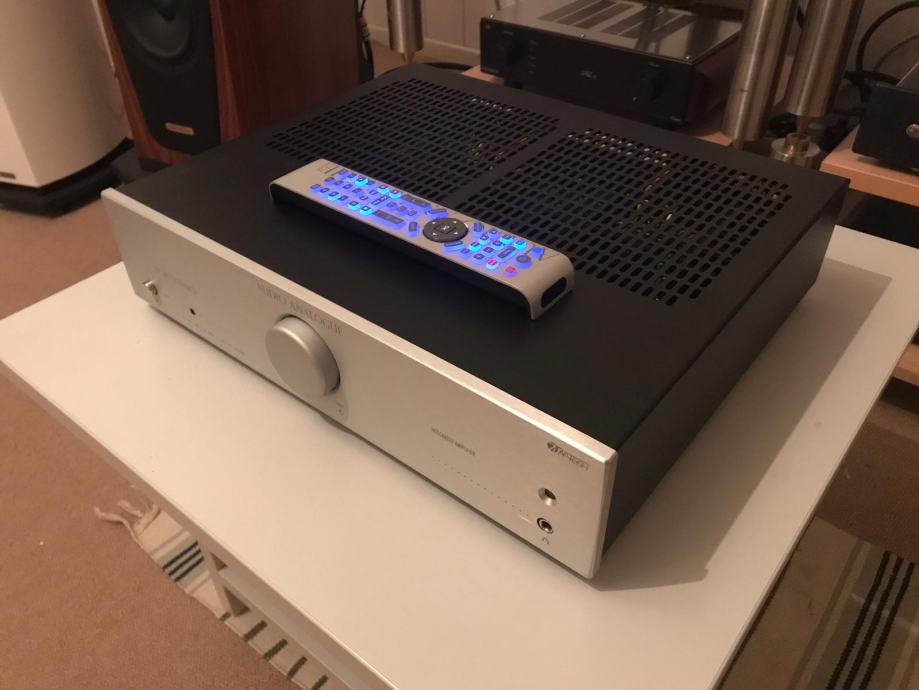

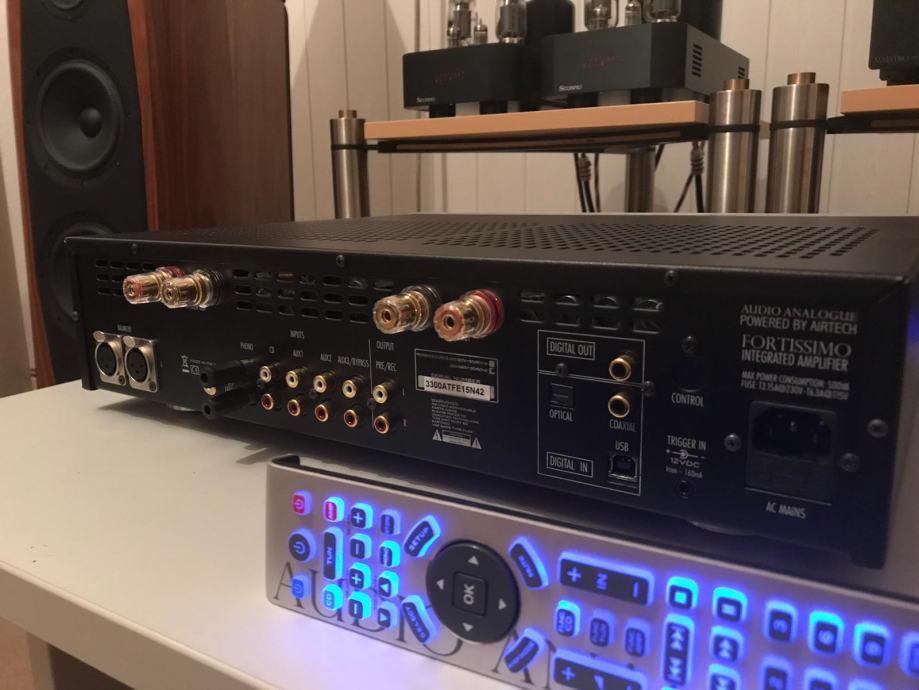

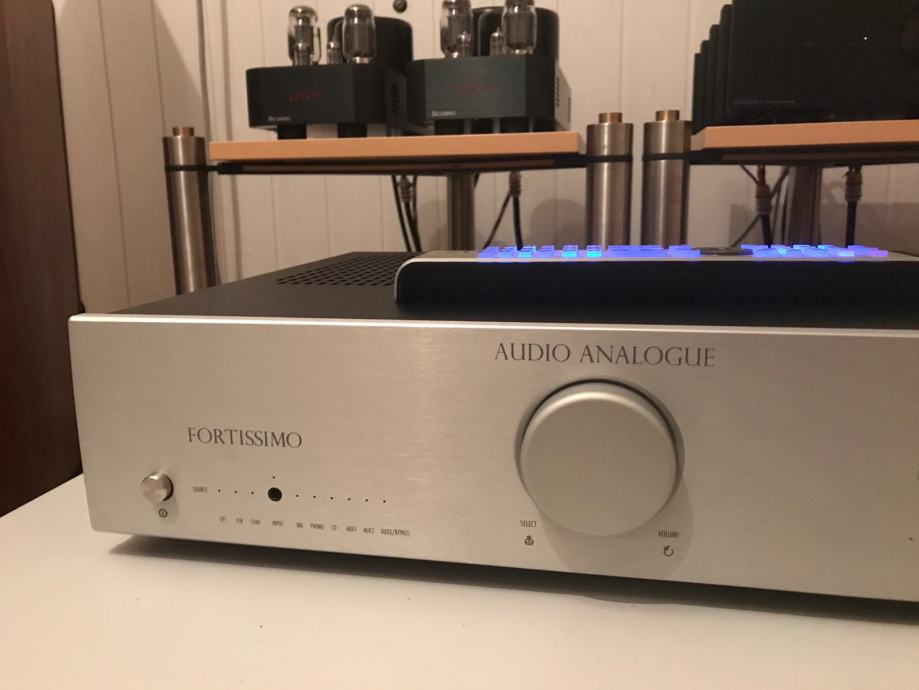

Integrirano pojačalo - DAC - MM/MC Phono by AUDIO ANALOGUE Fortissimo

MM/MC PHONO
INTEGRIRANO POJAČALO
DAC

AUDIO ANALOGUE made in Italy
Fortissimo

EX DEMO
GARANCIJA
STANJE: 5/5 mint
KOMPLETNA AMBALAŽA

Analogic power supply with toroidal transformer and two separate power lines: 1. Power amplifiers. 2. Power circuit pre-stage circuits and low signal. Separate power supply for each channel. Four layers main board to minimize the length of the tracks and avoid any interference between the circuits. Input selectors solid-state low-noise. Volume controls of the highest quality, Low noise and low distortion preamp section. Power stage with thermal track. Integrated electronic protections against overload and overheating prevention calibrated on the music signal for minimal interference with the sound performance. Configurable output or Pre-out or Rec-out. Headphone output. SPDIF digital output by the selected digital input. Optical digital input at 16-24 bits and sampling rates up to 108KHz settable into ByPass mode. ByPass gain mode configurable in the range of +/- 10dB. Coaxial digital input 16-24 Bits and sample rates up to 108KHz settable into ByPass mode. ByPass gain mode configurable in the range of +/- 10dB. Low noise and low distortion, balanced input. USB connection for USBDAC up to 16Bits/48KHz. MM and MC phono stage with configurable input impedance and gain. Line input on the front. 3 stereo RCA inputs. 1 RCA stereo input configurable in BY Pass mode. ByPass gain mode configurable in the range of +/- 10dB. RecUsb output signal pre-amplified.

Channels:
2
Input impedance:
60Kohm
Balanced Line input impedance:
20KOhm
Phono MM input impedance:
47K/47K-150pF
Phono MC input impedance:
100R/50R
Power on 8Ω load:
100W @ 0.015% THD + N
Power on 4Ω load:
180W @ 0.3% THD + N
Signal chain gain:
36 dB
Frequency Response(Att. 0dB, -3dB band):
120 KHz
Input Noise(Band limits 0Hz-80kHz/A-weighted):
< -110 dBV µV
SNR:
> 100 dB
Trigger IN:
12VDC
Dimensions(HxWxD):
117x445x390 mm
Weight:
13 Kg

MM/MC PHONO
INTEGRIRANO POJAČALO
DAC

AUDIO ANALOGUE -made in Italy
ArmoniA line
powered by AirTech
FORTISSIMO
--feel the emotion, listen to the difference--

CIJENA: 9.000 HRK
*Mogućnost zamjene za jeftiniju komponentu*

KONTAKT: 00385 98 227 602
E-MAIL: dado.audio@gmail.com
