Kazetofon Sansui SC-5100

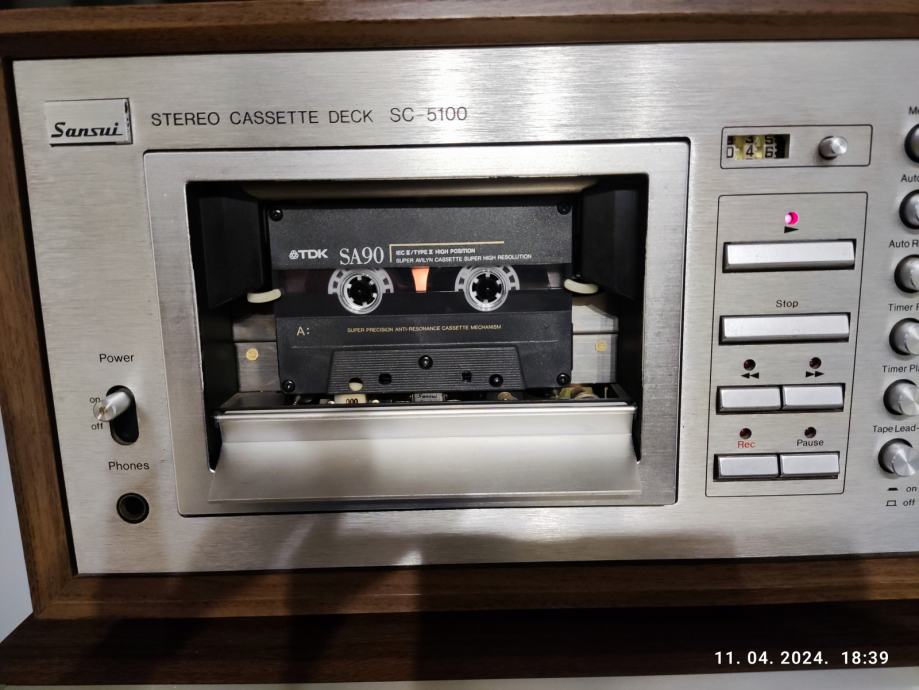

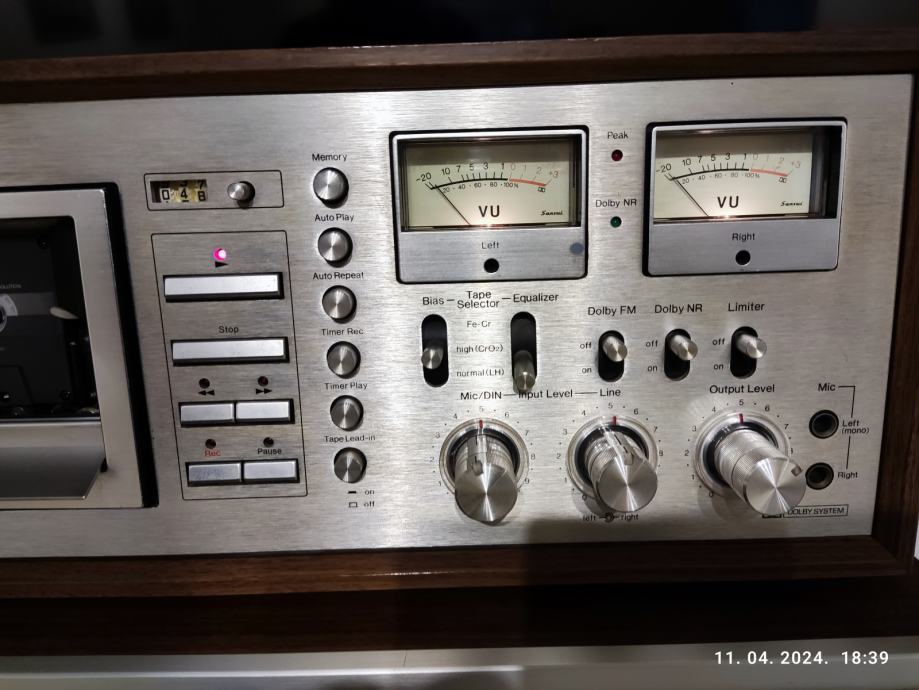

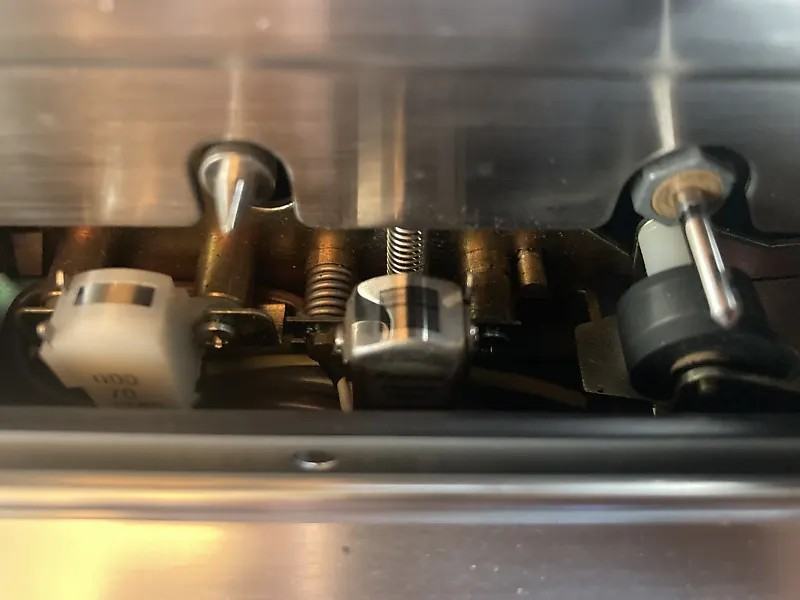

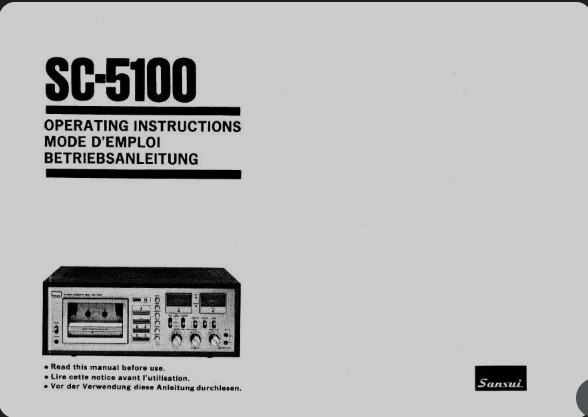

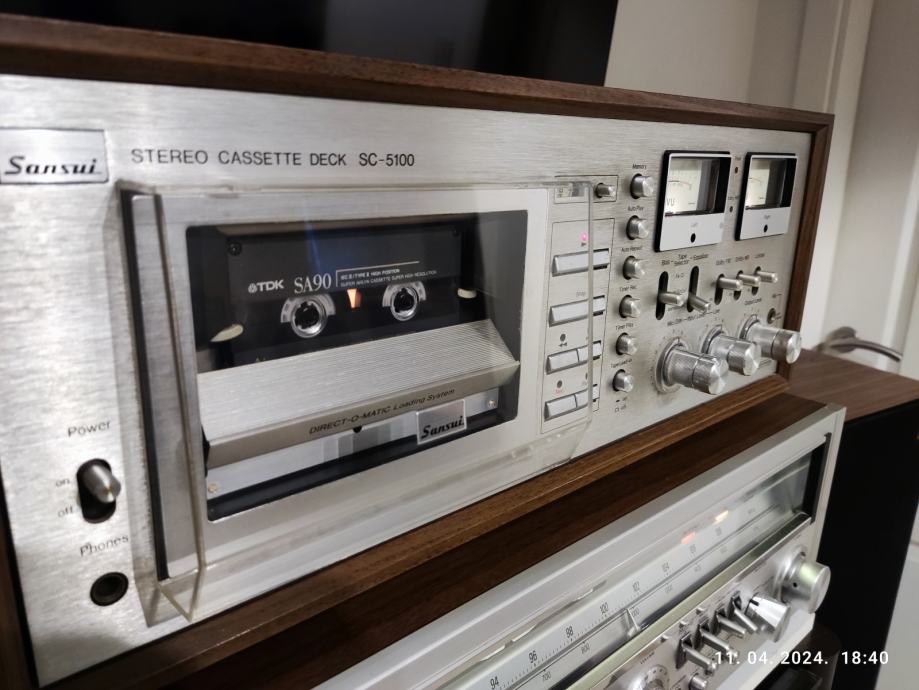

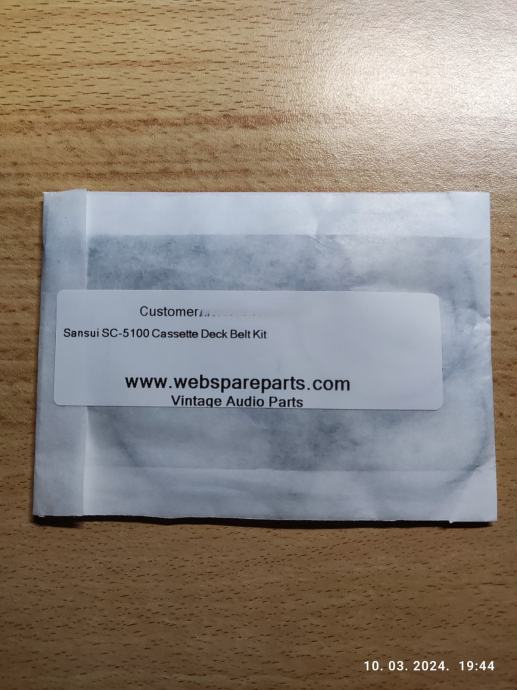

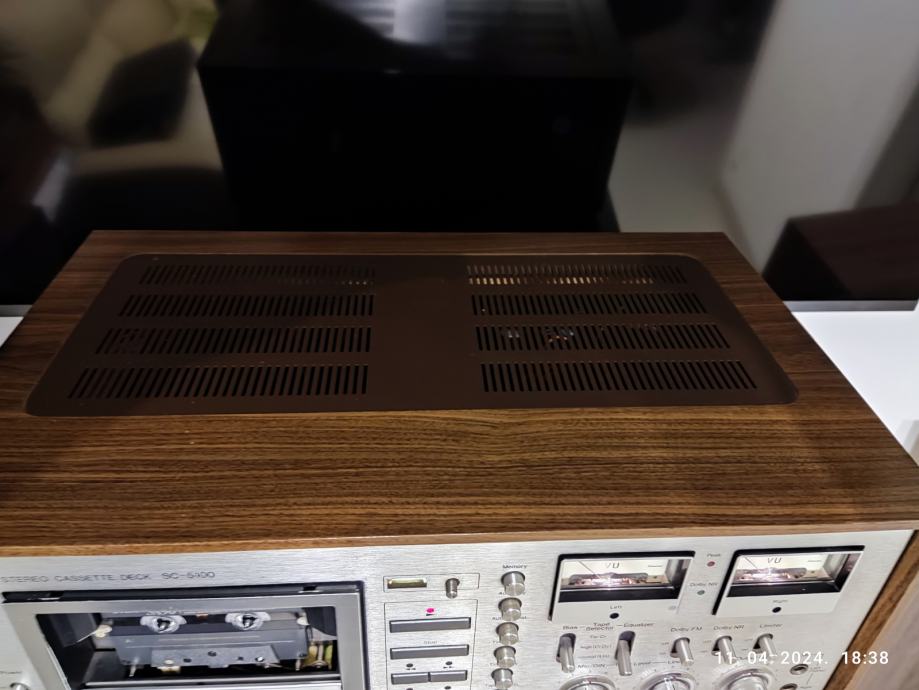

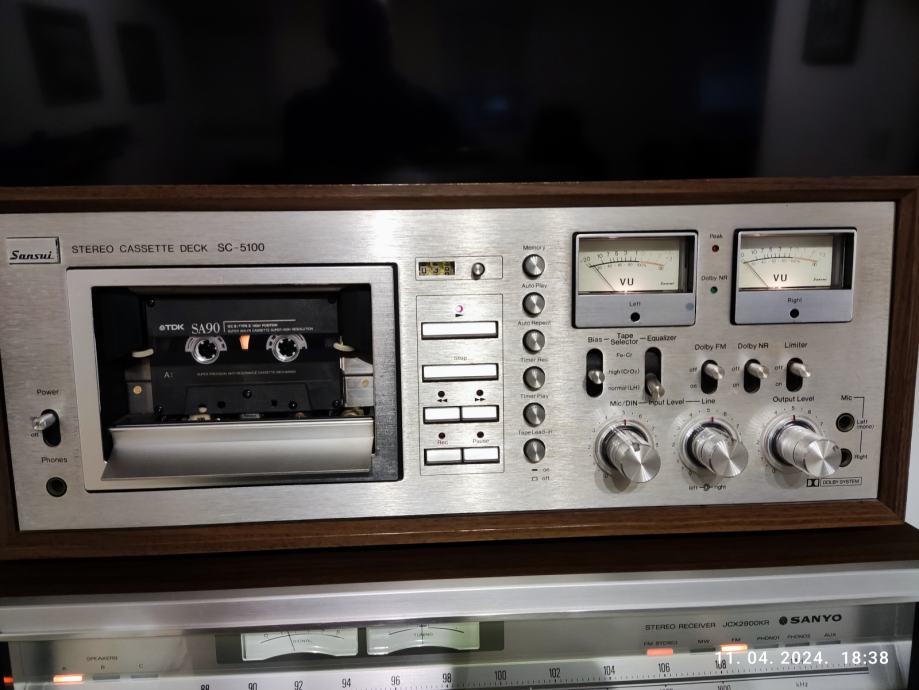

Prodajem potpuno ispravan hi-end vintage kazetofon Sansui SC-5100 u odličnom stanju (9/10) za svoje godine. Minimalni tragovi korištenja. Napravljen kompletan i kvalitetan servis, promijenjene gumice i remenje, novi idleri, kalibrirane i demagnetizirane glave, podešena i podmazana mehanika i VU-metri te očišćeni potenciometri. U kompletu s originalnom plastičnom zaštitom te priručnikom za servis (kopija). Cijene na europskom eBayu se kreće oko 1100 eura za ispravne primjerke. Kazetofon se može pogledati i poslušati u Zagrebu. Fotke su od kazetofona koji je na prodaju. Uz kazić dolaze servisni i korisnički priručnik. Ne šaljem poštom niti dostavnim službama.

Years of manufacture: 1977 - 1979
Made in: Japan
Color: Silver
Remote control: -
Power consumption: 50 W
Dimensions (WxHxD): 480 x 198 x 317 mm
Weight: 13,5 kg
Original price approx.: 600 US-$, 1'900 DM

Connections

Number of inputs:
Line In: 70 mV / 100 kOhm
DIN In: 0.2 mV / 4.7 kOhm
Microphone: 0,2 mV / 200-10.000 Ohm
Number of outputs:
Line Out adjustable: 400 mV
DIN Out adjustable: 400 mV

Headphones (6.3 mm jack): 100 mV / 8 Ohm

Technical data:

Audio heads: 2
1 × ferrite head for recording and playback
1 × ferrite head for erasing

Motor: 2
1 × FG servo DC for tape drive
1 × DC motor for reels
Tape speed: 4.8 cm/s
Synchronization fluctuation: 0.05 % WRMS
Tape types: I, II, III
Frequency response:
Normal I = 20-15,000 Hz
Chrome II = 20-17,000 Hz
Ferrochrome III = 20-17,000 Hz
Distortion Ratio:
Signal-to-noise ratio:
without Dolby: 57 dB
with Dolby: +5 dB at 1 kHz, +10 dB above 5 kHz
Crosstalk attenuation: 65 dB at 1 kHz
Cancellation attenuation: >60 dB
Premagnetization and erasure frequency: 85 kHz
Rewind time: 60 seconds for C-60
