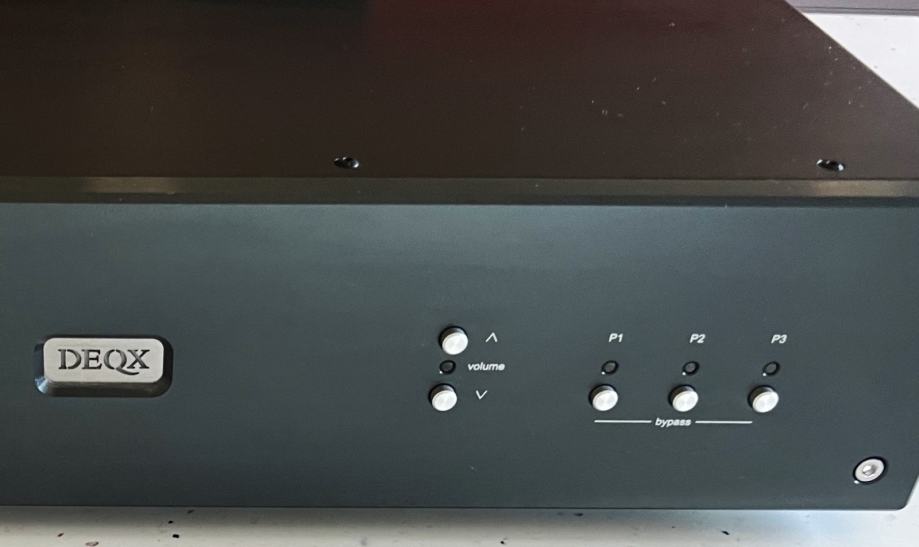

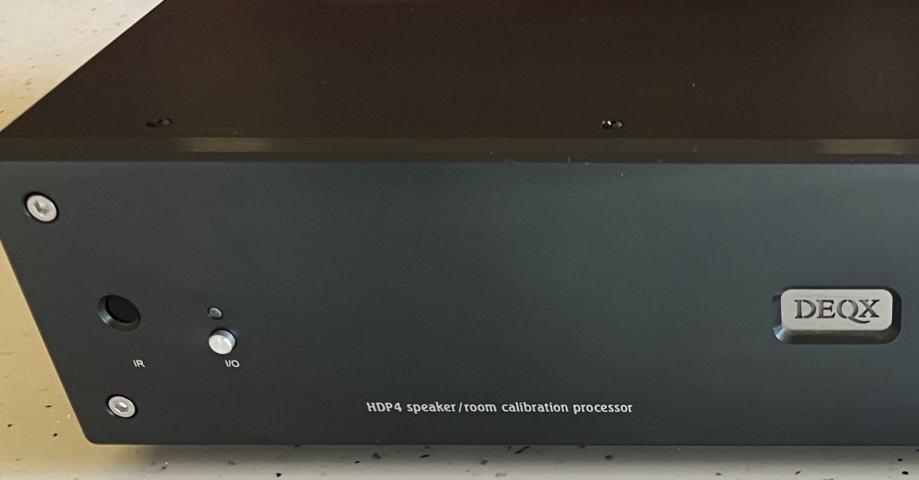

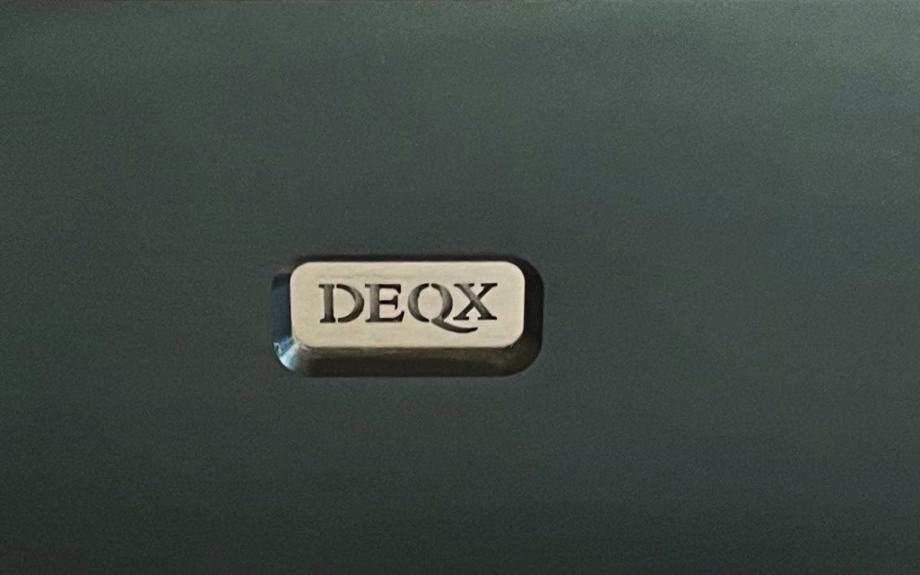

DEQX HDP-4

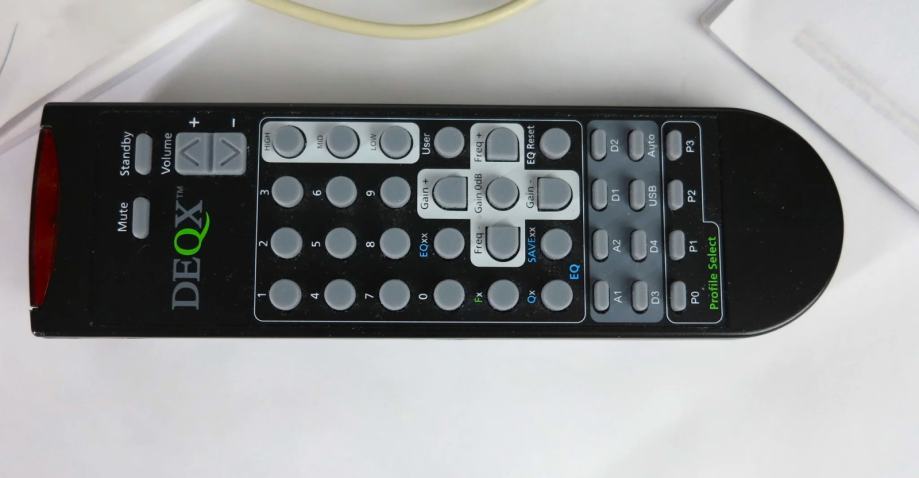

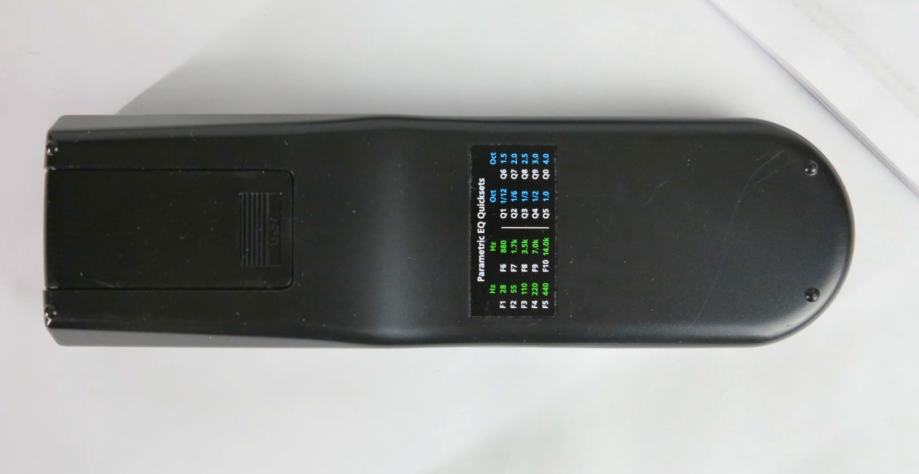

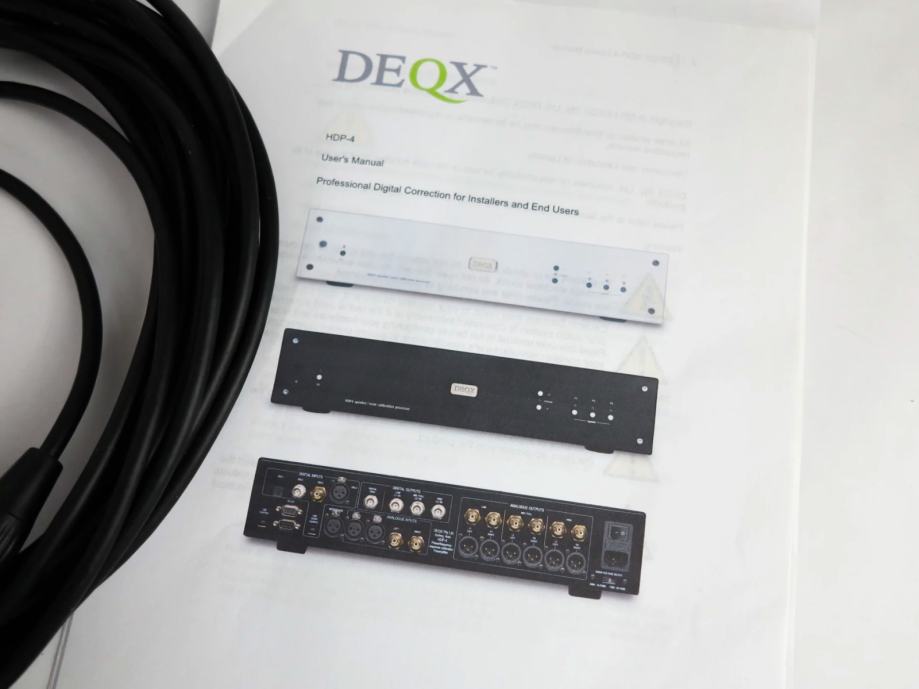

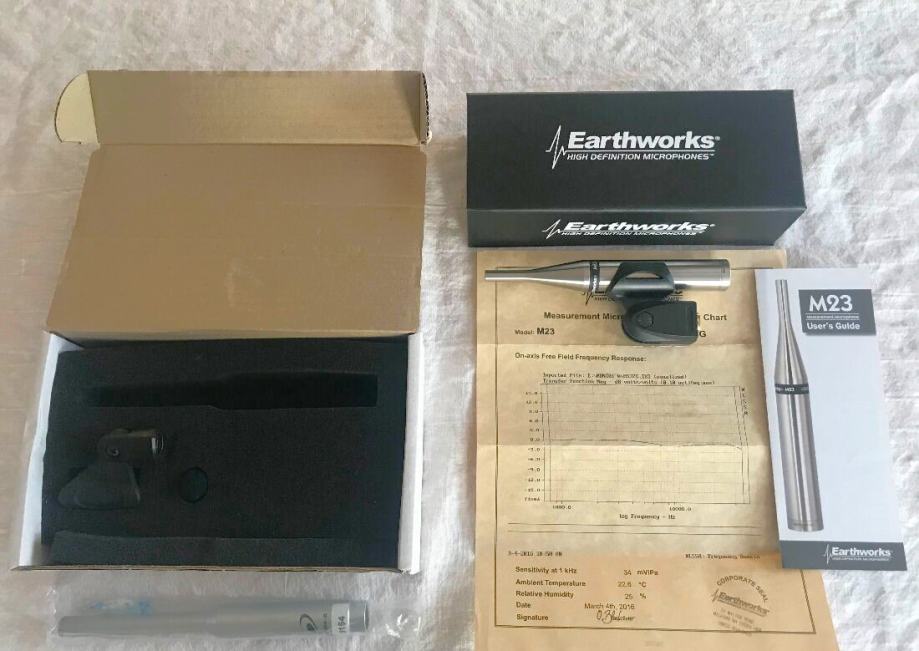

U ponudi je DEQX HDP-4 24/192k sa svim mogućim nadogradnjama , s dva mjerna mikrofona , kompletnim priborom i uputama .
Moguća je kupovina putem paypala .

OSNOVNE TEHNIČKE ZNAČAJKE

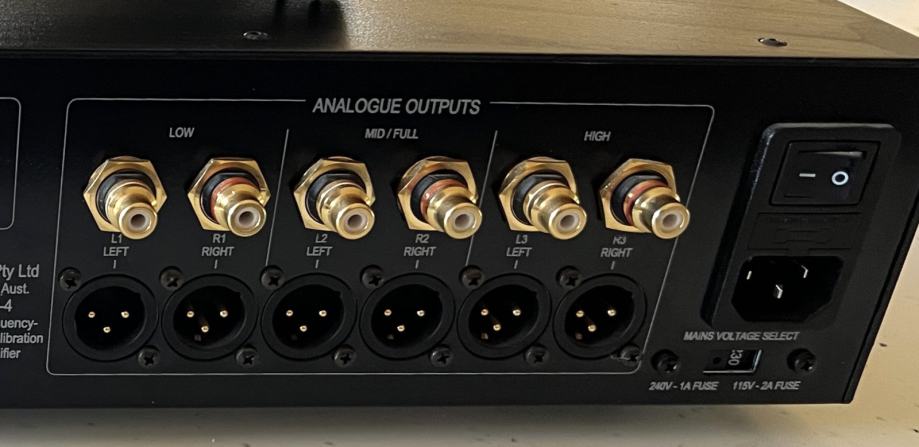

Analog inputs and outputs Balanced Unbalanced
Full scale input level 17 dBu / 5.5 Vrms 9.3 dBu / 2.25 Vrms*1
Input impedance 50 kΩ 50 kΩ
Full scale output level 17.4 dBu / 5.7 Vrms*1 10.8 dBu / 2.7 Vrms*1
Output impedance 600 Ω 75 Ω
Total harmonic distortion 0.0008% 0.0008%
*1. Factory default setting. Jumper-settable, see User Manual for full details.

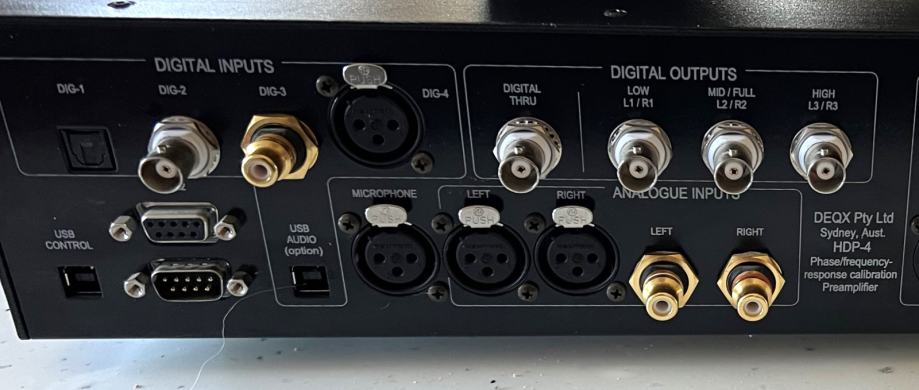

Digital audio inputs TOSLINK (optical) 24-bit, 44.1 to 96 kHz
S/PDIF (BNC) 24-bit, 44.1 to 192 kHz, 75Ω
S/PDIF (RCA) 24-bit, 44.1 to 192 kHz
AES/EBU (XLR) 24-bit, 44.1 to 192 kHz, 110Ω
USB Audio Asynchronous USB Audio Class 2, 24-bit, 44.1 to 192 kHz
Digital audio outputs Digital Through 24-bit, 96 kHz S/PDIF on 75Ω BNC connector. Same as selected input, with no filtering or gain applied. Used for master-slave confgurations.
Digital Low 24-bit, 96 kHz S/PDIF on 75Ω BNC connector. Follows analog "Low" speaker output (with filtering and gain).
Digital Mid 24-bit, 96 kHz S/PDIF on 75Ω BNC connector. Follows analog "Mid" speaker output (with filtering and gain).
Digital High 24-bit, 96 kHz S/PDIF on 75Ω BNC connector. Follows analog "High" speaker output (with filtering and gain).
Audio processing including HD-Active™ Crossover slope 48 to 300 dB/octave (linear phase)
6 to 96 dB/octave (Linkwitz-Riley and Butterworth)
Crossover frequency 22 to 18,340 Hz
Amplitude correction Better than 0.2 dB, typical (depends on measurement accuracy)
Group delay correction 0.5 ms, typical (depends on measurement accuracy)
Subwoofer crossover From 6 Hz, 24 to 120 dB/octave*2
Processing latency Typically 15 ms depending on filters, minimum 2.5 ms
Room EQ Seven or ten bands, 1 Hz to 48 kHz, −300 to +40 dB, Q 0.01 to 17
Preference EQ Three bands, 20 Hz to 20 kHz, gain to +/−9 dB, Q 0.5 to 10
DSP resolution > 140 dB
