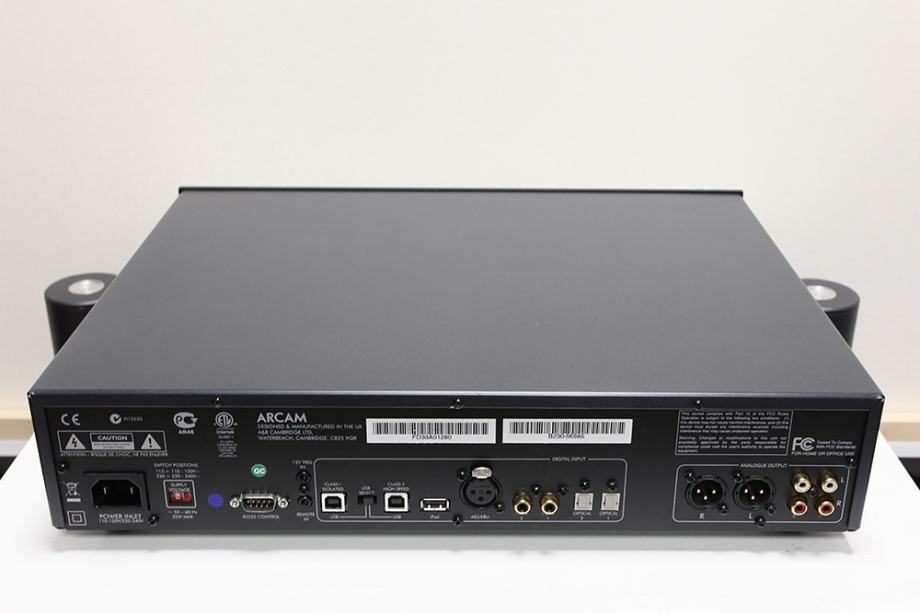

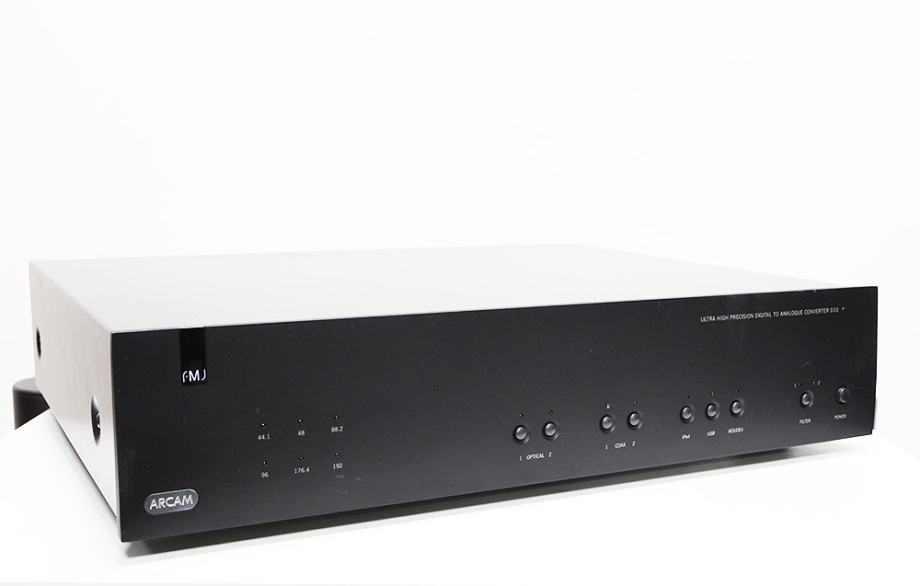

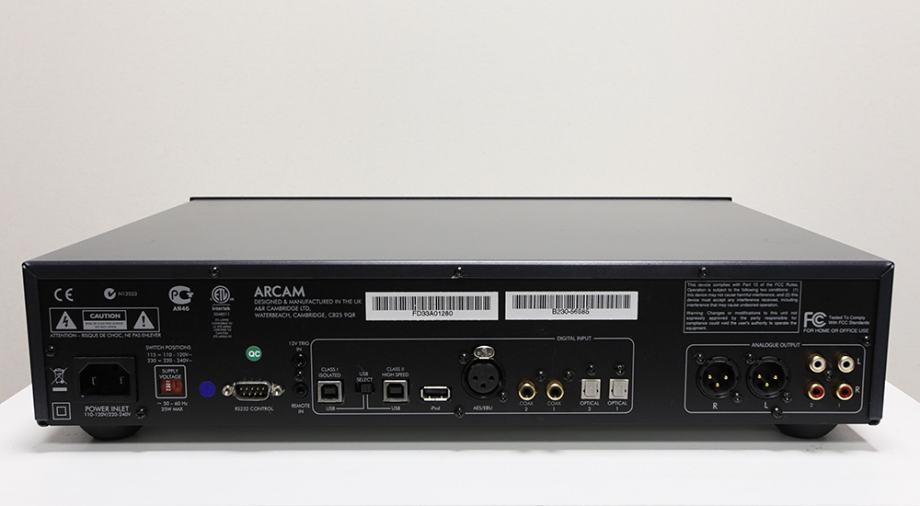

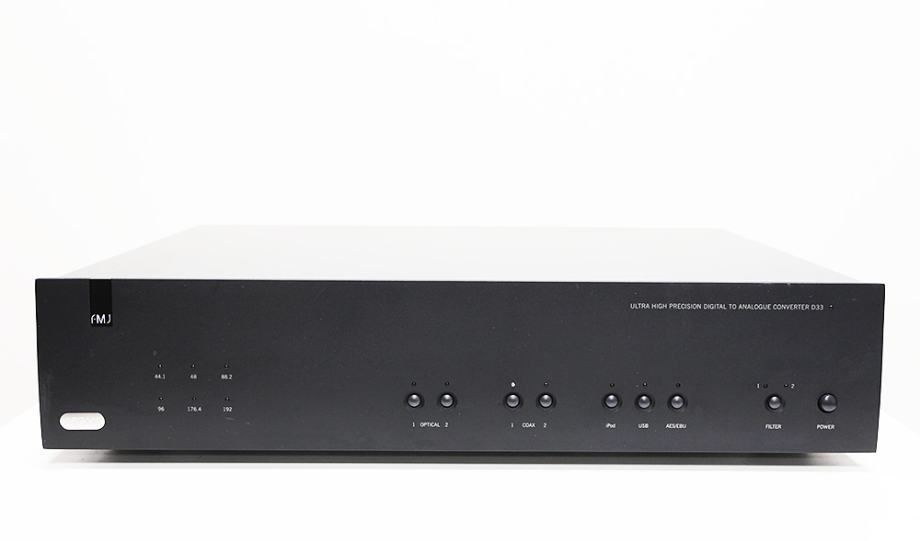

Arcam FMJ D33 DAC
- Cijena
- 729,98 €
+ zaštita kupca 29,20 €
+ dostava 4,00 €
Kupi uz dostavu od 0,00 €
Putem BOX NOW paketomata
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 37714976
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- rabljeno
Opis oglasa
TECHNICAL SPECIFICATIONS:
Analogue Audio Output
Conversion 2x Burr Brown 24-bit 192kHz Advanced Segment Delta-Sigma
Signal to noise ratio > 110dB CCIR (unweighted)
Harmonic distortion (1kHz) 0.0008% (20Hz — 20kHz, unweighted)
Frequency response (+0.1dB, -0.5dB) 10Hz–20kHz
Filtering User selectable, fast or slow roll-off
Output level (0dB) 2.2Vrms
Output impedance 47Ω
Minimum load 5kΩ
Digital interfaces
USB Class 1 electrically-isolated USB 1.1
Class 2 USB 2.0 High Speed (480 Mbit/s)
AES/EBU Up to 192kHz sample rate
Coaxial S/PDIF x 2 Up to 192kHz sample rate
Optical S/PDIF (TOSLINK) x 2 Up to 96kHz sample rate Computer compatibility
PC Windows 7, Vista & XP (driver required for 24/192 material)
MAC OSX (no driver required)
Physical
Dimensions W433 x D370 x H110mm
Weight 6.2kg nett/10.0kg packed
Power consumption 30W maximum
Analogue output connection RCA Phono x 2, Balanced XLR x2
Analogue Audio Output
Conversion 2x Burr Brown 24-bit 192kHz Advanced Segment Delta-Sigma
Signal to noise ratio > 110dB CCIR (unweighted)
Harmonic distortion (1kHz) 0.0008% (20Hz — 20kHz, unweighted)
Frequency response (+0.1dB, -0.5dB) 10Hz–20kHz
Filtering User selectable, fast or slow roll-off
Output level (0dB) 2.2Vrms
Output impedance 47Ω
Minimum load 5kΩ
Digital interfaces
USB Class 1 electrically-isolated USB 1.1
Class 2 USB 2.0 High Speed (480 Mbit/s)
AES/EBU Up to 192kHz sample rate
Coaxial S/PDIF x 2 Up to 192kHz sample rate
Optical S/PDIF (TOSLINK) x 2 Up to 96kHz sample rate Computer compatibility
PC Windows 7, Vista & XP (driver required for 24/192 material)
MAC OSX (no driver required)
Physical
Dimensions W433 x D370 x H110mm
Weight 6.2kg nett/10.0kg packed
Power consumption 30W maximum
Analogue output connection RCA Phono x 2, Balanced XLR x2
