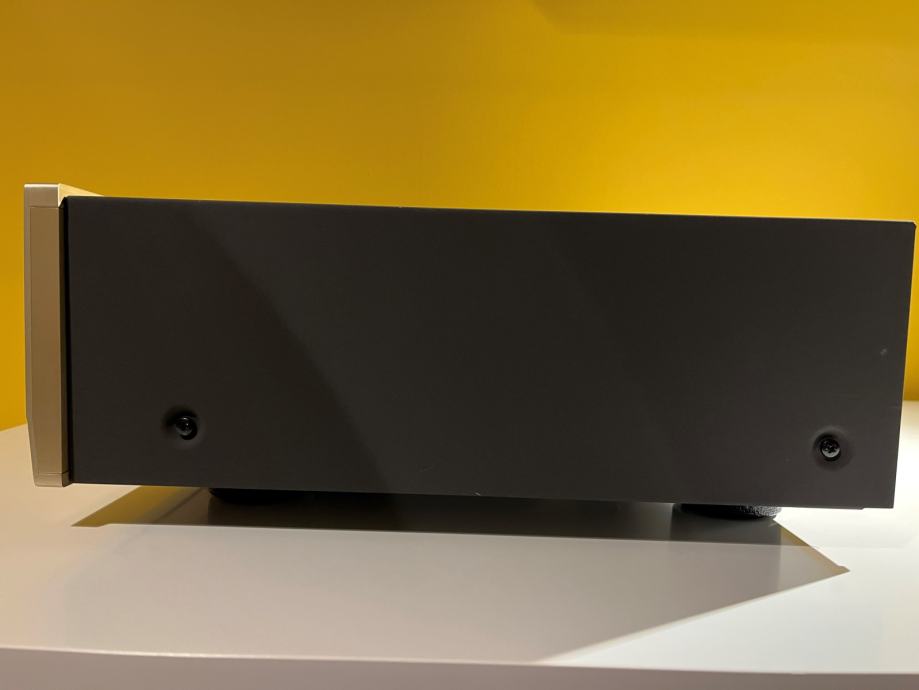

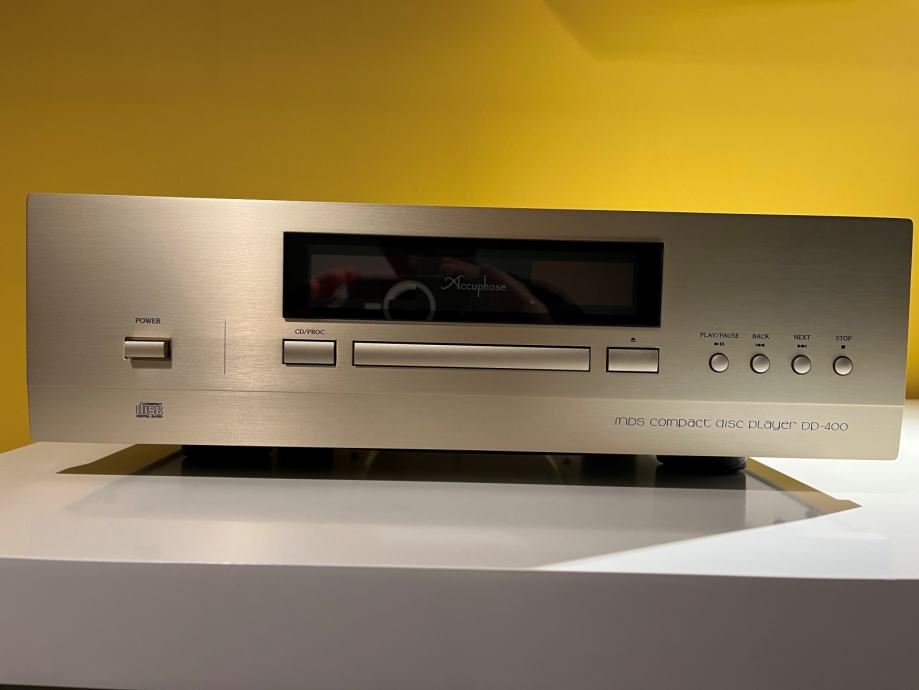

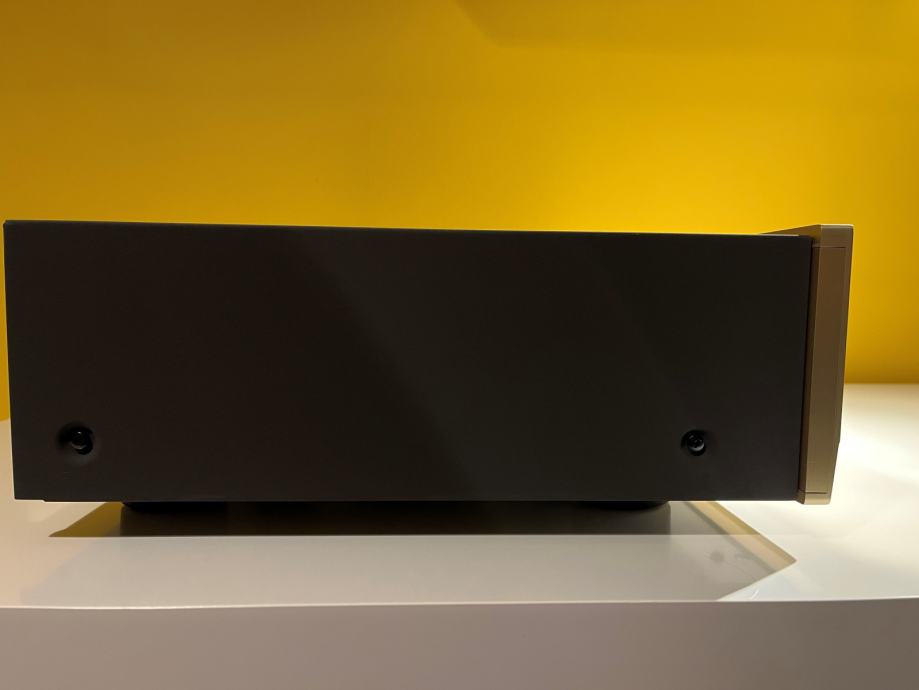

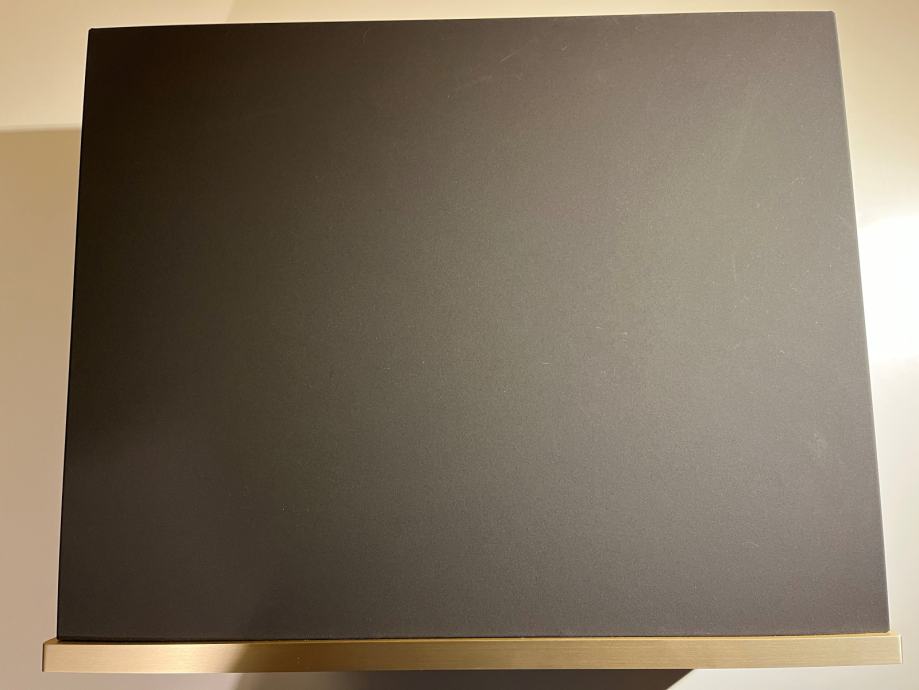

Accuphase DP-400 CD Player

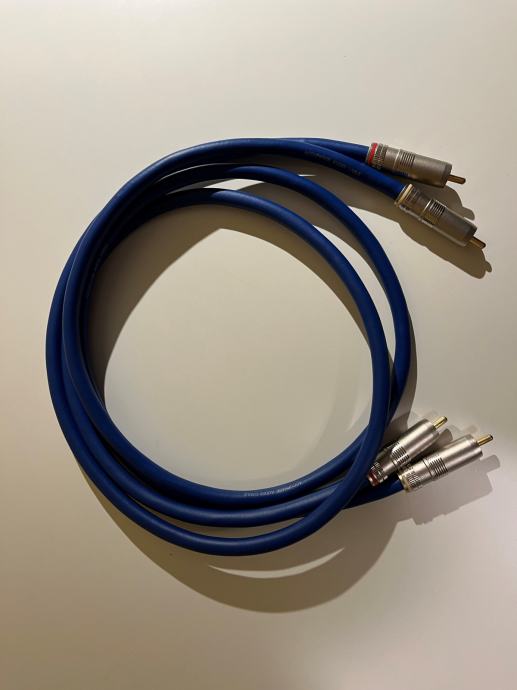

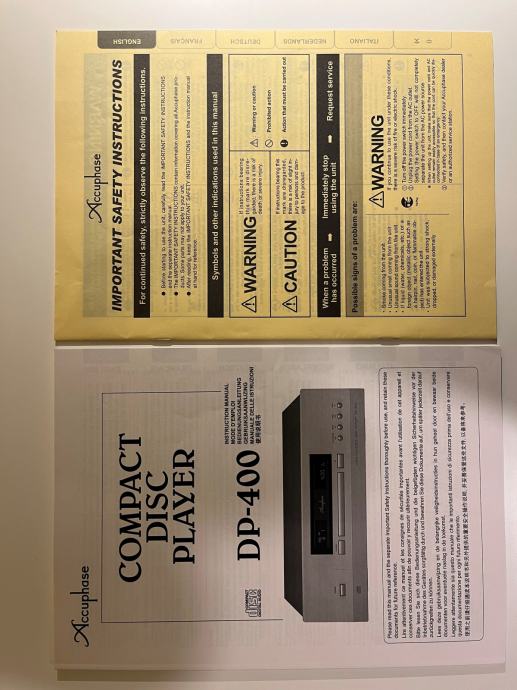

+ Accuphase RCA kablovi + Accuphase RC100 daljinski + Upute + originalna ambalaža
Dedicated CD Player with high-precision drive — High-quality disc tray made from extruded aluminum, combined with ultra quiet and smooth loading mechanism. Processor section features further refi ned MDS++ type D/A converters. Fully separate transport and processor section, with coaxial and optical transport outputs and digital inputs, allowing easy insertion of DG-48 into signal path for sound fi eld correction in the digital domain.
High-precision CD drive, high-quality CD tray, and ultra quiet and smooth loading mechanism
MDS++ D/A converters and low-pass "Direct Balanced Filter" with totally separate balanced and unbalanced signal paths
Two sets of transport outputs and digital inputs allow insertion of DG-48 into signal path for sound field correction

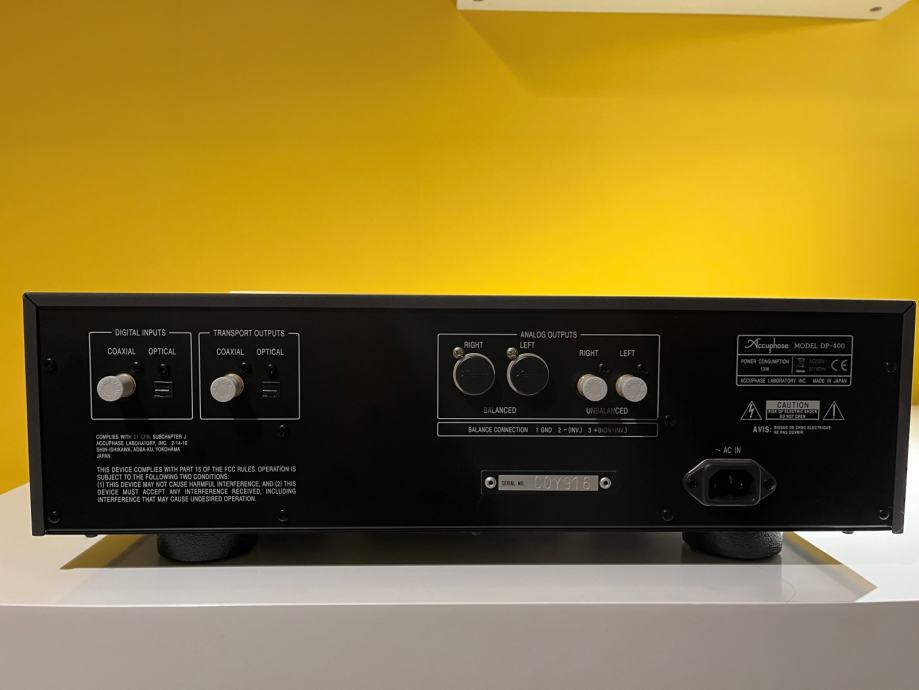

Balanced and unbalanced analog outputs

https://www.accuphase.com/cat/dp-400_e.pdf

Guaranteed specifications are measured according to the JEITA standard CP-2402A.
* Measurement disc: JEITA CP-2403A compliant
CD TRANSPORT
Standard CD format
Quantization: 16 bits
Sampling frequency: 44.1 kHz
Error correction principle: CIRC
Number of channels: 2
Revolution speed: 500–200 rpm (CLV)
Scan velocity: 1.2–1.4 m/s, constant
Data read principle Non-contact optical pickup
Laser GaAlAs (double hetero-junction visible-spectrum semiconductor laser diode)
Transport output level
COAXIAL (IEC 60958): 0.5 Vp-p, 75 ohms
OPTICAL (JEITA CP-1212): Light output –21 to –15 dBm Wavelength 660 nm
DIGITAL PROCESSOR
Input format (IEC 60958/AES-3 compliant)
Quantization: 16–24 bits, linear
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Digital input level
COAXIAL (IEC 60958): 0.5 Vp-p, 75 ohms
OPTICAL (JEITA CP-1212): Light output –27 to –15 dBm
Frequency response 4 to 20,000 Hz ±0.3 dB
D/A converter 24 bits, MDS++ type
Total harmonic distortion Max. 0.001% (20–20,000 Hz, 24-bit input)
Signal-to-noise ratio 114 dB or better
Dynamic range 110 dB or better
Channel separation 110 dB or better
Output voltage and impedance
BALANCED: 2.5 V into 50 ohms, balanced XLR type
UNBALANCED: 2.5 V into 50 ohms, RCA-type phono jacks
Output level control 0 to –60 dB in 1-dB steps (digital type)
General
Power requirements AC120 V/230 V, 50/60 Hz (Voltage as indicated on rear panel)
Power consumption 13 W
Max. dimensions Width 465 mm (18-5/16”)
Height 150 mm (5-7/8”)
Depth 393 mm (15-1/2”)
Mass 13.6 kg (30.0 lbs) net 20.0 kg (44.1 lbs) in shipping cartion

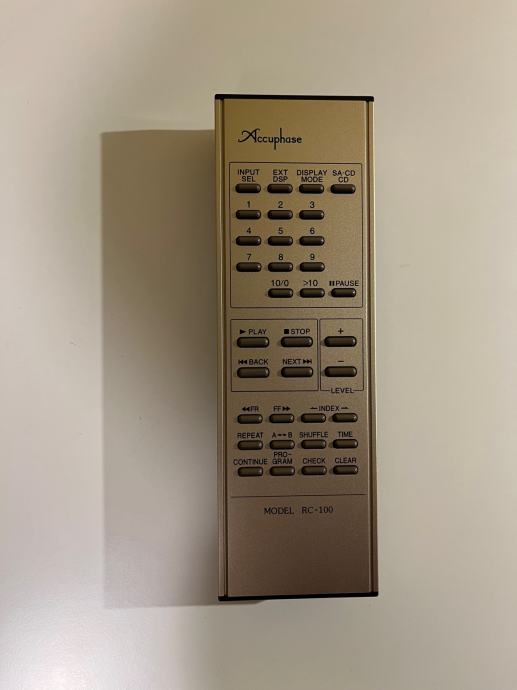

Supplied Remote Commander RC-100
Remote control principle: Infrared pulse
Power supply: Two IEC R03 (size AAA) batteries
Max. dimensions: 56 mm × 175 mm × 26 mm
