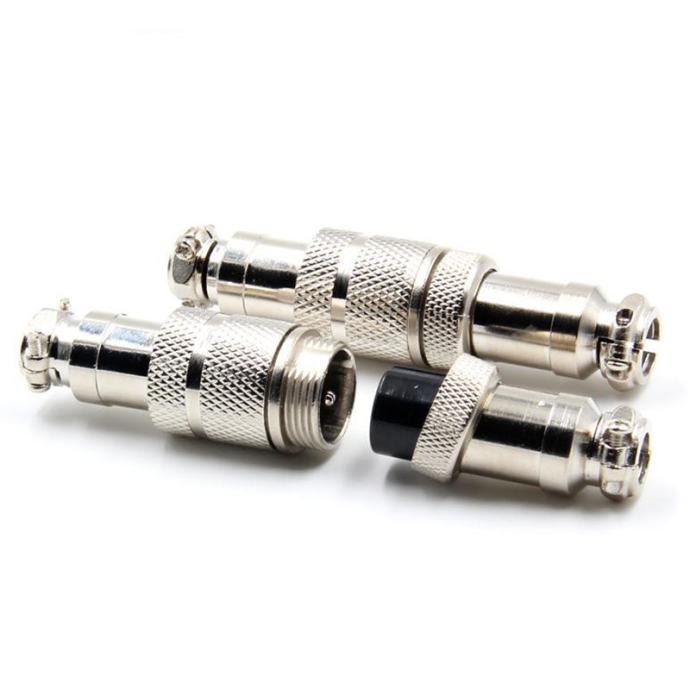

Konektori GX16 2-3-4-6 pinski METALNI M/Ž avio konektor

Konektori metalni GX16 set muškog i ženskog konektora za struje do 5A i do 400V.. Odličan izbor ako trebate odvojivi spoj.
Konektori se na vodove pričvršćuju mekim lemljenjem. Specifikacije su na fotografijama.

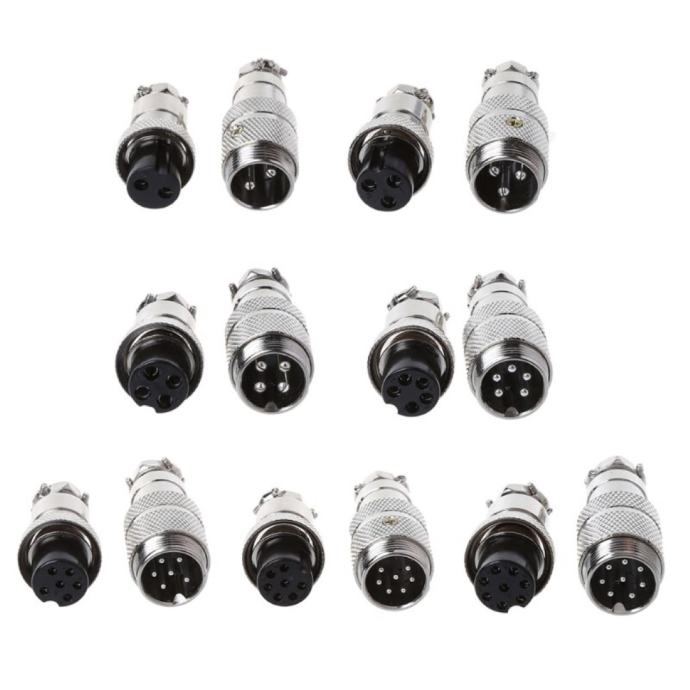

Dostupni su slijedeći modeli:
2 pinski
3 pinski
4 pinski
6 pinski

1 set sadrži muški i ženski konektor.

Slanje robe je na trošak kupca dostavom po izboru
trošak je 5 kn običnom poštom i avansno plaćanje na račun
15kn za preporučeno slanje poštom i avansno plaćanje na račun
ili 28kn za preporučeno slanje i plaćanje pouzećem
GLS slanje 45kn na račun 55kn pouzećem
Oversease slanje 35kn na račun ili 40kn pouzećem

U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Features:

Made of soild material, more durable.

One set which includes one male and one female Connector.

Straight and unshielded type, P series circular connector

Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc.

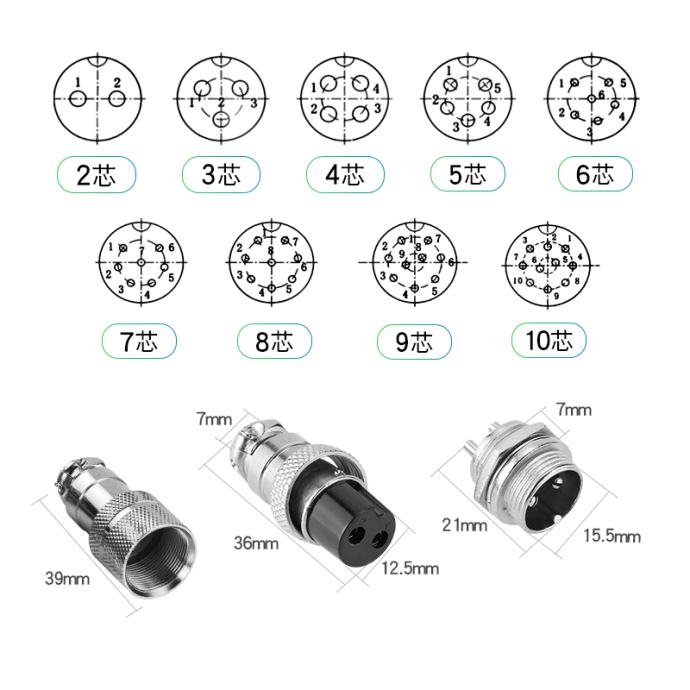

Specifications:

Rated voltage: 2 pin 3 pin 4 pin is 400V, 5 pin 6 pin 7 pin 8 pin is 250V

Rated current: 5A

Contact resistance: The contact resistance of each contact pair is not greater than 0.005 oh

Environment Temperature: -50~+70℃.

Relative Humidity: The temperature is + 40 ℃ could reach 98%.

Insulation Resistance:Normal conditions no less than 1000 m Ω, Not less than 200 m Ω after the constant temperature test.

Testing Voltage: (50 Hz, RMS) Normal conditions 1500V, After constant temperature test 1200V.

Atmospheric Pressure: 4.4kpa.

Vibration: frequency is 10 ~ 100 Hz,accelerated speed is 100 m/s2.

Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2.

Centrifugal: Acceleration is 250 m/s2.

Type: 2/3/4/5/6/7/8 pin

Material: Metal

Color: silver
